Lisslune | VM5G 1200Mbps 2.4GHz & 5GHz Dual Band WiFi Module with 4 Antennas, supports IP layer / MAC layer transparent transmission, applied to Repeater / Bridge & AP & Remote Video Transmission
Regular price£150.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
Support-Routing Mode and Bridge Relay Mode:
1. In Routing Mode, access to WiFi WAN is enabled.
2. Routing Mode allows for toggling between WAN/LAN on wired network connections.

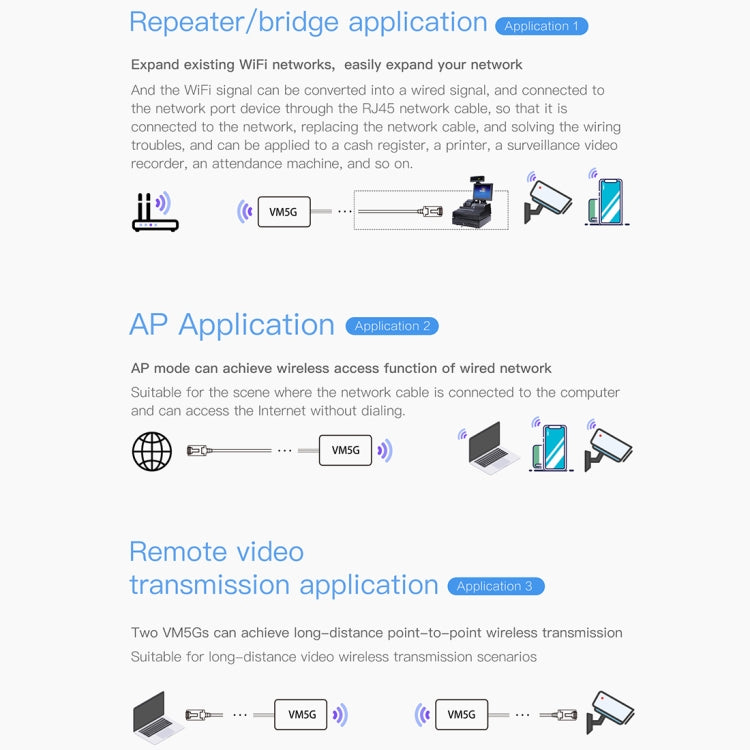

3. It offers smart WiFi bridge relays, facilitating both wireless-to-wired and wired-to-wireless communication.
4. Compatible with WiFi transmission standards, such as 802.11ac, 802.11a, and 802.11n.
5. The system supports transparent data communication via UART/UDP.
6. Automatically reconnects to WiFi hotspots with two mapping configurations: Full Authentication Mode and SSID/Password Authentication Mode.
7. Capable of retaining up to 10 WiFi hotspots.
8. Can simultaneously connect over 20 WiFi-enabled devices.
9. Incorporates SSA protocol to assess and relay hotspot signal strength for WiFi mobile positioning.
10. Provides the option to force shutdown hotspots and execute hardware shutdowns of WiFi.
11. Features options for importing and exporting hotspot connection settings.
12. Utilizes VDNS technology to set up virtual domain names, easing user configuration complexities.
13. With WEB management, it is easy to switch between configuration settings available in Chinese and English.
14. Supports online updates.

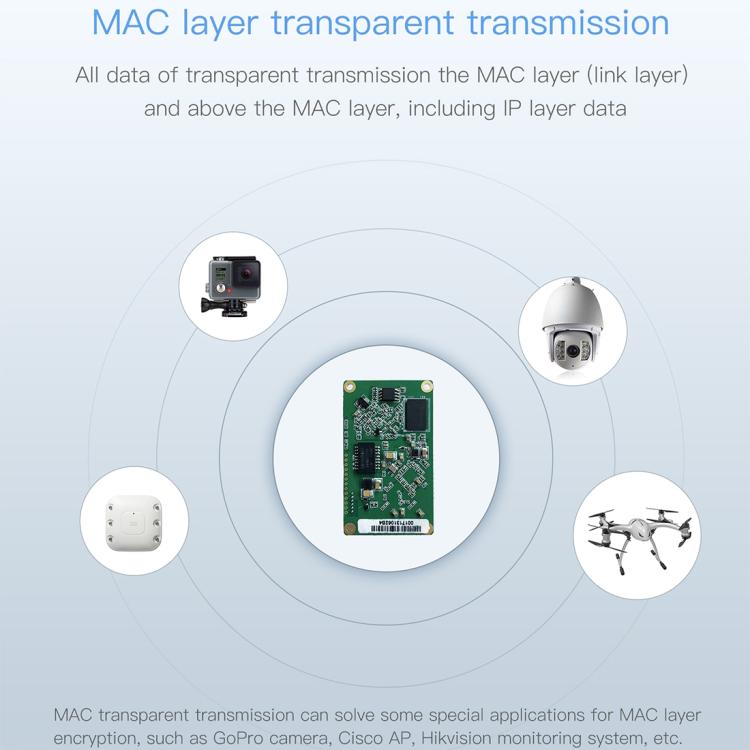

15. IP Transparent Transmission and MAC Transparent Transmission are available in two Bridge modes for different bridging scenarios. The IP Transparent Transmission (the factory default) allows for seamless IP data transfer, ideal for most bridging situations; whereas the MAC Transparent Transmission ensures a transparent transfer of the MAC layer alongside all upper layer data, which includes IP data. The MAC passthrough function can accommodate specific applications involving MAC layer encryption, such as those seen in GoPro cameras, Cisco APs, and Hikvision surveillance systems.
Features:

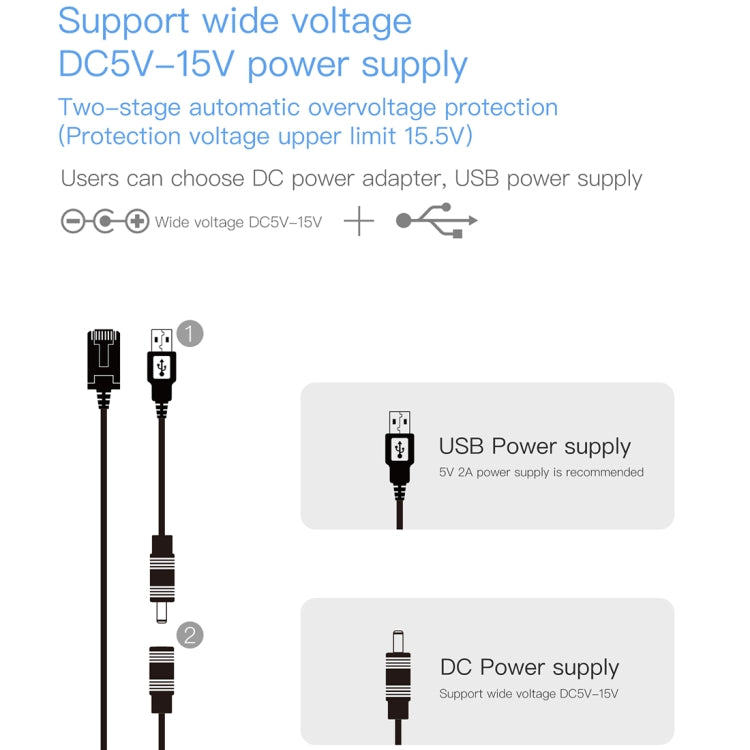

1. Accommodates a wide voltage DC5-15V power supply with dual-stage automatic overvoltage safeguard (Maximum protection voltage limit of 15.5V).
2. The output from the power supply is a minimum of 10W (standard power supply 5V/2A, Ripple below 100mV).
3. Power consumption for the module varies from 1.3W to 3.75W.
4. WiFi operating frequency bands: 2.4G + 5G.

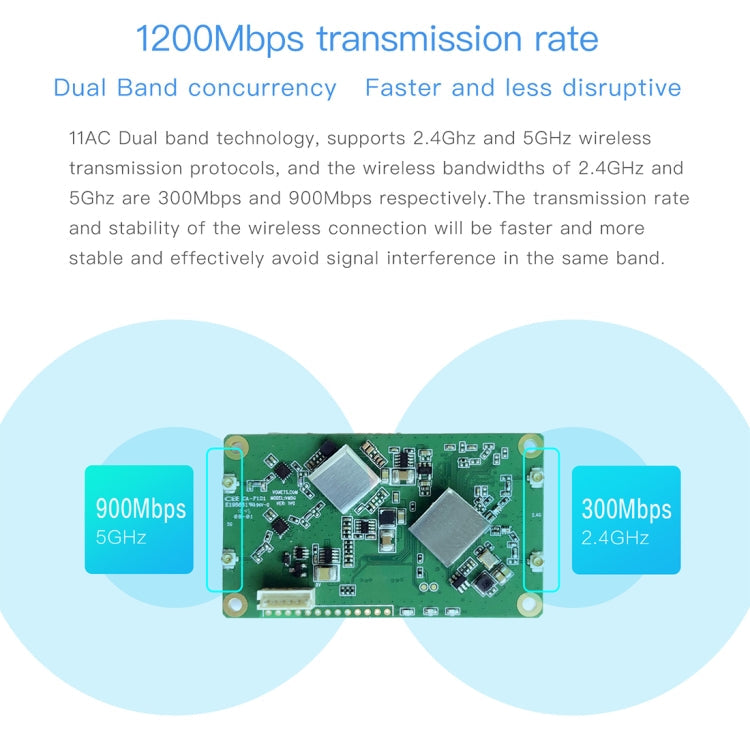

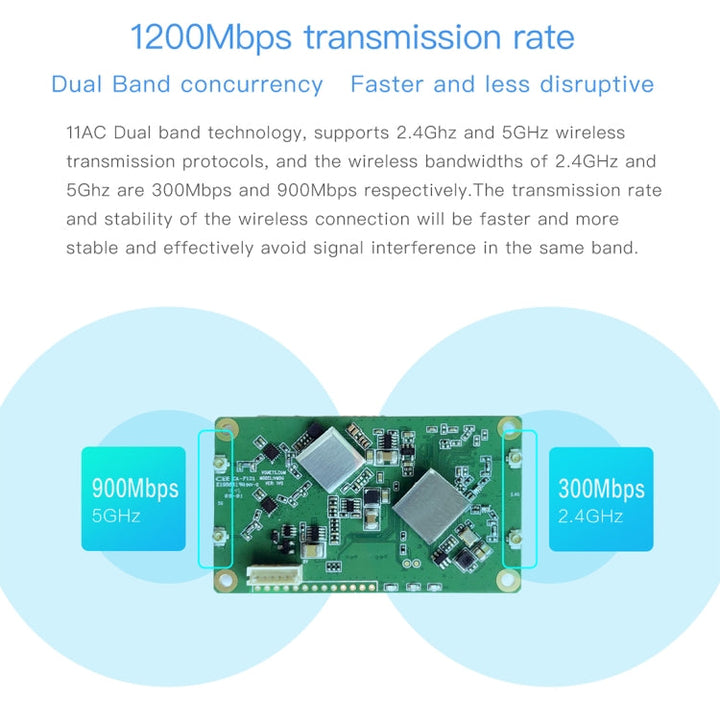

5. Wireless data transfer rate: 300Mbps (2.4G) + 900Mbps (5G).
6. Transmission power: 14.5dBm for 2.4G and 19dBm/23dBm for 5G.

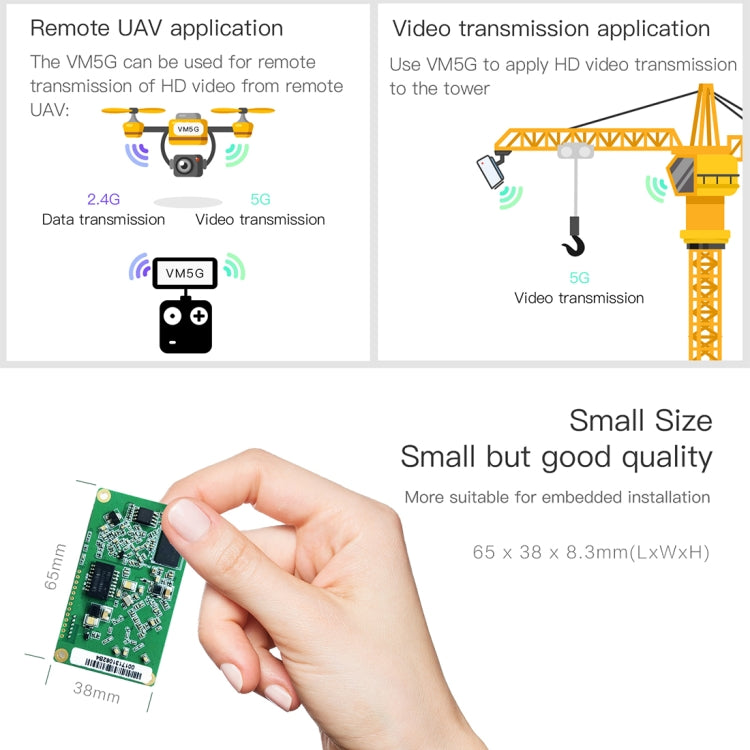

7. Maximum point-to-point transmission distance without obstructions: 700 meters (5G band).
8. The module features an integrated low-noise amplifier (LNA) with a reception sensitivity of 14dBi.

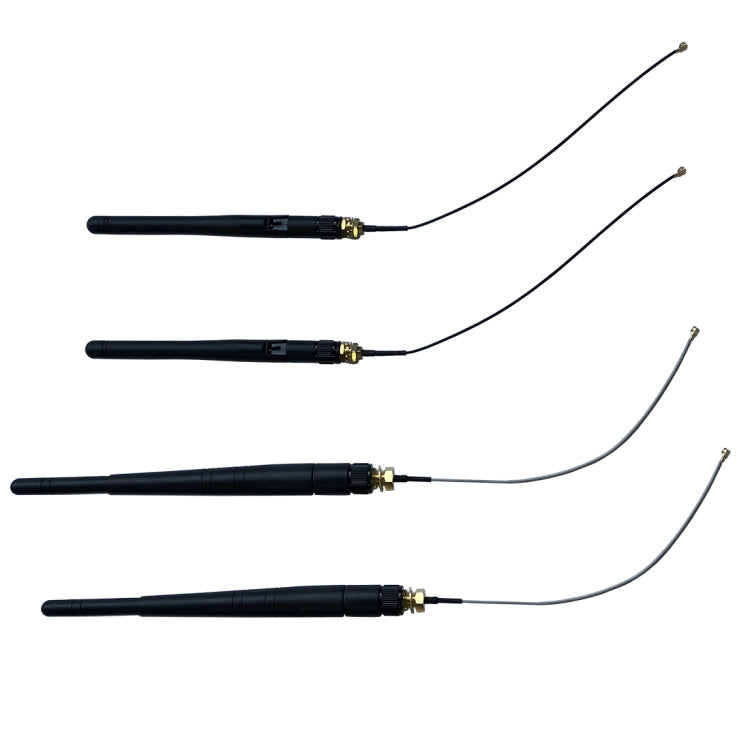

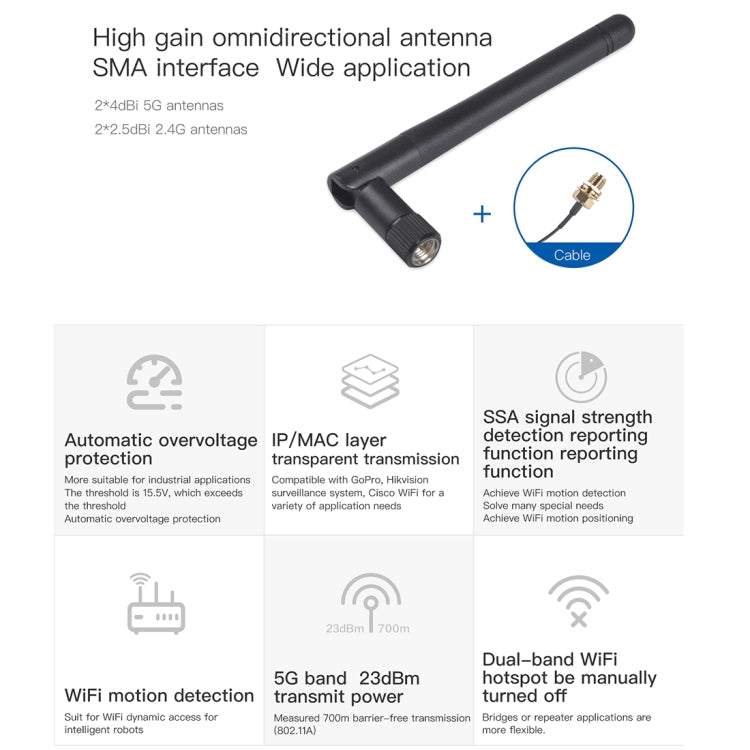

9. Comes with standard external antennas: 2 4dBi 5G antennas, 2 2.5dBi 2.4G antennas.
10. Offers a TTL-level UART data transmission interface.
11. By implementing temperature compensation and frequency stabilization techniques in digital mode, the WiFi signal remains reliable and less susceptible to disruptions.
12. Operating temperature range is from -40 to 55 degrees Celsius.

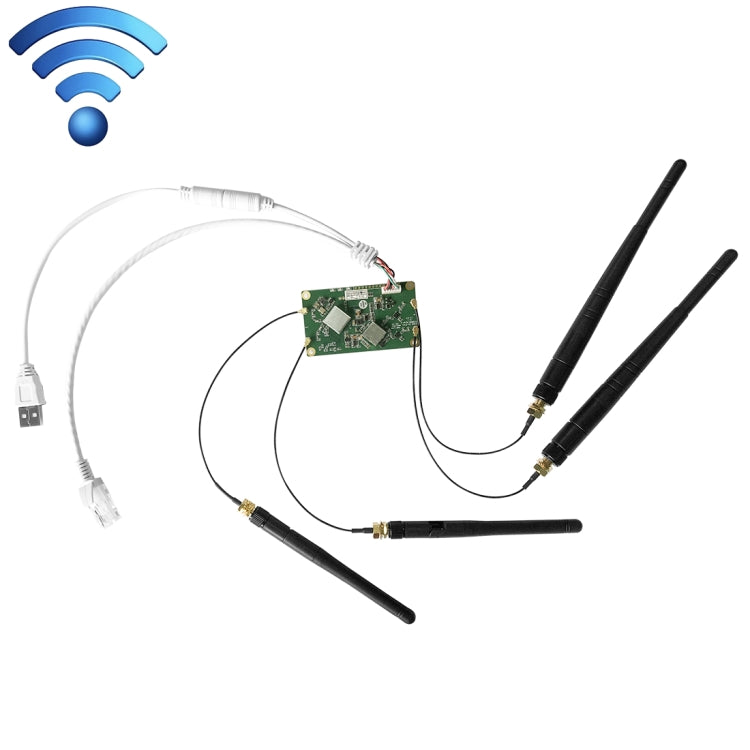

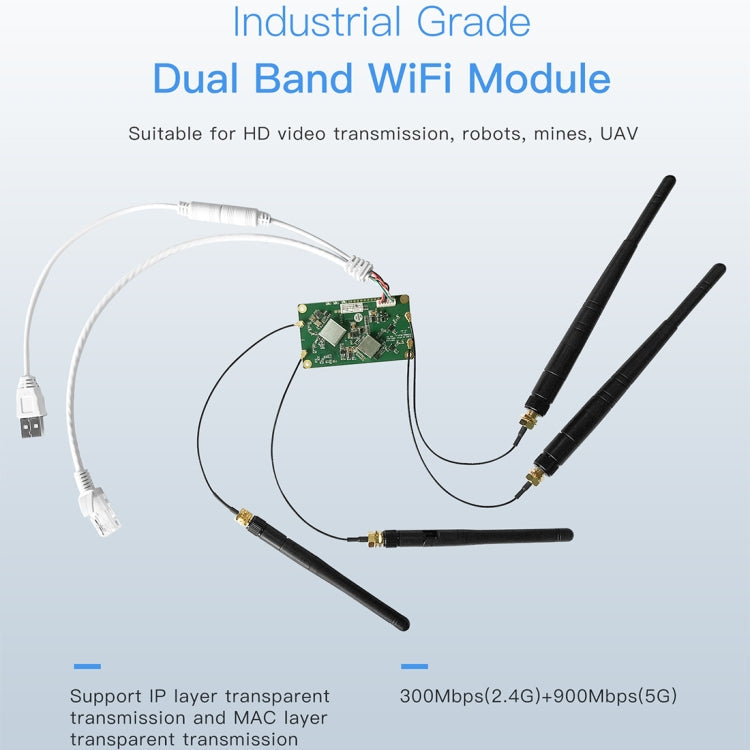

Package Contents:

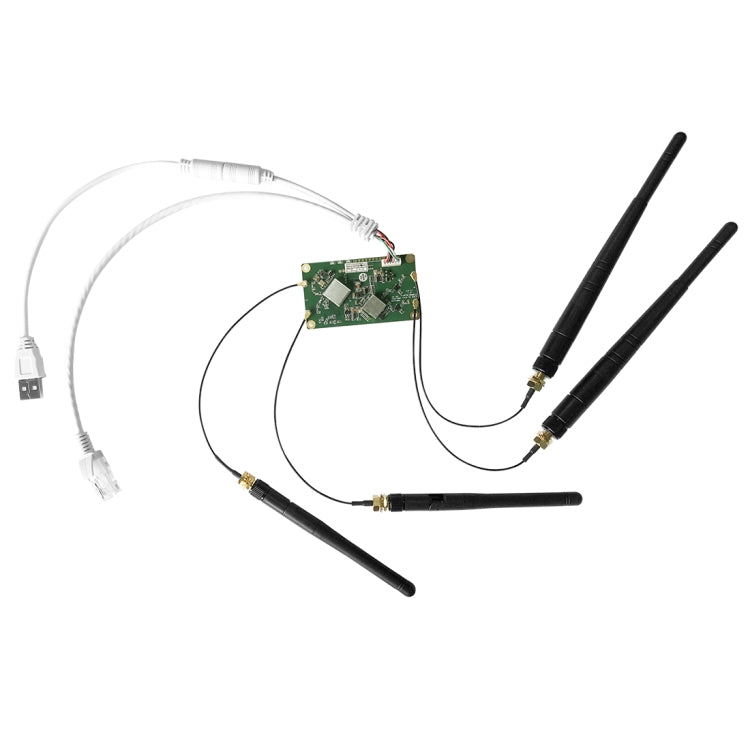

Dual-band WiFi Module x 1
Power Supply, Network Dual-in-One Special Line x 1
2.5dBi 2.4G WHIP Antenna x 2
4dBi 5G WHIP Antenna x 2
