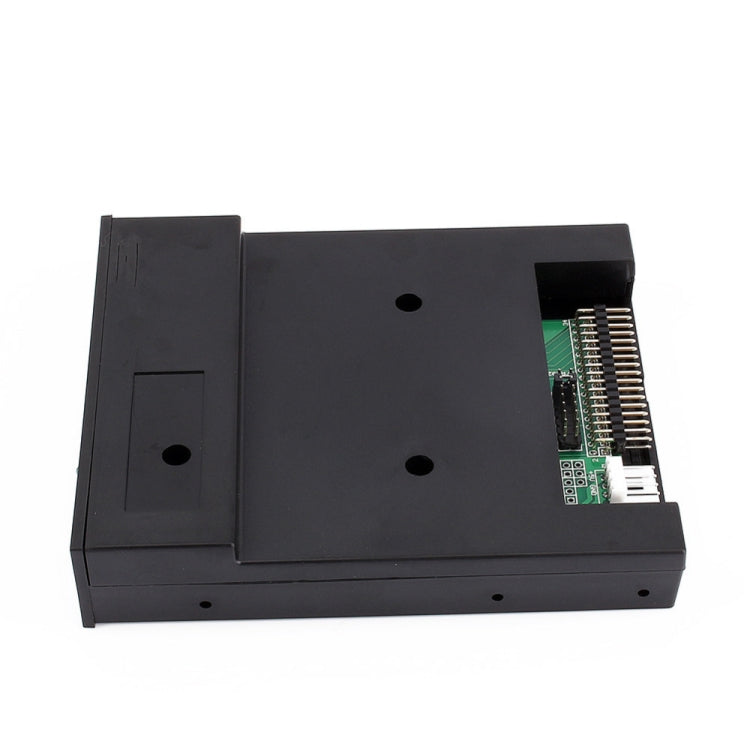

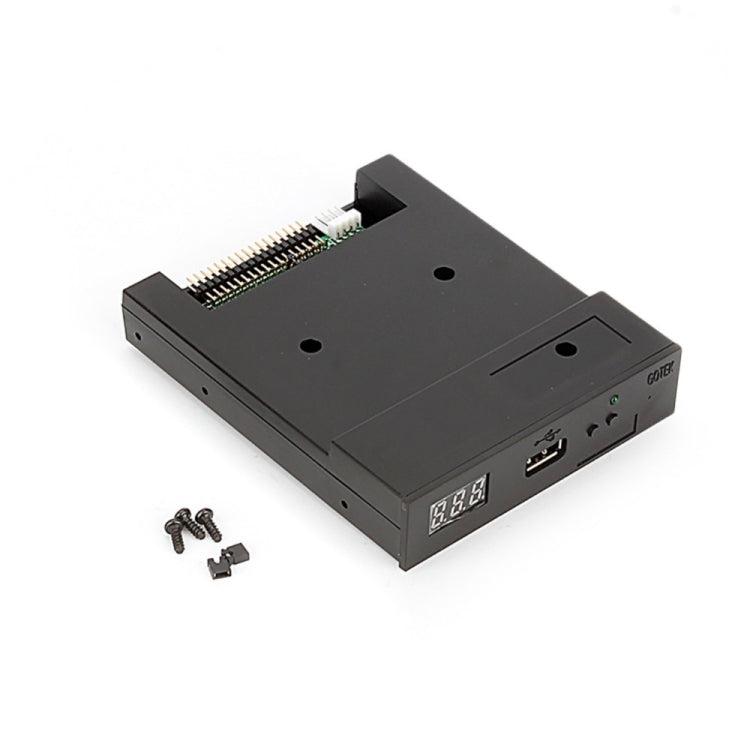

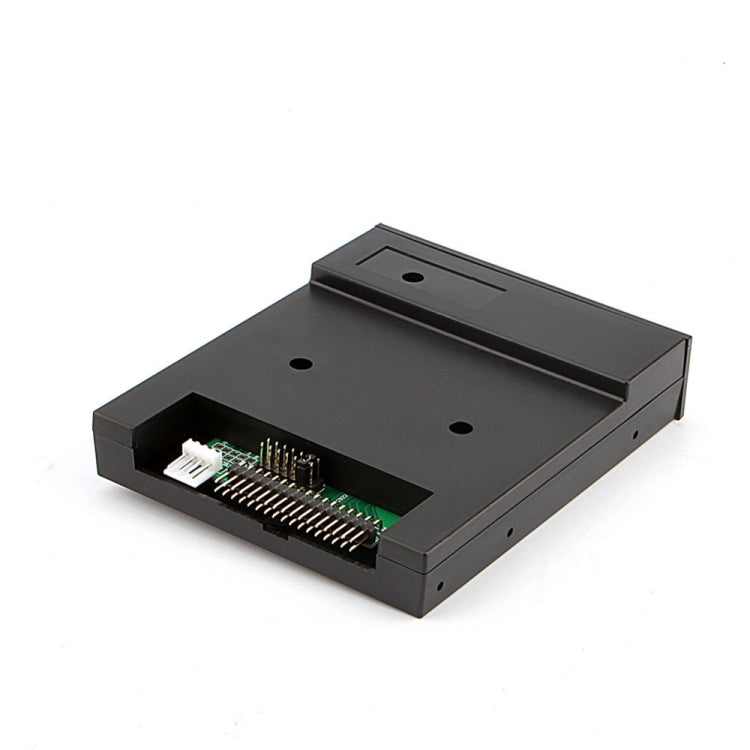

Lisslune | SFR1M44-U100K Floppy Disk Drive to USB Emulator Simulation 500 kbps for Musical Keyboard
Regular price£47.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
- Application:Emulator
- Interface Type:USB
- Type:Internal
- Model Number:Floppy Drive
- USB Floppy Emulator:Floppy Disk
Product Features:
This floppy drive emulator is ideal for use with electronic organs.
Enclosure Material: ABS
Color: Black
This floppy drive includes several key functions:

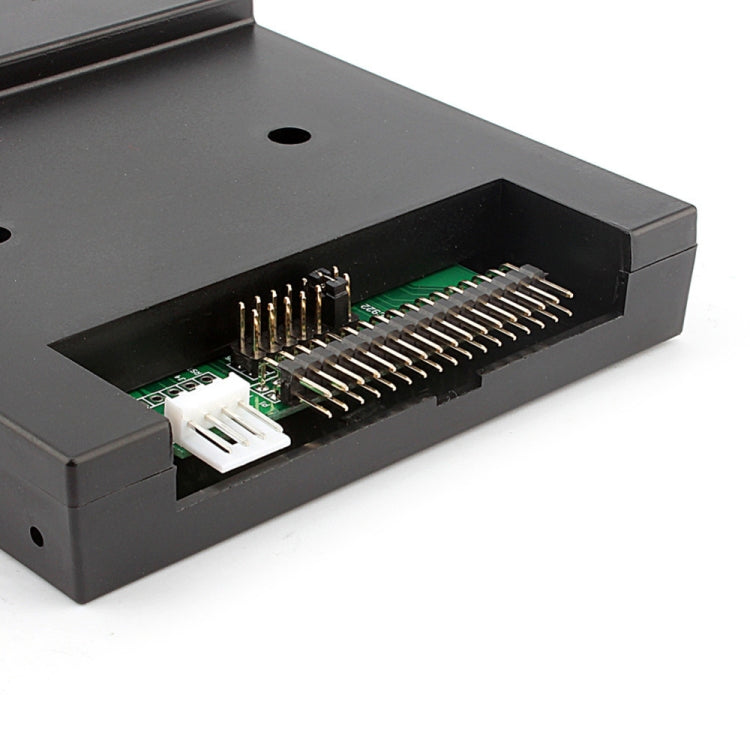

Equipped with a 34-pin connector and operates on a 5V DC power source.
Compatible with 2HD floppy disks holding 1.44 MB of data.
Disk format details: Cylinders: 80
Tracks: 160 sectors/track
18 bytes/sector: 512 data bytes
Data transfer speed: 500 kbps
Encoding technique: MFM
Characteristics:
Employs a standard USB flash drive for data transmission.
Features a 34-pin floppy drive connector powered by 5V DC, ensuring simple installation.
Capacity of 1.44 MB, 2HD, with 80 cylinders, 160 tracks, and 18 bytes per sector, totaling 512 data bytes.
Data transfer speed remains at 500 kbps.
Encoding technique used is MFM.
Allows for a maximum of 1000 partitions on a single USB flash drive.
Equipped with a self-formatting ability. (See the documentation for instructions on this function.)
Jumpers available for different machines (note that the SFR1M44-U100 model does not support jumpers).

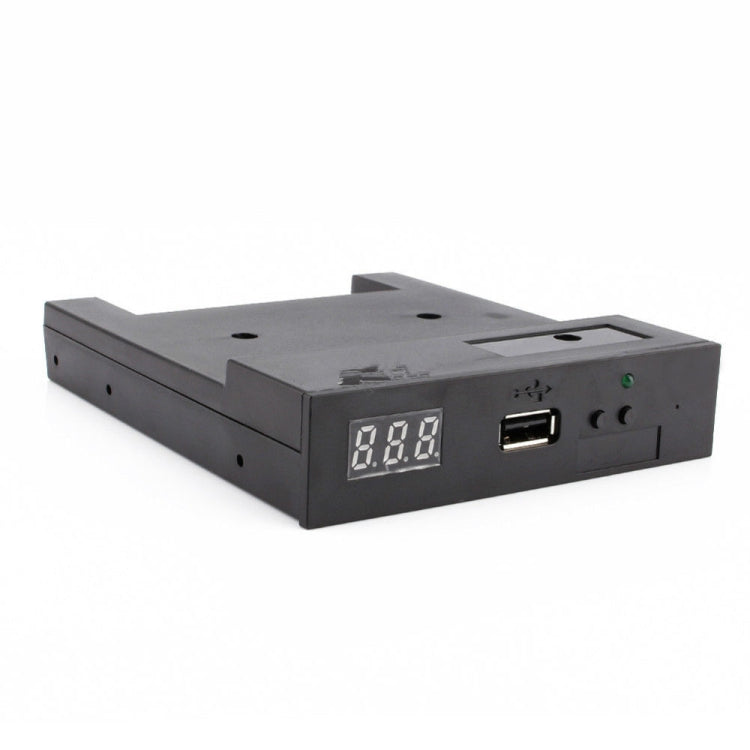

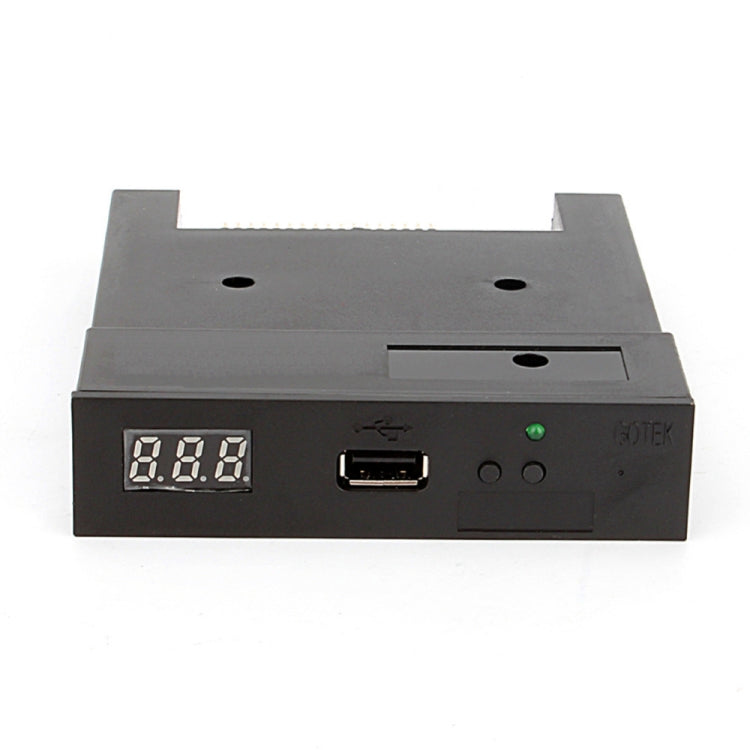

Control Panel:
8-segment digits: indicates the number of available partitions.
Green LED: shows the status of read/write operations.
USB port: used to connect the USB flash drive.
Buttons:
The left button increases the tens digit, whereas the right button boosts the units digit. Press both buttons at once to increase the hundreds digit.
Operation:
To format the USB flash drive:
1. Utilize the built-in self-formatting feature to organize the USB flash drive into 1000 partitions.
2. Set up an emulator on your computer and format each partition using drive A.
3. Employ the UFA1M44-100 emulator, insert the USB flash drive,
link it to your computer, and it will appear as removable drive A or B on WINDOWS XP/2000/7, format each partition accordingly.
The UFA1M44-100 also features an integrated self-formatting tool.
For reading and writing data:
1. Set up the emulator on the device.
2. Install the emulator on your computer.
3. Attach the USB flash drive to the computer to manage data directories via software on WINDOWS XP/2000.
4. Use the UFA1M44-100 emulator, insert the USB flash drive, and connect it to the computer to read and write data on WINDOWS XP/2000/7.
This floppy drive emulator is ideal for use with electronic organs.
Enclosure Material: ABS
Color: Black
This floppy drive includes several key functions:
Equipped with a 34-pin connector and operates on a 5V DC power source.
Compatible with 2HD floppy disks holding 1.44 MB of data.
Disk format details: Cylinders: 80
Tracks: 160 sectors/track
18 bytes/sector: 512 data bytes
Data transfer speed: 500 kbps
Encoding technique: MFM
Characteristics:
Employs a standard USB flash drive for data transmission.
Features a 34-pin floppy drive connector powered by 5V DC, ensuring simple installation.
Capacity of 1.44 MB, 2HD, with 80 cylinders, 160 tracks, and 18 bytes per sector, totaling 512 data bytes.
Data transfer speed remains at 500 kbps.
Encoding technique used is MFM.
Allows for a maximum of 1000 partitions on a single USB flash drive.
Equipped with a self-formatting ability. (See the documentation for instructions on this function.)
Jumpers available for different machines (note that the SFR1M44-U100 model does not support jumpers).
Control Panel:
8-segment digits: indicates the number of available partitions.
Green LED: shows the status of read/write operations.
USB port: used to connect the USB flash drive.
Buttons:
The left button increases the tens digit, whereas the right button boosts the units digit. Press both buttons at once to increase the hundreds digit.
Operation:
To format the USB flash drive:
1. Utilize the built-in self-formatting feature to organize the USB flash drive into 1000 partitions.
2. Set up an emulator on your computer and format each partition using drive A.
3. Employ the UFA1M44-100 emulator, insert the USB flash drive,
link it to your computer, and it will appear as removable drive A or B on WINDOWS XP/2000/7, format each partition accordingly.
The UFA1M44-100 also features an integrated self-formatting tool.
For reading and writing data:
1. Set up the emulator on the device.
2. Install the emulator on your computer.
3. Attach the USB flash drive to the computer to manage data directories via software on WINDOWS XP/2000.
4. Use the UFA1M44-100 emulator, insert the USB flash drive, and connect it to the computer to read and write data on WINDOWS XP/2000/7.
