Compact Testing Functionality

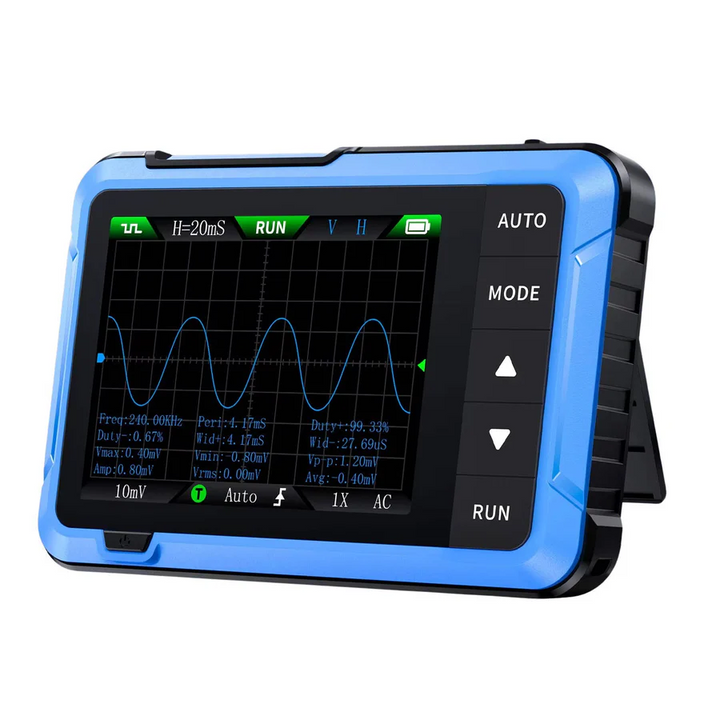

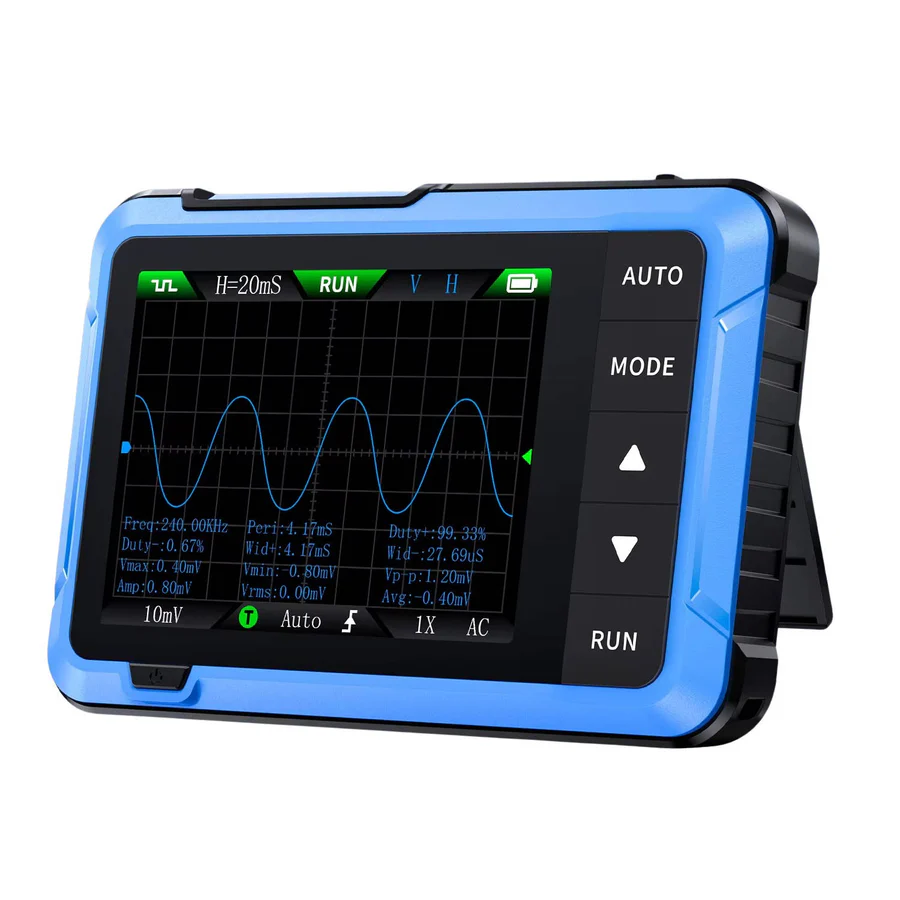

This portable digital oscilloscope provides circuit testing in a compact, lightweight design. With instant AUTO configuration and a bright LCD screen, it enables rapid signal capture without delay.
Standard and Pro Versions
Choose from two models designed to meet your specific needs. The Standard version is perfect for basic diagnostics, while the Pro model offers higher sampling rates and greater bandwidth for advanced testing applications.
Reliable and Versatile
Each model includes an integrated signal generator, can measure voltage safely up to ±400 V, and operates on a rechargeable battery that provides up to 4 hours of continuous usage.
Key Features
- Precise Voltage Measurement: Handles a ±400 V range with necessary circuit safety measures.

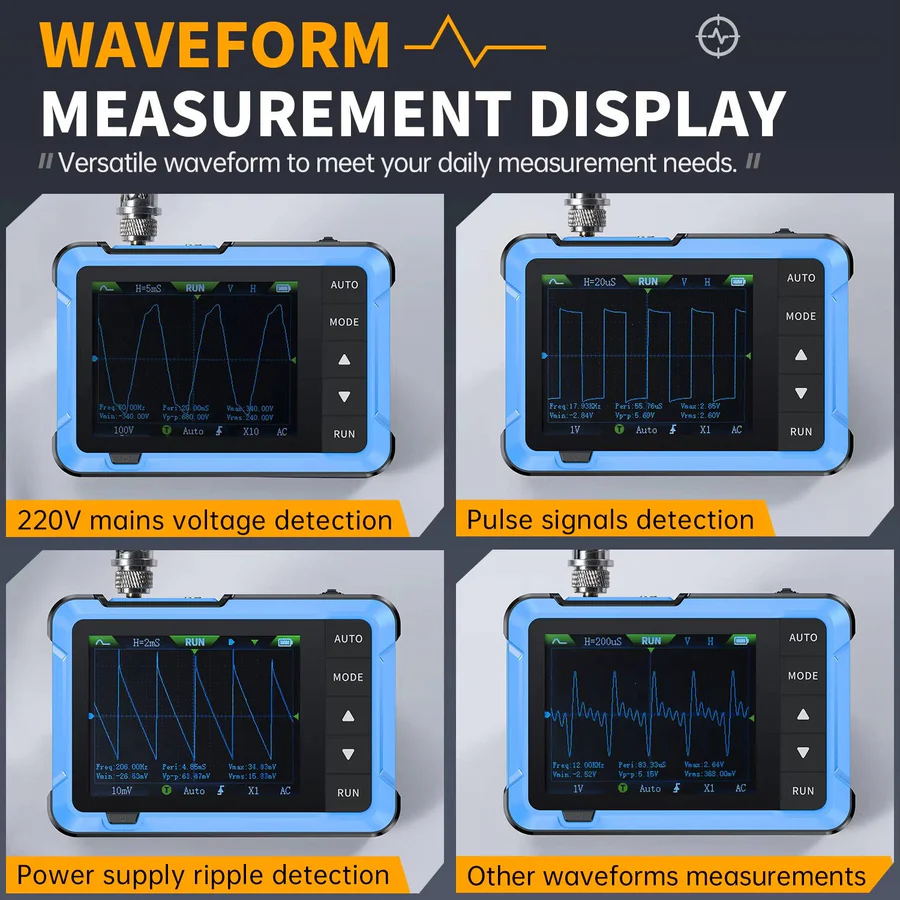

- Real-Time Sampling Rate: 5 MS/s (Standard) or 48 MS/s (Pro) for accurate signal detection.
- Bandwidth Capability: 1 MHz (Standard) or 10 MHz (Pro) tailored for high-frequency assessments.
- Fast AUTO Mode: Automatically adjusts settings to showcase waveforms with a single action.

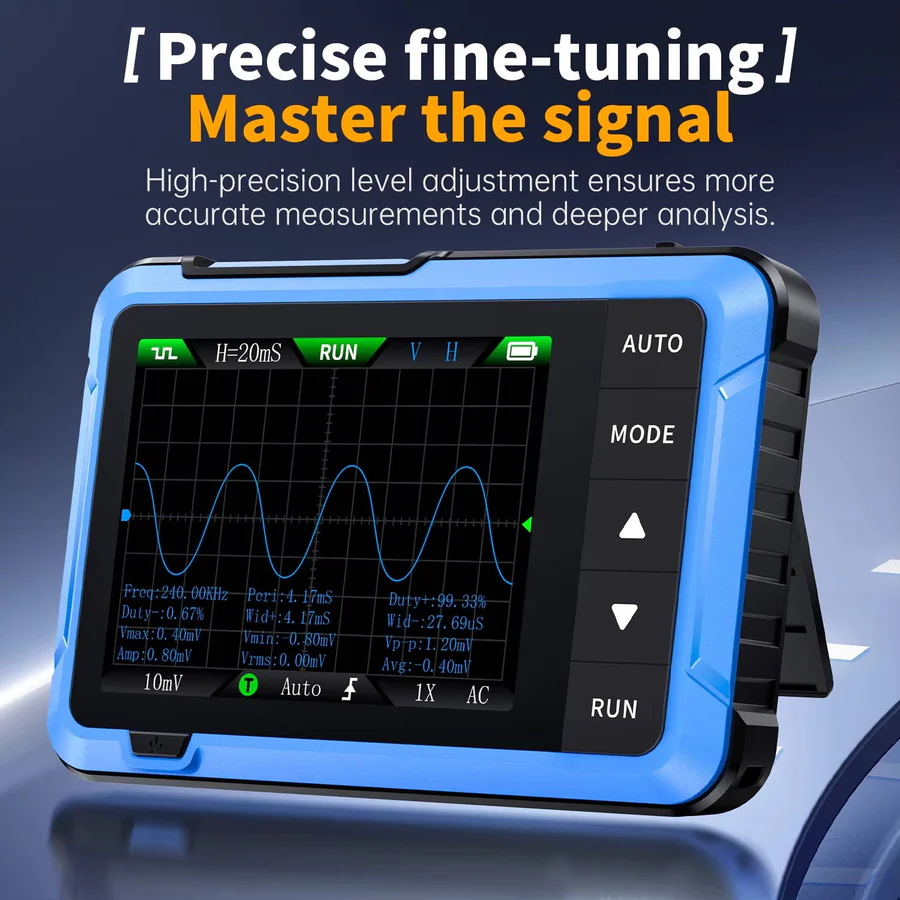

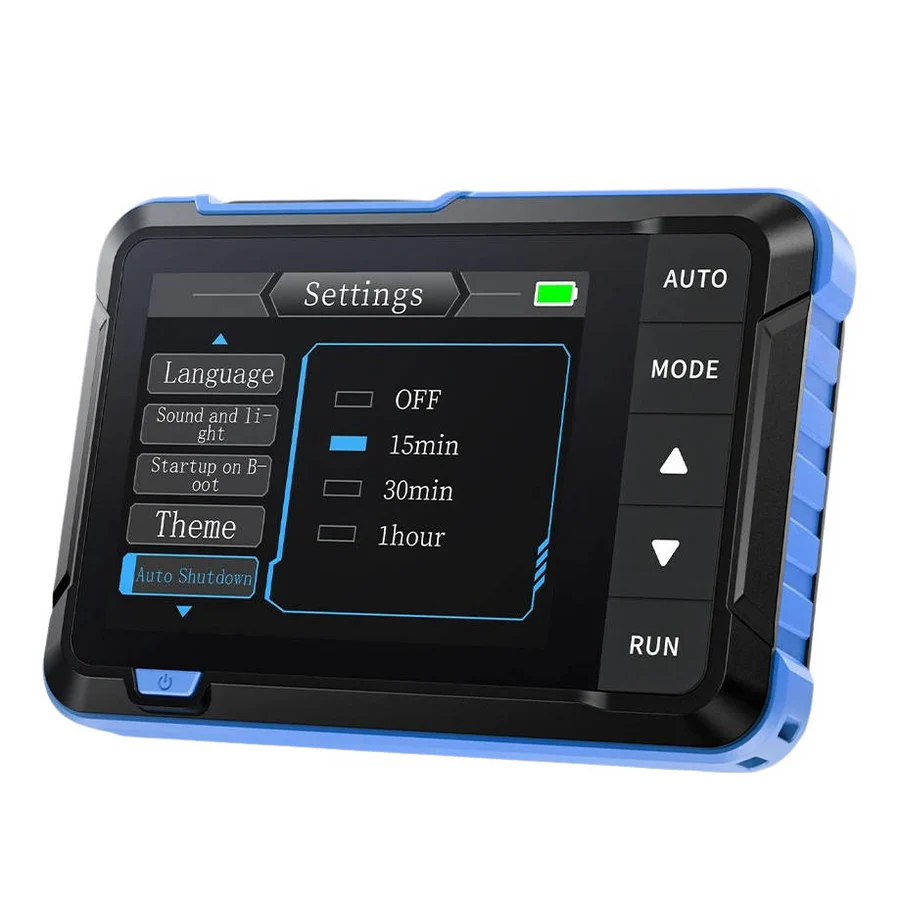

- Clear Display: 2.8-inch LCD with a 320×240 resolution for excellent clarity.

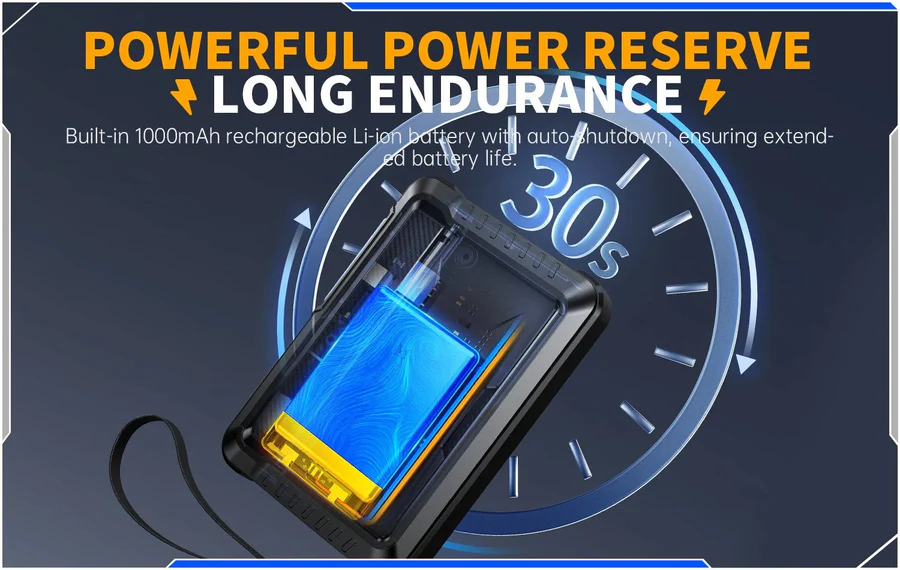

- Extended Battery Life: 1000 mAh lithium-ion battery supports up to 4 hours of use.
- Flexible Trigger Modes: Offers Single, Normal, and Auto modes for varied analysis.
- Built-in Signal Generator: Provides frequencies of 10 kHz (Standard) or 50 kHz (Pro).
Product Specifications
- Display: 2.8-inch LCD
- Screen Resolution: 320×240
- Battery Capacity: 1000 mAh lithium
- Usage Duration: Lasts up to 4 hours
- Voltage Measurement Range: ±400 V
- Sampling Rate: 5 MS/s (Standard), 48 MS/s (Pro)
- Bandwidth: 1 MHz (Standard), 10 MHz (Pro)
- Signal Generator Frequency: 10 kHz (Standard), 50 kHz (Pro)
- Weight: 0.5 lbs
What’s Included
- 1 × Portable Digital Oscilloscope
Frequently Asked Questions
Q: What is the difference between the Standard and Pro models?
A: The Standard model features 5 MS/s sampling with a bandwidth of 1 MHz, while the Pro model provides 48 MS/s sampling and a bandwidth of 10 MHz.
Q: How long does the battery last?
A: The built-in lithium battery can power the device for as long as 4 hours of continuous operation.
Q: Is it suitable for both analog and digital signal measurements?
A: Yes, this oscilloscope can handle both analog and digital signals.
Q: Is it safe for high voltage measurements?
A: Definitely, it can measure voltage up to ±400 V safely, thanks to its integrated safety circuits.
