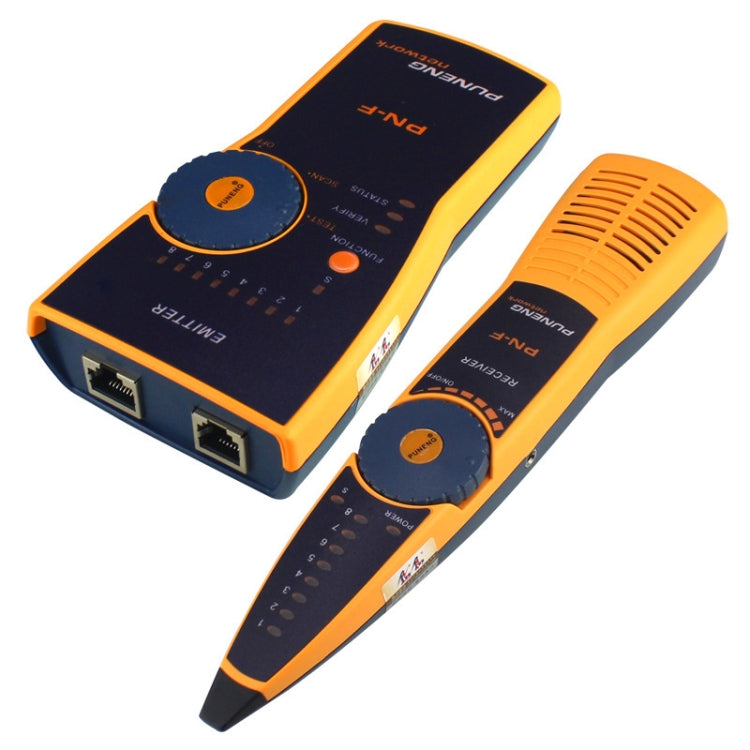

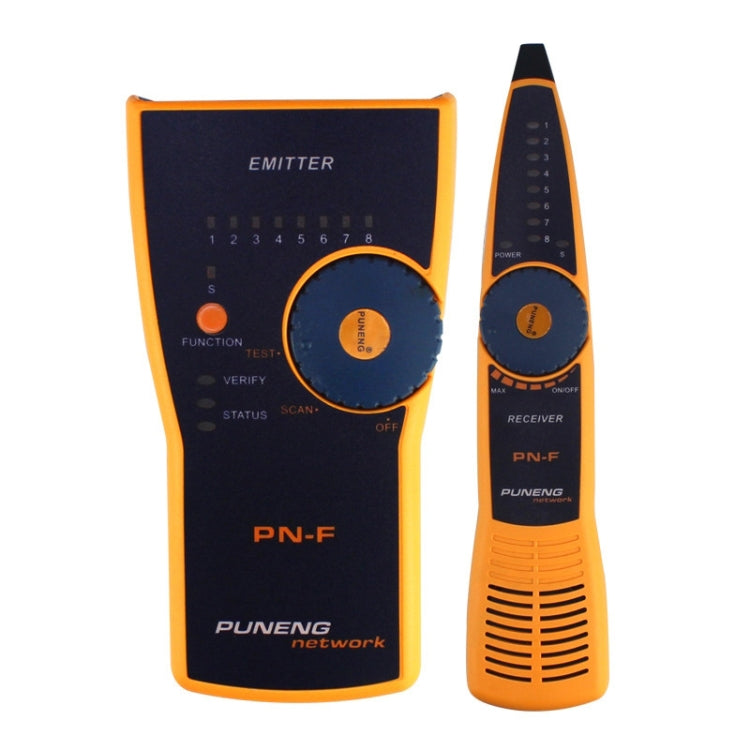

Lisslune | PN-F RJ11 / RJ45 Network Cable Finder Network Cable Tester POE Tester Anti-Interference

1. Efficient and precise testing for professionals, simply connect and test for rapid identification.

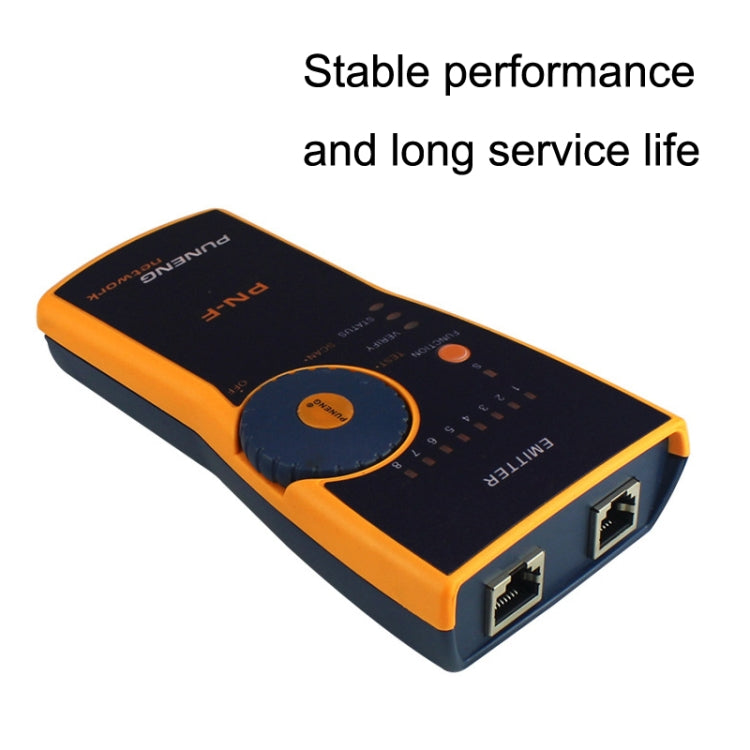

2. Dependable performance with a long-lasting lifespan.
3. Quick and accurate, significantly minimizing maintenance requirements.

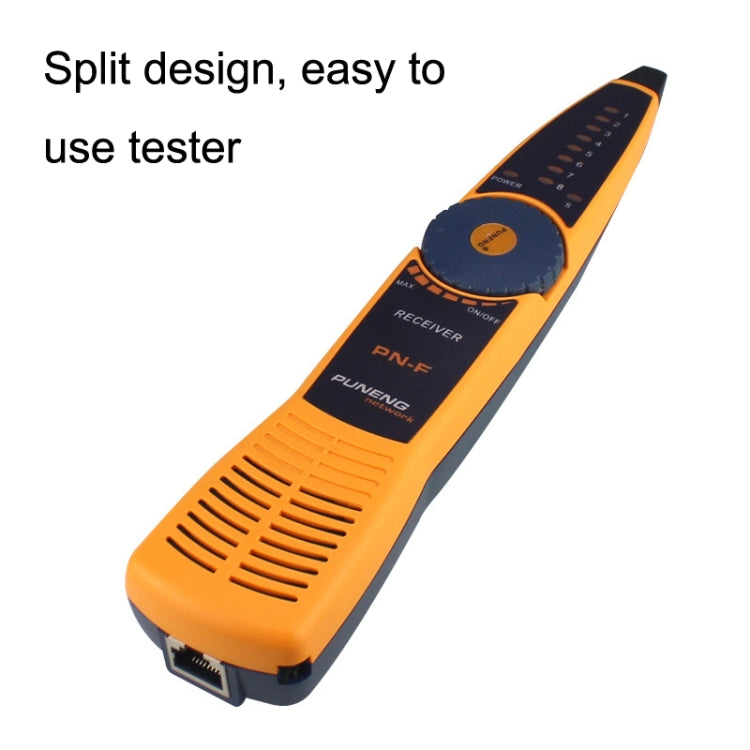

4. Split design enhances user-friendly testing experiences.
5. Shockproof and drop-resistant, ideal for use on construction sites.

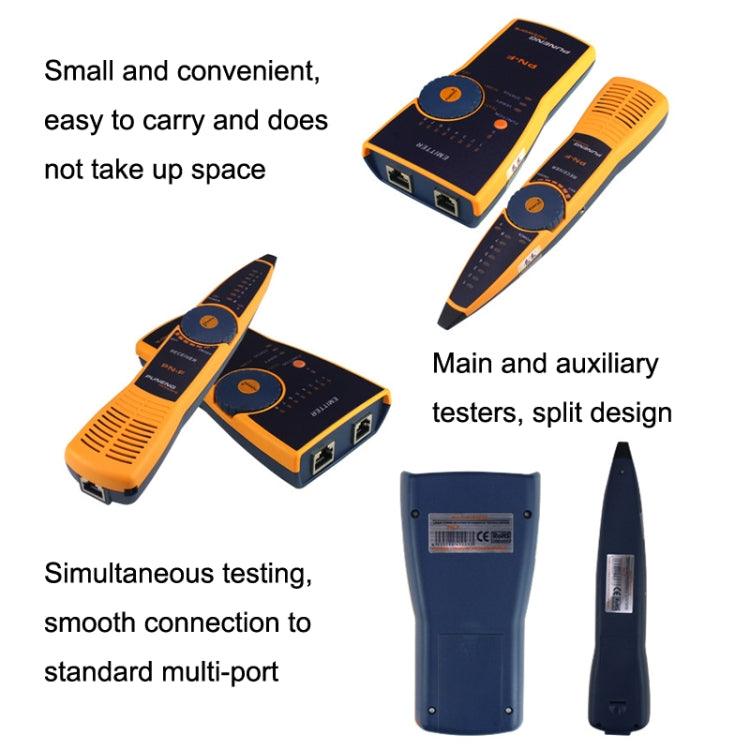

6. Compact and handy, easy to carry and occupies little space.
7. Primary and secondary testers come with a distinct design.
8. Concurrent testing with simple connections to standard multi-ports.
9. Transmission range: equal to or more than 3KM.
10. Main device operating current: under 10mA.
11. Auxiliary unit operating current: under 30mA.
12. Material: ABS.
13. Functionality: Network cable testing and locating.
14. Power source: 9V DC laminate battery (not included with the product).
15. Main unit dimensions: 140x75x30mm.
16. Receiver dimensions: 220x48x32mm.
17. Net weight: 250g.
18. Gross weight: 0.4kg.

Phone/Network cable locating function:
1. Directly connect the phone cable with the RJ-11 plug to the phone cable search port.
2. Adjust the sender’s function selector to the SCAN position; the status light will blink, showing that the sender is functioning correctly.

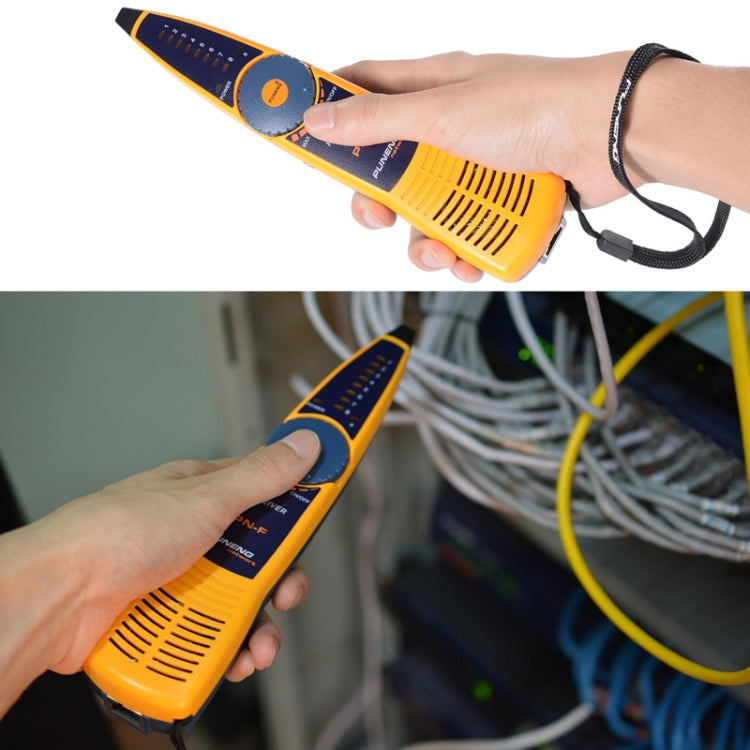

3. Activate the receiver’s power switch and use the receiver's signal probe to find the target cable.
4. Throughout the testing procedure, you can press function buttons to switch between dual audio.

Power cable locating function:
1. Link the sender to the metallic search wire using the crocodile clips.
2. Set the sender’s function selector to the SCAN position; the status light will blink, indicating that the sender is operating properly.
3. Press the jog button on the receiver and utilize the receiver's probe to locate the target cable.
4. During the testing phase, you can use the function keys to alternate between dual audio.

Network cable testing function:
1. Insert the RJ-45 connectors at both ends of the network cable being tested into the corresponding ports of the sender and receiver.
2. Set the sender’s function selector to the TEST position; the test indicator VERIFY will blink, indicating that the sender is working correctly.
3. Use the 18 wire sequence indicators to assess characteristics such as short circuits, interruptions, breaks, and cross connections.
4. During the testing, you can press function buttons to switch between fast and slow modes.
