1. This device features 100 keys, with customizable options that can be programmed as various quick-access keys, combination keys, and standalone keys.

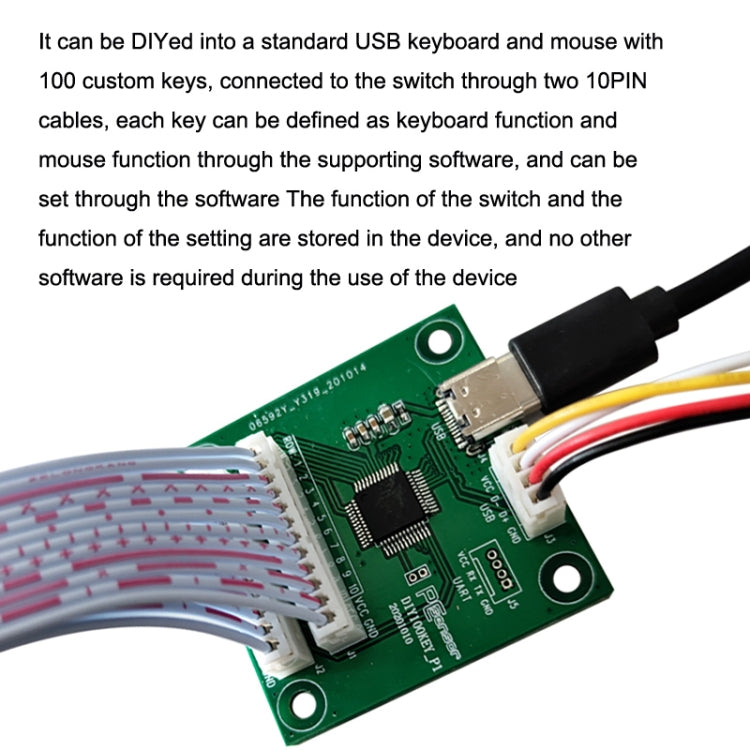

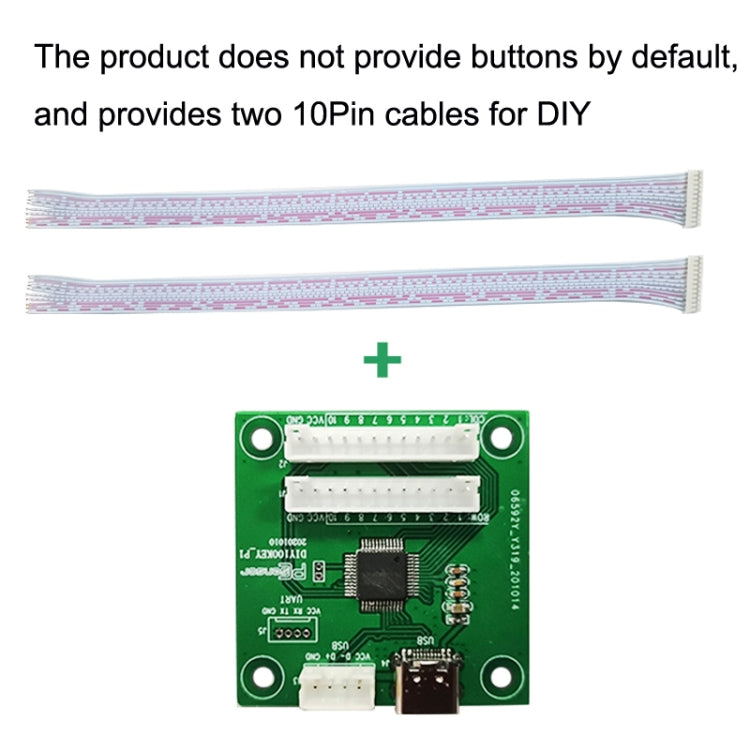

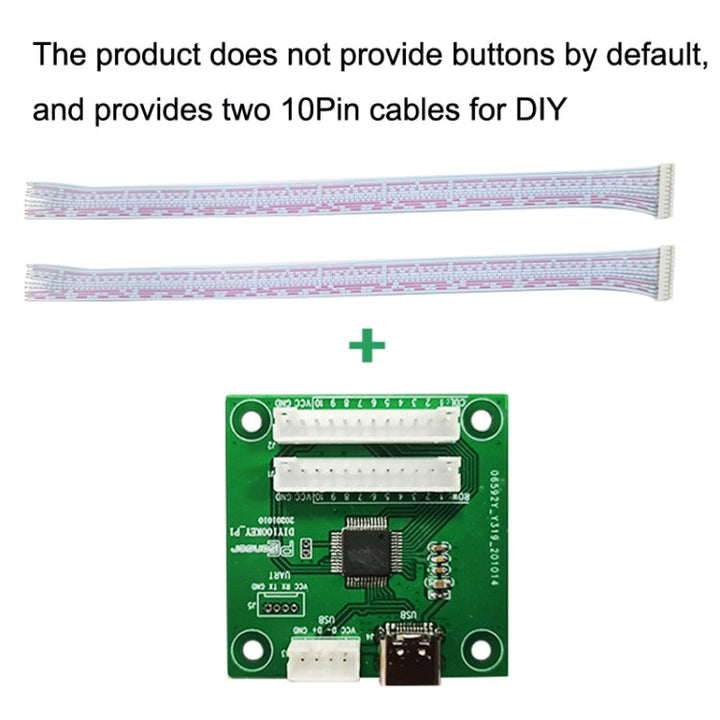

2. DIY: It can be easily converted into a standard USB keyboard and mouse with 100 customizable keys linked to the switch through two 10PIN cables. Each key can be assigned specific keyboard and mouse functions with the included software. The switch’s functions and settings are stored directly on the device, so no extra software is necessary during operation.

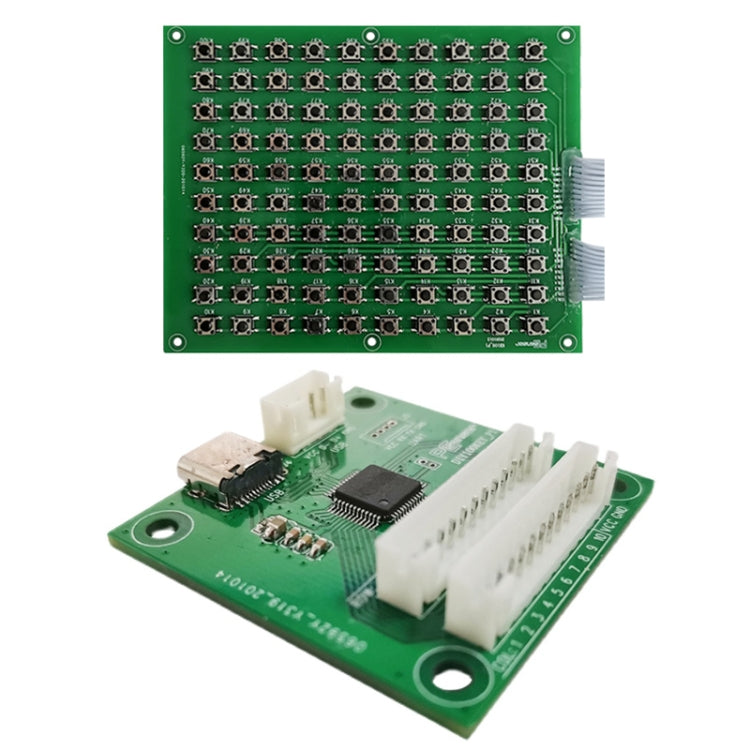

3. PCB: Includes an optional 100 keys to help you verify the functionality of the assigned keys.
4. Interface type: USB Type-C.
5. Operating voltage: 5V.
6. Operating current: 15mA.

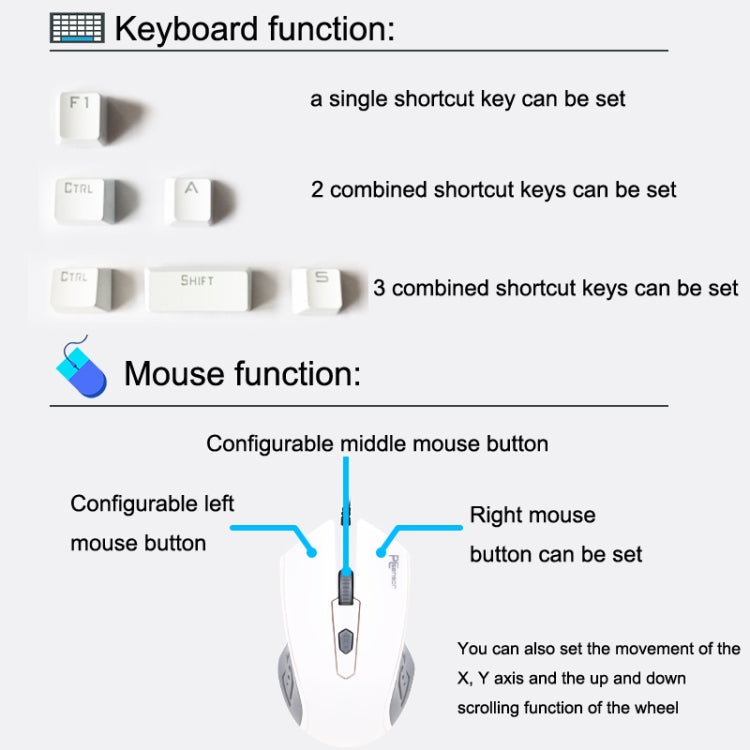

7. Keyboard functionality: One quick-access key can be programmed; you can combine two quick-access keys; you can also combine three quick-access keys.
8. Mouse functionality: The left mouse button can be programmed; the middle mouse button can be configured; the right mouse button can be adjusted; plus, you can set the movement for the X and Y axes along with the scroll wheel's up and down functions.

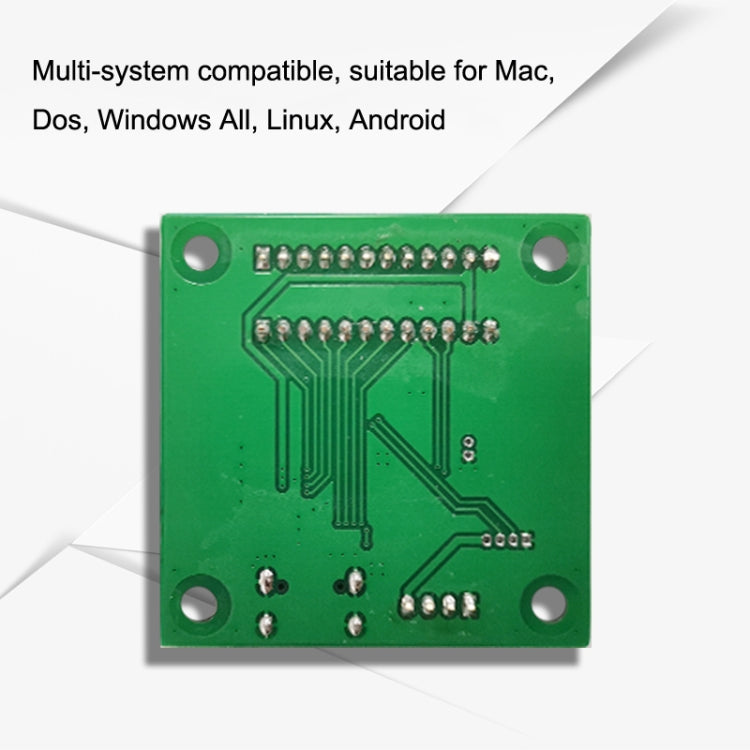

9. Compatible with multiple systems, including Mac, DOS, all versions of Windows, Linux, and Android.
10. Material: PCBA board.
11. Dimensions: 4.2 x 4.2 cm.
Setup instructions: If you want to modify a key's function, utilize the FootSwitch software to change the key function:
1. Connect the device to your computer.
2. Open the FootSwitch software.
3. Choose the key that you want to modify.
4. Select or input the function you wish to assign.
5. Hit the "Save" button.
