Lisslune | NK-10II HDMI to HDMI/CVBS /AV Scaler Box Video Converter (Black)

Features
1. Incorporates a cutting-edge, energy-efficient digital chip for processing. Functions continuously for a full 24 hours, uses minimal power, and ensures consistent performance.
2. Utilizes advanced 3D compensation technology to prevent shaking and lags during fast-moving images.
3. Features DCDI processing technique.
- The patented DCDI technology, created by Faroudya, eliminates jagged edges in videos produced by conventional high-definition converters.
- The integrated bad interface detection can analyze all types of video data streams from original film codes and accurately reconstruct video signals. This produces a static image with complete vertical resolution.
- The life-changing technology can recognize image details like skin micro-lines, imperfections, or hair. This detail enhancement boosts the sharpness and vibrancy of images.
- Thanks to motion-adaptive processing technology, noise artifacts are reduced without introducing spots, effectively restoring the original image quality.
- The dynamic testing technology can selectively filter static images momentarily and employ image storage technology to preserve the essential chroma values.
- Following the application of this technology, scenes with intricate colors will no longer show unwanted shading, such as on tiled roofs, patterned fabrics, and drifting leaves.
4. Incorporation of scaler video processing that facilitates the conversion of high-resolution HDMI signals into CVBS outputs.
5. The integrated HDMI video/audio distributor can reroute high-definition HDMI signals.
6. The built-in video DAC can process digital HDMI video signals and convert them into analog stereo outputs.

Specifications
1. Hardware conversion, designed for plug-and-play with no need for software drivers.
2. Compatible with HDMI 1.3
3. Supports both NTSC and PAL for standard outputs.

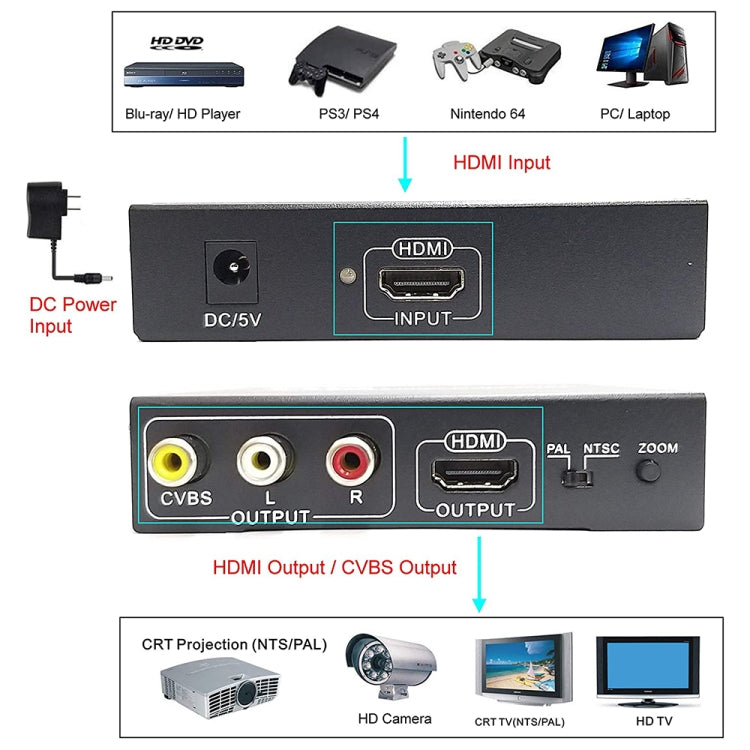

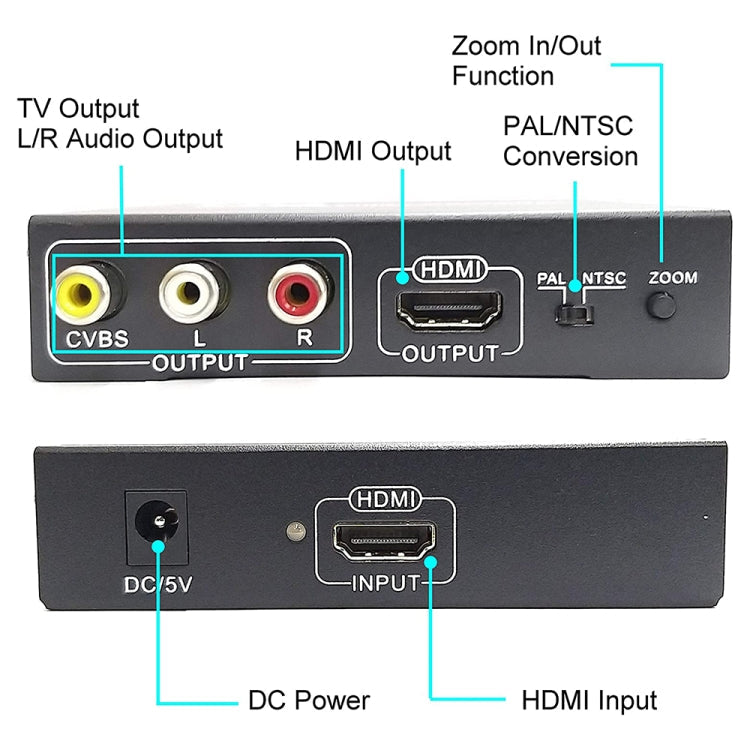

4. One HDMI input, one HDMI output, one CVBS output, and one L/R stereo output.
5. HDMI input modes include: 480i, 480P, 576i, 576P, 720P, 1080I, 1080P
6. DVI mode compatibility: 800x600, 1024x768, 1280x720, 1280x1024, 1920x1080/@60hz, etc.
7. HDMI output equipped with AV sync output.
8. AV video output: Optional PAL and NTSC.
9. Video output: L/R stereo channel.
10. Dimensions: 100mm(W)x105mm(D)x25mm(H)

Platform
1. Can be deployed in KTV Dream Works as an expandable platform.
2. AV signals can be seamlessly transmitted. Simple connection through HDMI input and HDMI output.
- Does not occupy the HDMI interface of the original device.
3. Can be utilized in major conference systems as a presentation platform.
- Can be controlled remotely, and the HDMI output can be connected to the currently displayed platform, allowing the AV signal to be interrupted at any moment, thereby preventing unauthorized individuals from viewing irrelevant information.
4. Can also find applications in critical medical procedures.
- When HDMI signals are inputted and outputted simultaneously, current procedures can be monitored. The AV signals are relayed to the monitoring room, enabling remote observation of the operation.
