1. Transforms SD-SDI / HD-SDI / 3G-SDI video sources into HDMI outputs
2. Accepts video formats: SD-SDI (270Mb/s) / HD-SDI (1.485Gb/s) / 3G-SDI (2.97Gb/s)
3. Works with SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C standards
4. Includes a built-in audio decoupler that allows for smooth and re-synchronized loop output for up to 8 channels of 48KHz audio
5. Input/output resolutions supported: 480, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.91/24/25/29.97/30/50/59.94/60Hz

Specifications
1. Video signal input: HD digital component interface signal (HD-SDI and 3G-SDI)
2. Video signal output: a single HDMI output signal (1080P @ 60Hz)
3. Input audio signal: embedded in SDI
4. Maximum operating current: 500mA
5. Power supply specifications: AC input (50HZ, 60HZ) 100V-240V; output: DC 12V / 1A
6. Operating temperature range: -15 to 55 degrees Celsius
7. Dimensions: 80 x 41 x 25mm
8. Weight: 150g

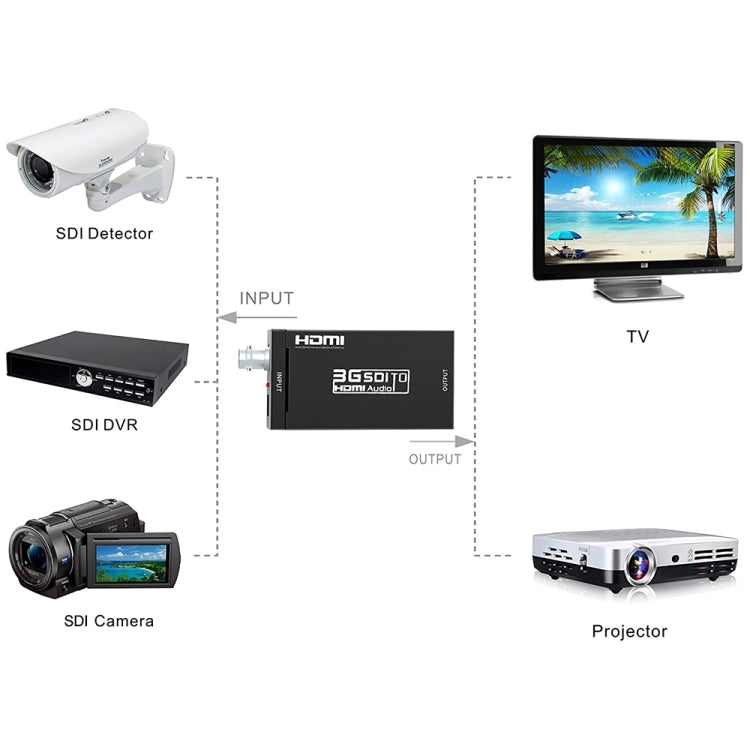

Connection and Operation:

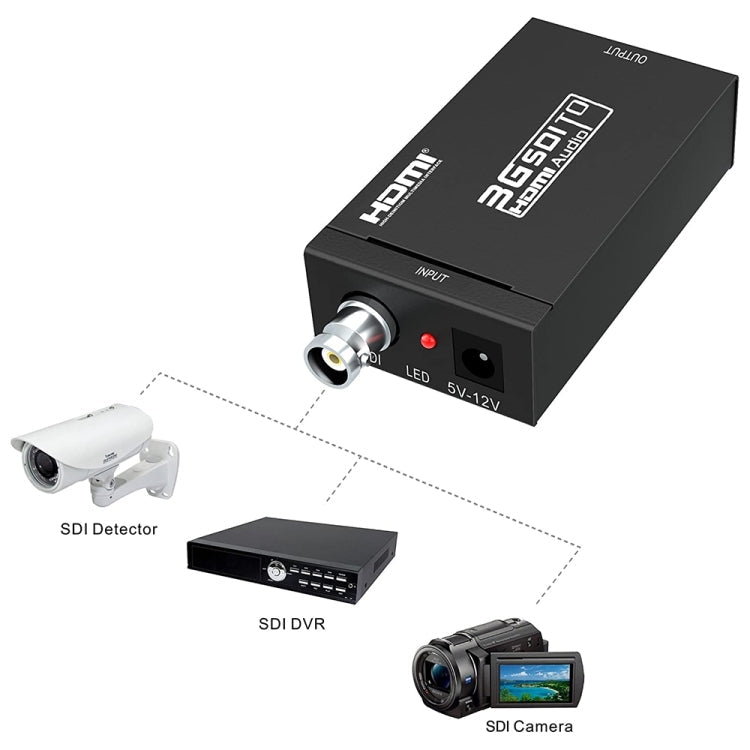

1. Attach the signal source using the SDI connector to the SDI input port of the unit

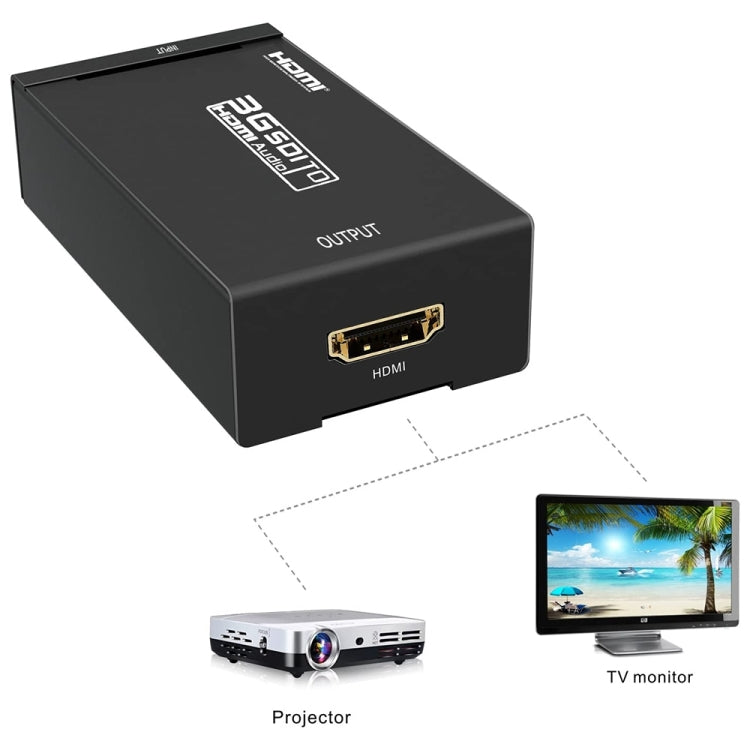

2. Connect the converter's output to the receiving device with an HDMI cable
3. Plug in the DC 5V/1A power supply or the 12V power supply to the converter
