Lisslune | Mini PCI-E to USB3.2 GEN1 Front 19Pin 2 Ports Transfer Card supports Half High SATA
Regular price£44.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
1. Advanced chip technology offers rapid speeds and consistent transmission

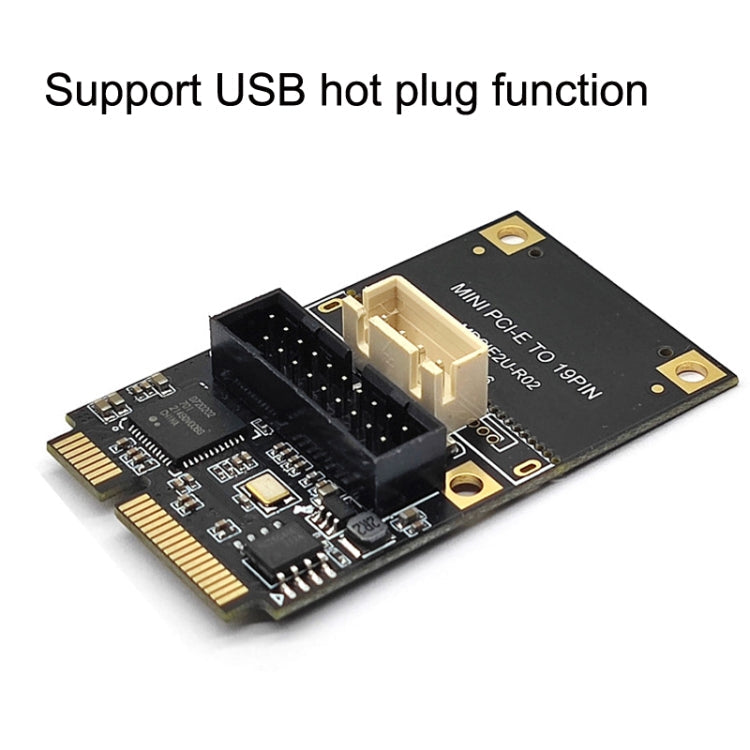

2. Features USB hot-swapping capability
3. Data transfer rate: USB3.2 GEN1 at 5Gbps
4. Output port: 1 USB3.2 GEN1 19PIN
5. Input port: MINI PCI-E
6. Compatible operating systems: WINXP/WIN7/8/10/11/LINUX
7. Primary control chip: Renesas uPD720202 chipset
8. Function: With the introduction of USB3.0, insert this adapter card into the MINI PCI-E motherboard slot and install the driver to upgrade to 2 USB3.0 ports! This enables simultaneous data exchange between 2 USB3.0 devices

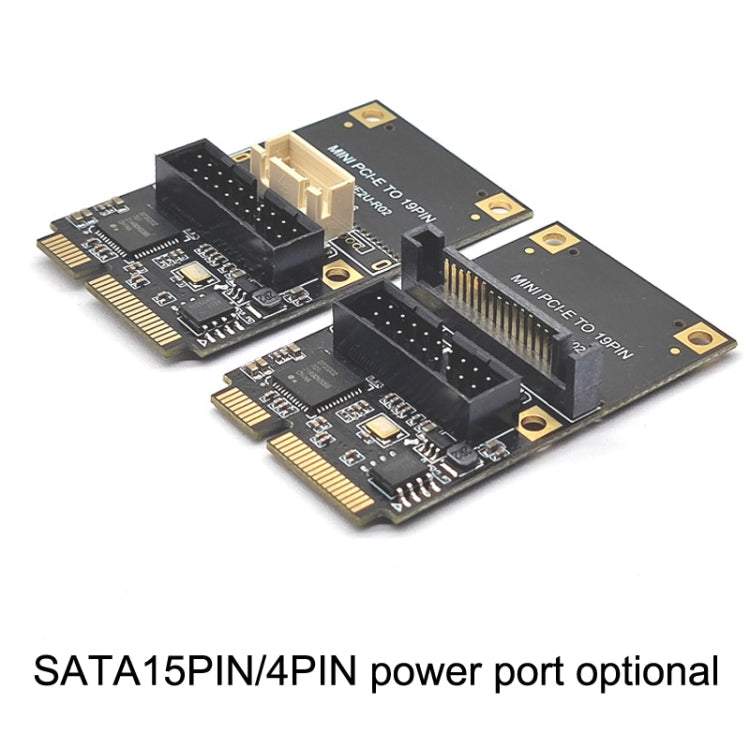

9. Interface bandwidth: Optional power connections via SATA15PIN/4PIN
10. Driver installation guide: Access the supporting CD folder ---/NEC/D720201-2, and double-click the exe file to initiate installation
11. Adheres to PCI-Express Specification Version 2.0
12. Adheres to USB3.0 SuperSpeed Specification Version 1.0
13. Adheres to xHCI Specification Version 1.0
14. Fully backward compatible with USB2.0, USB1.1, and USB1.0
15. Data transfer speeds: 5000/480/12/1.5Mbps
16. Includes an integrated small 4PIN power boost connector

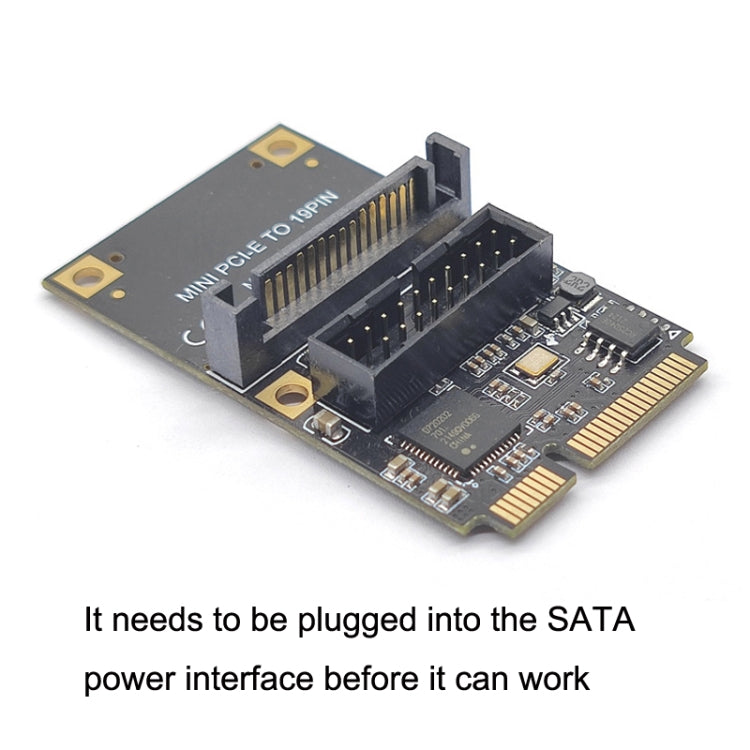

17. Must connect to the SATA power connector for proper operation
18. The expansion card is equipped with a large capacitor, greatly improving the stability of the USB power supply
Hardware requirements:
1. A motherboard or laptop with MINI PCI-E support
2. This item is a MINI PCI-E expansion card. It is necessary to have an available MINI PCI-E slot on the motherboard prior to installation and usage. It cannot be used in any other PCI slot. Please do not attempt to use it in a PCI slot.
Note:
1. The riser card can achieve 370-400M/S with PCI-E2.0 and 120-170M/S with PCI-E1.0
2. Ensure your riser card is compatible with PCI-E2.0 or higher prior to making a purchase.
