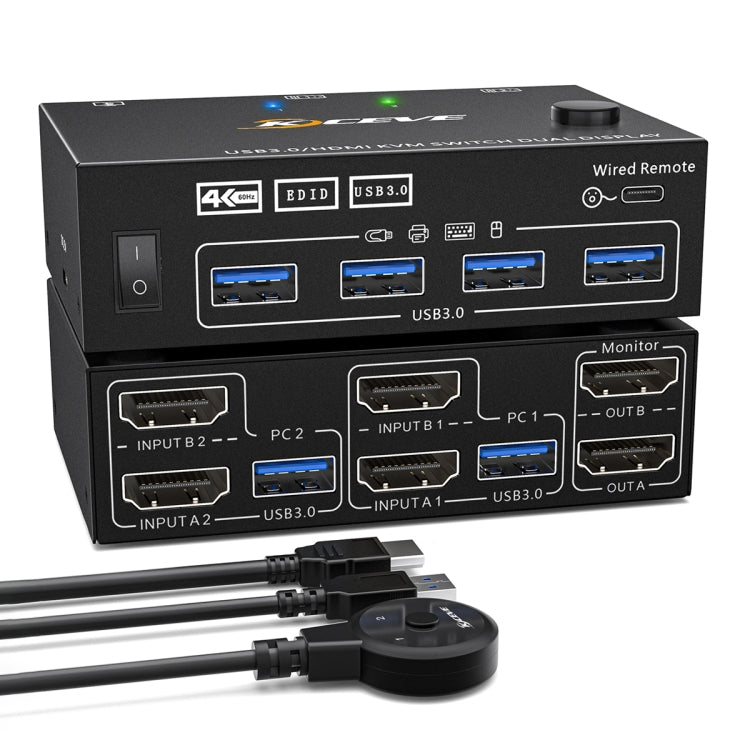

Lisslune | KC-KVM202AS 4K 60HZ USB3.0 HDMI Dual Display KVM Switcher Support EDID Analog Lock Screen

Features:

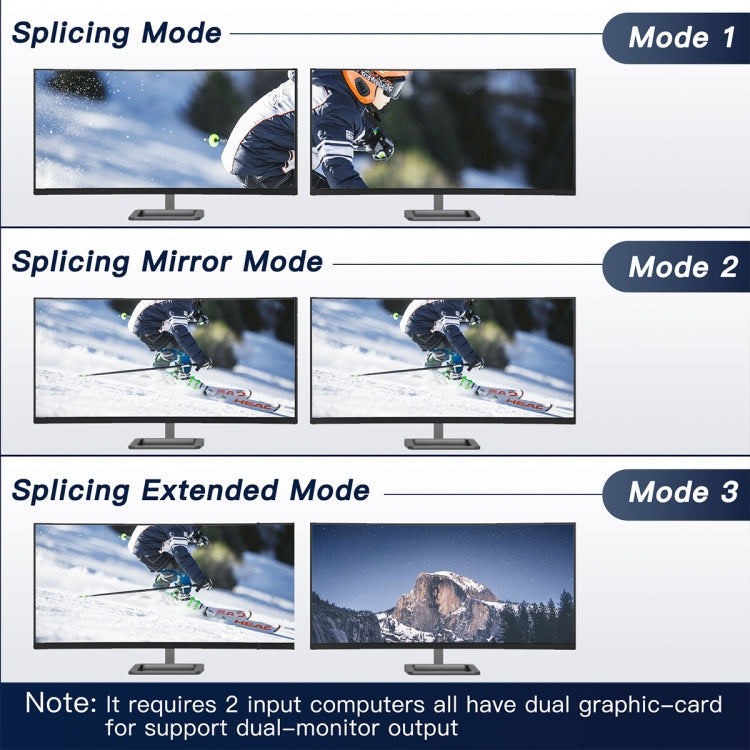

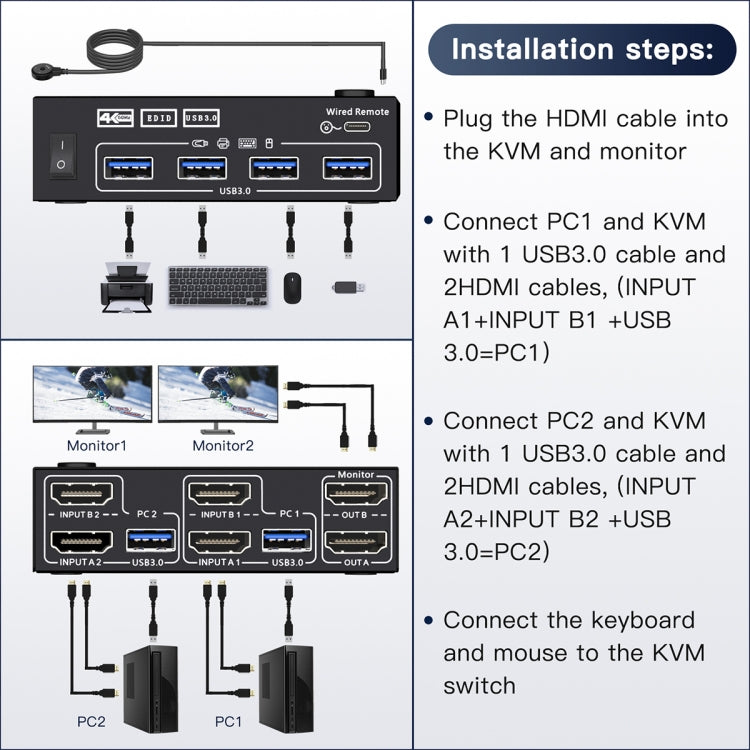

1. HDMI KVM-Switch: This device enables you to control 2 computers or laptops while sharing 4 USB 3.0 devices and 2 monitors (either in extended display mode or mirror mode) using a single set of wired or wireless keyboard and mouse.
2. Ultra HD: It accommodates resolutions up to 4K 60Hz and 2K 120Hz, allowing for the connection of 2 computers with different resolutions—such as one at 4K 60Hz and another at 4K 30Hz, 1440P 60Hz, 3D, 1080P 60Hz, or lower settings.
3. Featuring 4 USB 3.0 ports: This HDMI USB switch includes 4 integrated USB 3.0 ports that can recognize keyboard, mouse, printer, scanner, and other USB devices. It supports rapid USB 3.0 data transfer speeds of up to 5Gbps and is backward compatible with USB 2.0/1.1 devices. For high-performance USB devices (such as HDDs, digital cameras, SSDs, etc.), an external 5V power supply is needed; otherwise, no power supply is necessary.

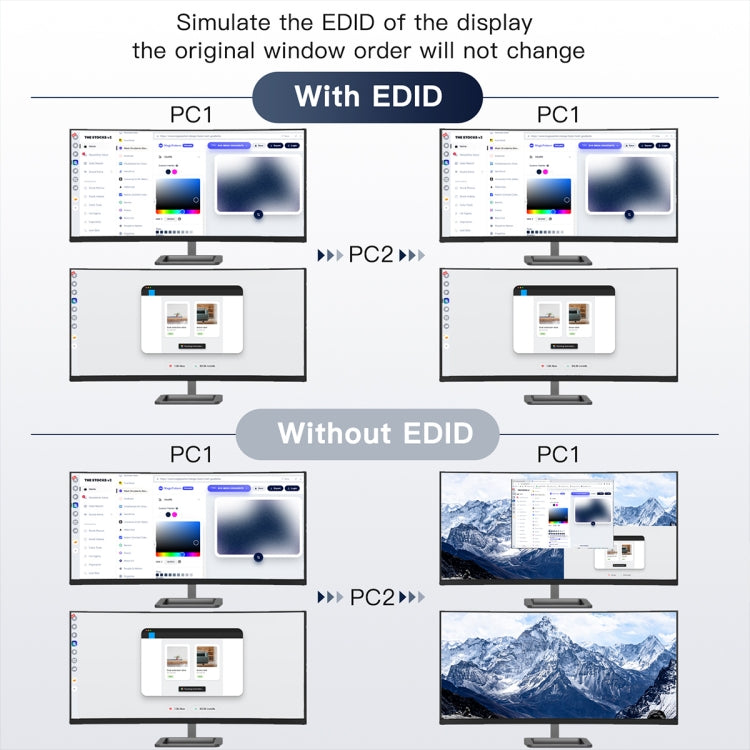

4. EDID Emulation Support: The switch mimics the EDID of the display, retaining the resolution and refresh rate, with each input port equipped with an EDID emulator to ensure the PC continually receives the correct display settings.
5. Compatible with various systems: The switch operates without needing drivers and is compatible with Windows 11/10/7 as well as Mac OS/Linux, ensuring a hassle-free installation—just plug and play.
6. Extensive Compatibility: Dual monitors accommodate several input devices including PCs, laptops, Apple TV, and Xbox, making it suitable for use in diverse environments like offices, multimedia teaching settings, conference rooms, and more.

Specifications:
1. Standard: HDMI 2.0
2. Resolution range: up to 3840x2160 60Hz, 3440x1440 144Hz/120Hz,
2560x1440 144Hz/120Hz, 1920x1080 60Hz
(depending on the system and connected hardware)
3. Connection: HDMI-A interface
4. HDMI cable length: less than 15M (resolution: 1920x1080 60Hz), less than 5M (resolution: 3840x2160 30Hz)
5. USB interface protocol: USB3.0
6. PC input: USB-A
7. PC output: USB-A
8. Additional power supply: USB power supply (DC 5V optional)
9. Maximum power consumption: 4W
10. Operating temperature: -5 degrees Celsius to +70 degrees Celsius
11. Operating humidity: 5%-90%
12. Product dimensions: 10 x 6.5 x 4 cm
13. Material: Metal + Polycarbonate

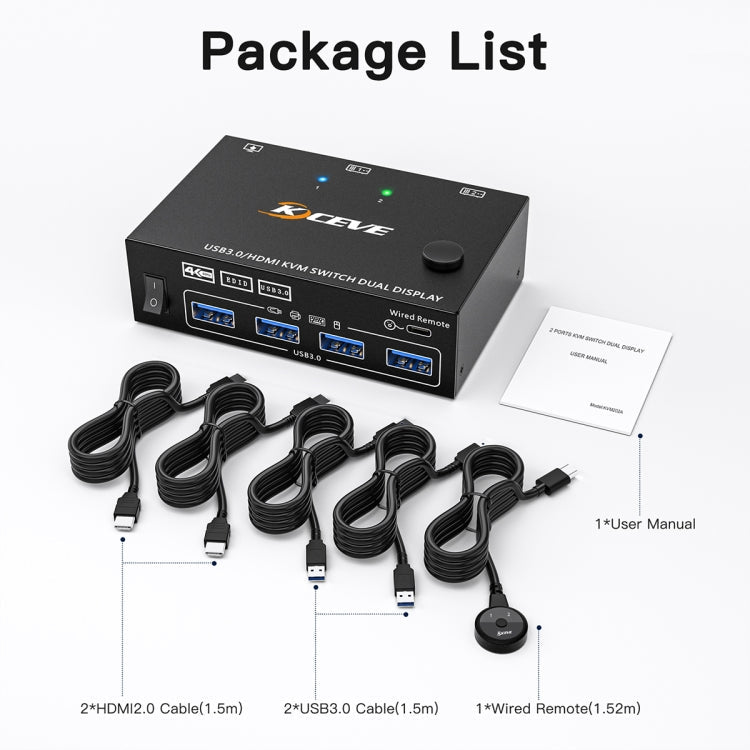

Package contents:
- USB3.0 HDMI Dual Display KVM Switch x 1
- 1.5m USB3.0 data cables x 2
- 1.5m HDMI cables x 2
- Type-C power cable x 1

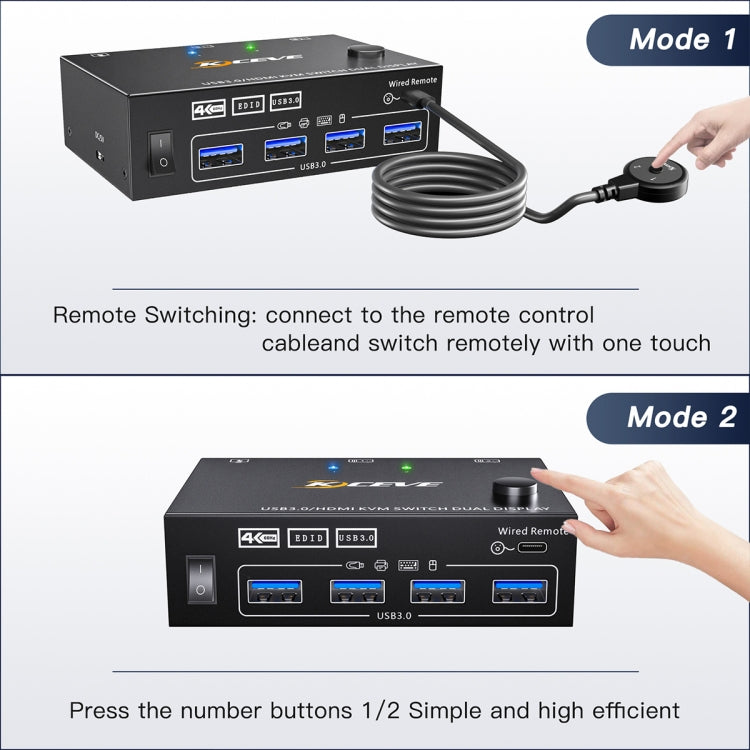

- Wired remote control x 1
- User manual x 1
