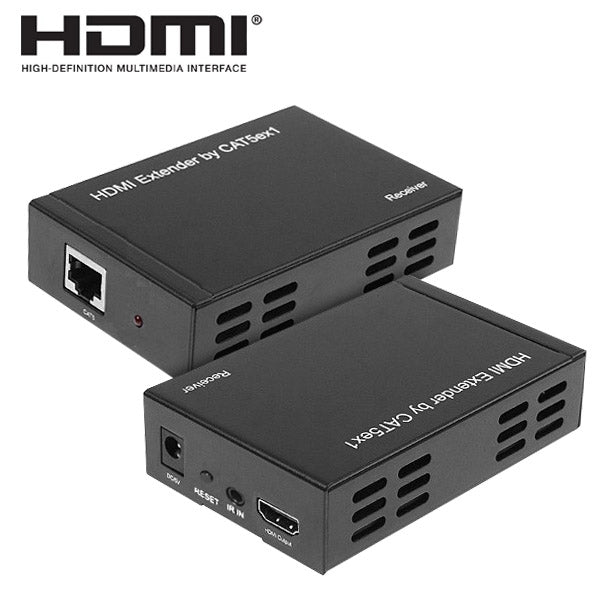

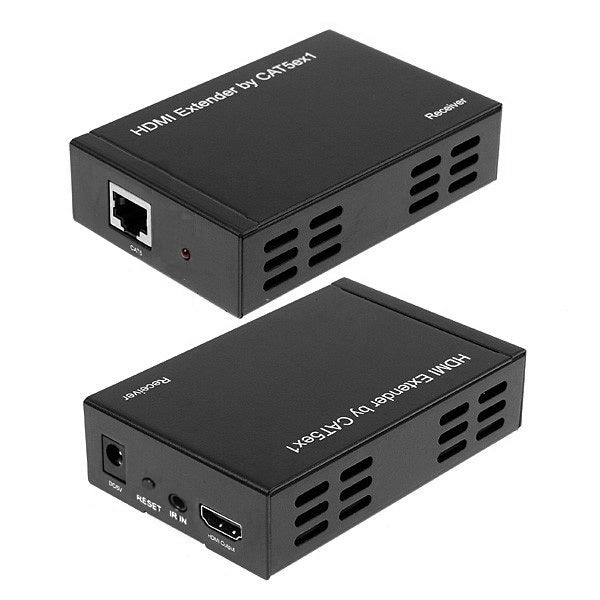

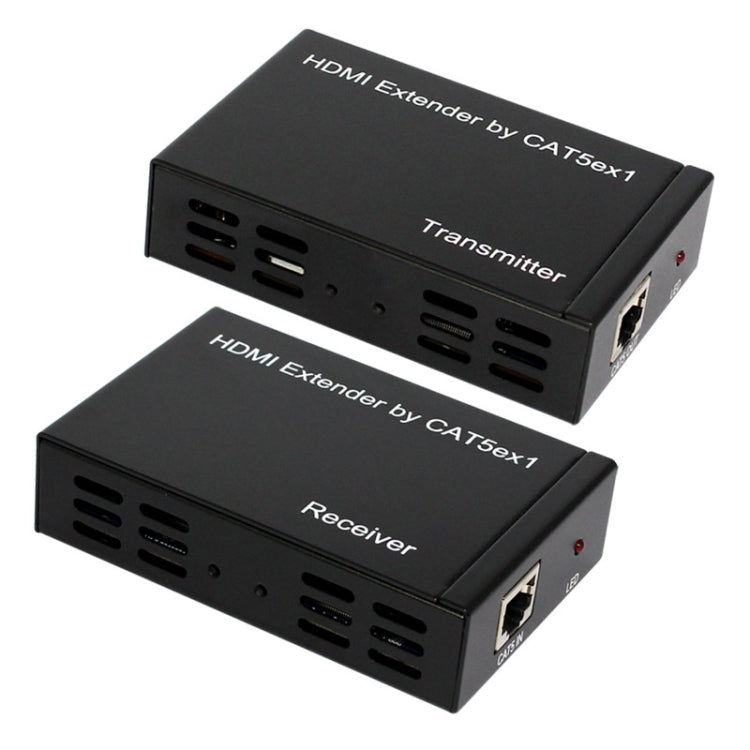

Lisslune | Full HD 1080P HDMI to Extender Sender + Receiver over a 100m CAT5E / CAT6 (TCP/IP)
Regular price£162.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
The HDMI extender over CAT 5E/6 is engineered to facilitate the transmission of your HDMI signal over lengthy distances to a compatible display device. Instead of relying on expensive HDMI cables, you can take advantage of your current CAT 5E/6 cables and connectors to activate features like transmitting Deep Color (12 bits/color) video along with digital audio, achieving a bandwidth of up to 225 MHz. This HDMI transmitter and receiver utilize a SINGLE CAT 5E/6 extender, providing a robust solution for HDMI extension needs. Additionally, the HDMI extender over a SINGLE CAT 5E/6 is capable of supporting IR signal retransmission, enabling you to control equipment located up to 100 meters away via the HDMI extender.
Features:
1) Versatile power supply from DC 5V to 12V.
2) Meets HDMI 1.3, HDCP 1.1, and DVI1.1 specifications.
3) Provides support for Deep Color up to 12 bits/color.
4) Facilitates IR signal retransmission.
5) Employs a CAT5E/6 cable for data/DDC transmission.
6) Equalizes incoming TMDS data, restoring it to optimal quality no matter the input signal condition.
7) Cable tests reveal that at 1080p resolution, the HDMI input source can be set up to 20 meters away.
8) When sending a signal at 1080p resolution, the operational range of CAT6 is 100 meters.

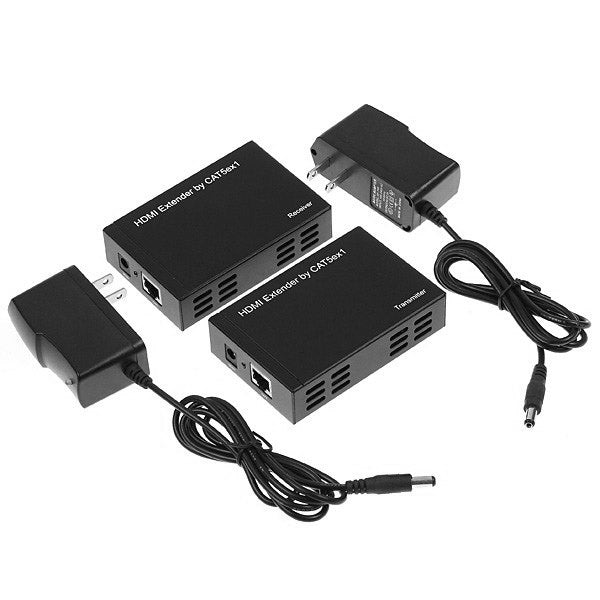

Included in the package:
1) 1 unit HDMI extender (transmitter)
2) 1 unit HDMI extender (receiver)
3) 1 unit IR transmitter
4) 1 unit IR receiver
5) 2 units 5V DC power adapter
6) 1 unit user manual
Technical specifications:
1) Frequency bandwidth: 2.25 Gbps (single link)

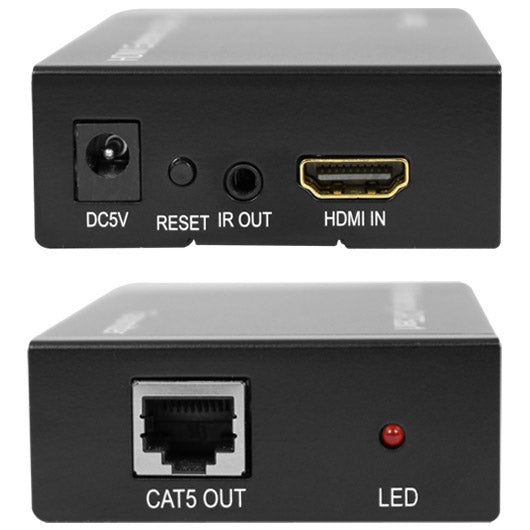

2) HDMI transmitter input/output ports: 1x HDMI socket/1x CAT6
3) HDMI receiver input/output ports: 1x HDMI socket/1x CAT6
4) Power supply: DC 5V~12V
5) ESD protection human model: 8kV (air discharge), 4kV (contact discharge)
6) Dimensions (mm): 65mm X 100mm X 25mm
7) Operating temperature: 0°C ~ 40°C / 32°F ~ 104°F
8) Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
9) Relative humidity: 20~90% RH (non-condensing)
Features:
1) Versatile power supply from DC 5V to 12V.
2) Meets HDMI 1.3, HDCP 1.1, and DVI1.1 specifications.
3) Provides support for Deep Color up to 12 bits/color.
4) Facilitates IR signal retransmission.
5) Employs a CAT5E/6 cable for data/DDC transmission.
6) Equalizes incoming TMDS data, restoring it to optimal quality no matter the input signal condition.
7) Cable tests reveal that at 1080p resolution, the HDMI input source can be set up to 20 meters away.
8) When sending a signal at 1080p resolution, the operational range of CAT6 is 100 meters.
Included in the package:
1) 1 unit HDMI extender (transmitter)
2) 1 unit HDMI extender (receiver)
3) 1 unit IR transmitter
4) 1 unit IR receiver
5) 2 units 5V DC power adapter
6) 1 unit user manual
Technical specifications:
1) Frequency bandwidth: 2.25 Gbps (single link)
2) HDMI transmitter input/output ports: 1x HDMI socket/1x CAT6
3) HDMI receiver input/output ports: 1x HDMI socket/1x CAT6
4) Power supply: DC 5V~12V
5) ESD protection human model: 8kV (air discharge), 4kV (contact discharge)
6) Dimensions (mm): 65mm X 100mm X 25mm
7) Operating temperature: 0°C ~ 40°C / 32°F ~ 104°F
8) Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
9) Relative humidity: 20~90% RH (non-condensing)
