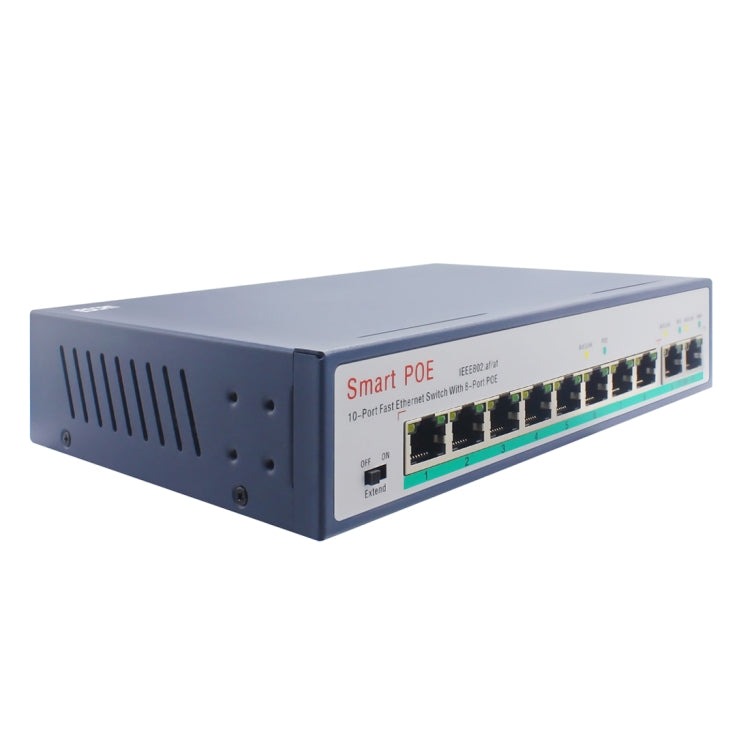

Lisslune | ESCAM POE 8+2 10-Port Fast Ethernet Switch 8-Port POE 10/100M 120W Network Switch, Transmission Distance: 150m(Blue)
Regular price£109.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
About the Product
1. The PSE series PoE switches are on par with traditional switches concerning cost and installation options, suitable for both wall mounting and desktop setups. In contrast to common household switches that function within the temperature range of 0 °C to 50 °C, these switches are specifically engineered for continuous use in network settings, such as IP security installations.
2. Every model ensures reliable performance and is fitted with dual surge protection circuits, resulting in a mean time between failures (MTBF) of 150,000 hours. Such features are generally not found in typical business switches available today.
3. The compact aluminum construction of the PSE series switches is designed for efficient placement in small power supply enclosures, making them ideal for smaller endeavors or home security configurations.
Features
1. The aluminum structure supports both wall and desktop mounting.
2. A cutting-edge heat dissipation design along with a wide operating temperature range of -30 °C to 70 °C.
3. An MTBF reaching up to 150,000 hours, tailored for surveillance systems requiring 24/7 functionality.
4. Maximum PoE output of up to 20W for each port.
5. Easy plug-and-play installation; set up is straightforward, even for those without technical expertise.
Standards
- IEEE 802.3af & IEEE 802.3at Power over Ethernet
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3x flow control and backpressure
- IEEE 802.1d Spanning Tree Protocol
- IEEE 802.1Q VLAN tagging
- IEEE 802.1x port authentication and network access control
- FCC Part 15 Class A, CE

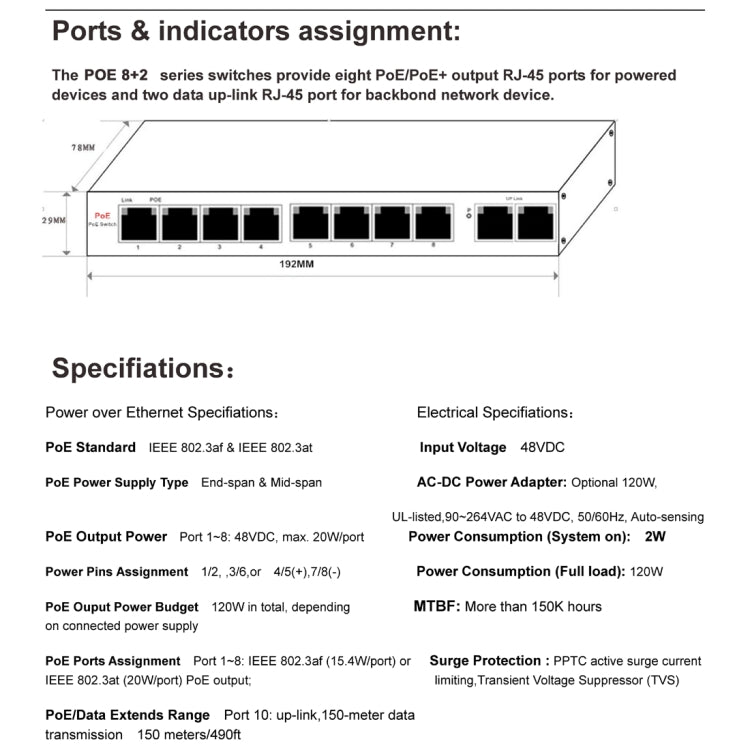

Power Supply
1. Power over Ethernet:
- PoE standard: IEEE 802.3af & IEEE 802.3at.
- PoE power supply mode: End-span & Mid-span.
- PoE output power: Ports 1~8 offer 48VDC, max. 20W/Port.
- Power pin allocation specifics: 1/2, 3/6 or 4/5(+), 7/8(-).
- Overall PoE output power budget: total of 120W, contingent on the power supply connected.
- PoE port specifics: Ports 1~8 carry IEEE 802.3af (15.4W/Port) or IEEE 802.3at (20W/Port) PoE output.
- PoE/Data transmission range extension: Port 10 acts as uplink, facilitating data transfer up to 150 meters/490ft.
2. Electrical:
- Input voltage: DC 48V.
- AC-DC power supply: Optionally provides 120W, UL certified, converting 90~264VAC to 48VDC, 50/60Hz, with automatic detection.
- Power consumption (system active): 2W.
- Power demand (full load): 120W.
- MTBF: Exceeding 150,000 hours.
- Overvoltage safeguards: PPTC active overcurrent protection, Transient Voltage Suppressor (TVS).
1. The PSE series PoE switches are on par with traditional switches concerning cost and installation options, suitable for both wall mounting and desktop setups. In contrast to common household switches that function within the temperature range of 0 °C to 50 °C, these switches are specifically engineered for continuous use in network settings, such as IP security installations.
2. Every model ensures reliable performance and is fitted with dual surge protection circuits, resulting in a mean time between failures (MTBF) of 150,000 hours. Such features are generally not found in typical business switches available today.
3. The compact aluminum construction of the PSE series switches is designed for efficient placement in small power supply enclosures, making them ideal for smaller endeavors or home security configurations.
Features
1. The aluminum structure supports both wall and desktop mounting.
2. A cutting-edge heat dissipation design along with a wide operating temperature range of -30 °C to 70 °C.
3. An MTBF reaching up to 150,000 hours, tailored for surveillance systems requiring 24/7 functionality.
4. Maximum PoE output of up to 20W for each port.
5. Easy plug-and-play installation; set up is straightforward, even for those without technical expertise.
Standards
- IEEE 802.3af & IEEE 802.3at Power over Ethernet
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3x flow control and backpressure
- IEEE 802.1d Spanning Tree Protocol
- IEEE 802.1Q VLAN tagging
- IEEE 802.1x port authentication and network access control
- FCC Part 15 Class A, CE
Power Supply
1. Power over Ethernet:
- PoE standard: IEEE 802.3af & IEEE 802.3at.
- PoE power supply mode: End-span & Mid-span.
- PoE output power: Ports 1~8 offer 48VDC, max. 20W/Port.
- Power pin allocation specifics: 1/2, 3/6 or 4/5(+), 7/8(-).
- Overall PoE output power budget: total of 120W, contingent on the power supply connected.
- PoE port specifics: Ports 1~8 carry IEEE 802.3af (15.4W/Port) or IEEE 802.3at (20W/Port) PoE output.
- PoE/Data transmission range extension: Port 10 acts as uplink, facilitating data transfer up to 150 meters/490ft.
2. Electrical:
- Input voltage: DC 48V.
- AC-DC power supply: Optionally provides 120W, UL certified, converting 90~264VAC to 48VDC, 50/60Hz, with automatic detection.
- Power consumption (system active): 2W.
- Power demand (full load): 120W.
- MTBF: Exceeding 150,000 hours.
- Overvoltage safeguards: PPTC active overcurrent protection, Transient Voltage Suppressor (TVS).
