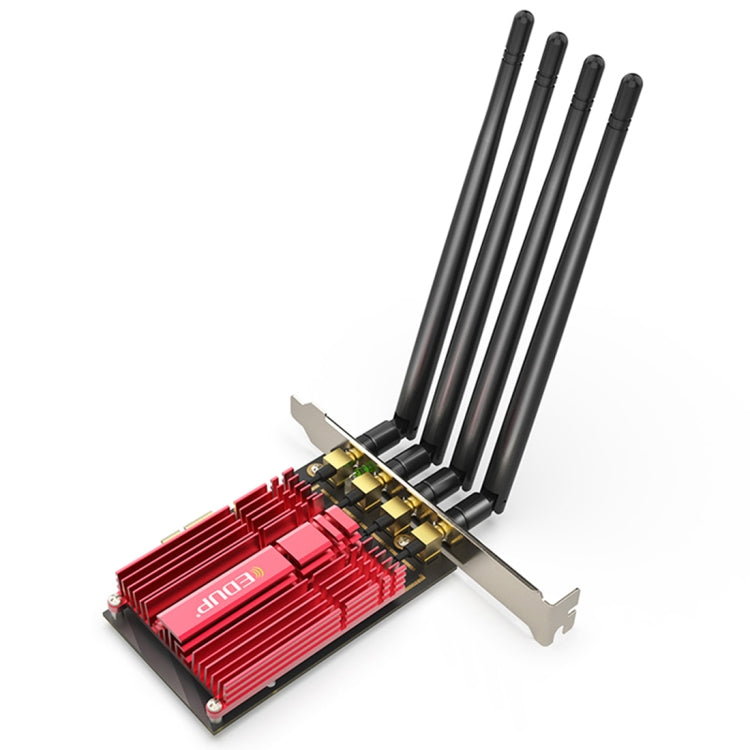

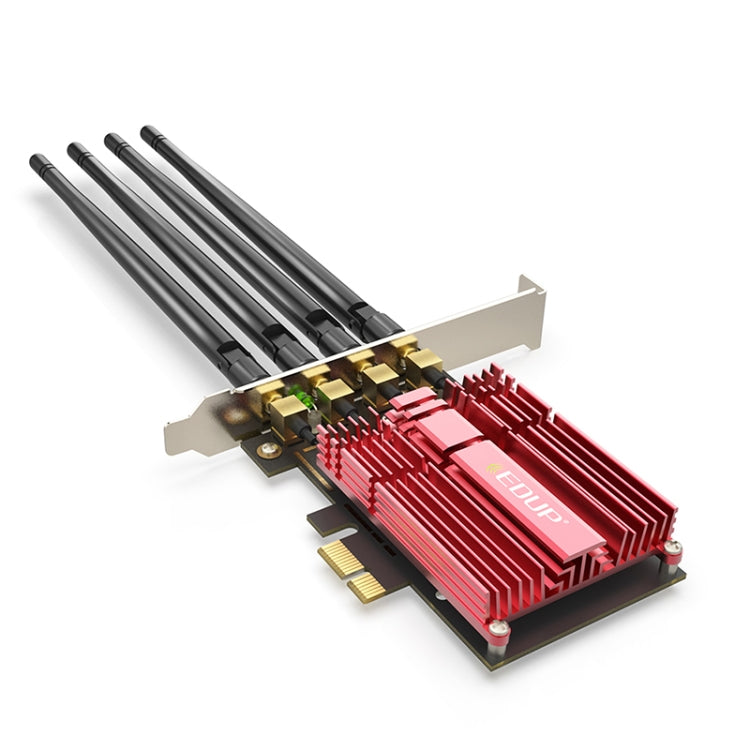

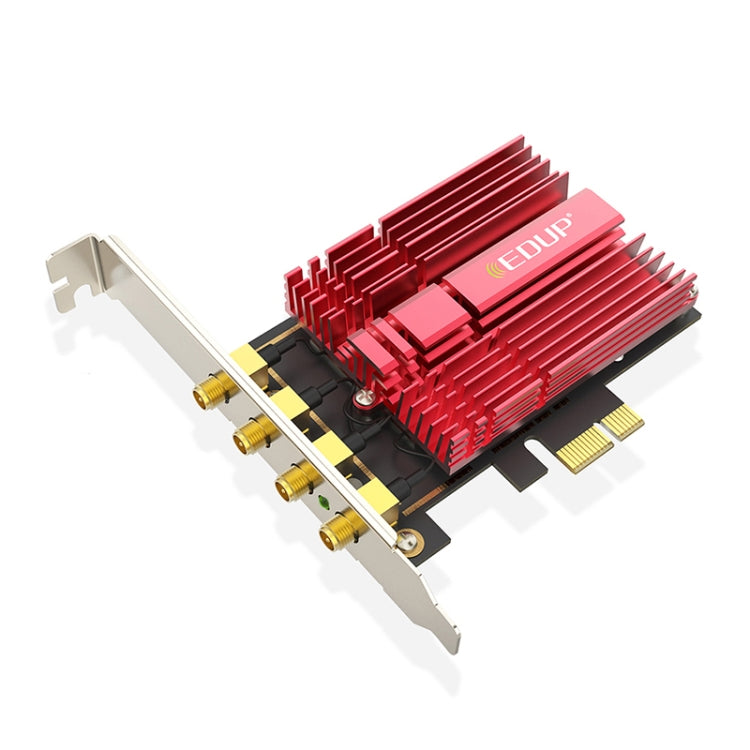

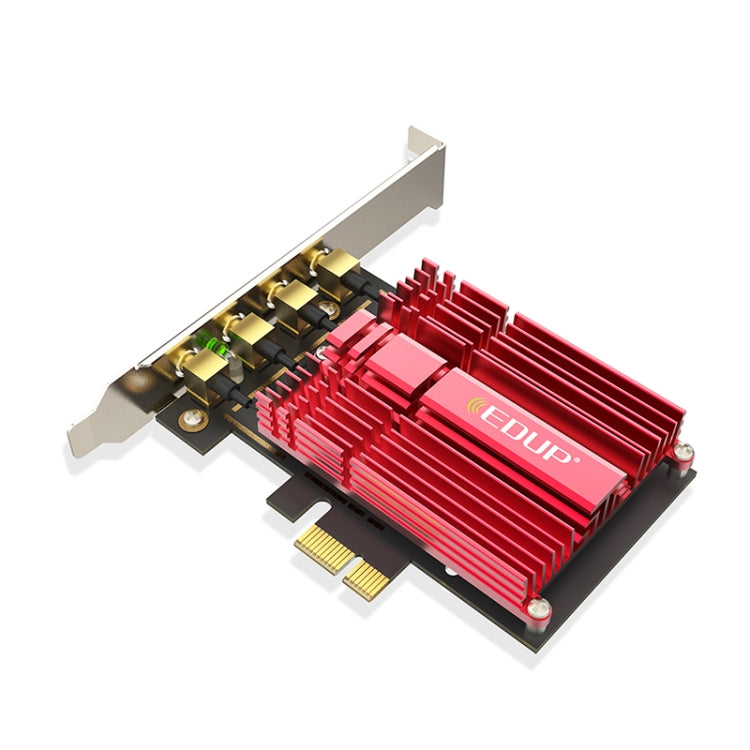

Lisslune | EDUP 9633-800 AC1900Mbps 2.4GHz & 5GHz Dual Band PCI-Express Adapter 4 External Antenna Network Card
Regular price£119.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
1. Interface: PCI-Express.
2. Antenna: 4x5dBi omnidirectional detachable antenna.
3. Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b.
4. Frequency: 5.180-5.240 GHz, 5.745-5.825 GHz / 2.4 GHz - 2.484 GHz.
5. Transmission Speed: 5GHz: 11ac: Up to 1300Mbps (dynamic), 2.4GHz: 11n: Up to 600Mbps (dynamic).
6. Reception Sensitivity 5GHz: 11a 6Mbps: -85dBm. 11a 54Mbps: -68dBm. 11ac HT20: -59dBm. 11ac HT40: -54dBm. 11ac HT80: -51dBm.
7. Reception Sensitivity 2.4GHz: 11b 11Mbps: -80dBm. 11g 54Mbps: -68dBm. 11n HT20: -64dBm. 11n HT40: -61dBm.
8. Transmit Power: lower than 20dBm (EIRP).
9. Wireless Mode: Ad-Hoc / Infrastructure mode.
10. Security: Compatibility with 64/128 Bit WEP, WPA-PSK / WPA2-PSK, 802.1x.
11. Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM.
12. Supported Operating Systems: Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP.
13. Operating Temperature: 0-40 degrees Celsius.
14. Storage Temperature: -40-70 degrees Celsius.
15. Operating Humidity: 10% to 90% without condensation.
16. Storage Humidity: 5 to 90 percent without condensation.
To properly install the adapter in your computer, please follow these steps:
1. Shut down your computer and unplug the power cord along with any other devices from your computer.
2. Take off the outer casing cover. Identify the available PCI-E slot and remove its slot cover.
3. Gently place the adapter into the PCI-E slot and secure it using the retaining screws.
4. Replace the casing cover.
5. Attach the antenna.
6. Plug the power cord back in and power on the computer.
2. Antenna: 4x5dBi omnidirectional detachable antenna.
3. Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b.
4. Frequency: 5.180-5.240 GHz, 5.745-5.825 GHz / 2.4 GHz - 2.484 GHz.
5. Transmission Speed: 5GHz: 11ac: Up to 1300Mbps (dynamic), 2.4GHz: 11n: Up to 600Mbps (dynamic).
6. Reception Sensitivity 5GHz: 11a 6Mbps: -85dBm. 11a 54Mbps: -68dBm. 11ac HT20: -59dBm. 11ac HT40: -54dBm. 11ac HT80: -51dBm.
7. Reception Sensitivity 2.4GHz: 11b 11Mbps: -80dBm. 11g 54Mbps: -68dBm. 11n HT20: -64dBm. 11n HT40: -61dBm.
8. Transmit Power: lower than 20dBm (EIRP).
9. Wireless Mode: Ad-Hoc / Infrastructure mode.
10. Security: Compatibility with 64/128 Bit WEP, WPA-PSK / WPA2-PSK, 802.1x.
11. Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM.
12. Supported Operating Systems: Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP.
13. Operating Temperature: 0-40 degrees Celsius.
14. Storage Temperature: -40-70 degrees Celsius.
15. Operating Humidity: 10% to 90% without condensation.
16. Storage Humidity: 5 to 90 percent without condensation.
To properly install the adapter in your computer, please follow these steps:
1. Shut down your computer and unplug the power cord along with any other devices from your computer.
2. Take off the outer casing cover. Identify the available PCI-E slot and remove its slot cover.
3. Gently place the adapter into the PCI-E slot and secure it using the retaining screws.
4. Replace the casing cover.
5. Attach the antenna.
6. Plug the power cord back in and power on the computer.
