1. Compatible Standards: The interface adheres to EIA/TIA RS-485 and RS-422 specifications.
2. Material: Constructed from ABS.
3. Cable Structure: Features 24AWG wire, composed of 80 strands of braided tinned copper plus aluminum foil for dual shielding, alongside four pull wires, seven conductors, and an 8mm thick cable sheath, ensuring complete shielding.
4. Chip: Utilizes the FTDI-FT232RL and SP485 dual chip configuration.
5. Operating Mode: Supports asynchronous half-duplex communication and asynchronous full-duplex communication.
6. USB Signal: Includes VCC, DATA+, DATA-, GND.
7. RS-485/RS-422/DB9 Pin Signal: Contains T/R+, T/R-, GND.

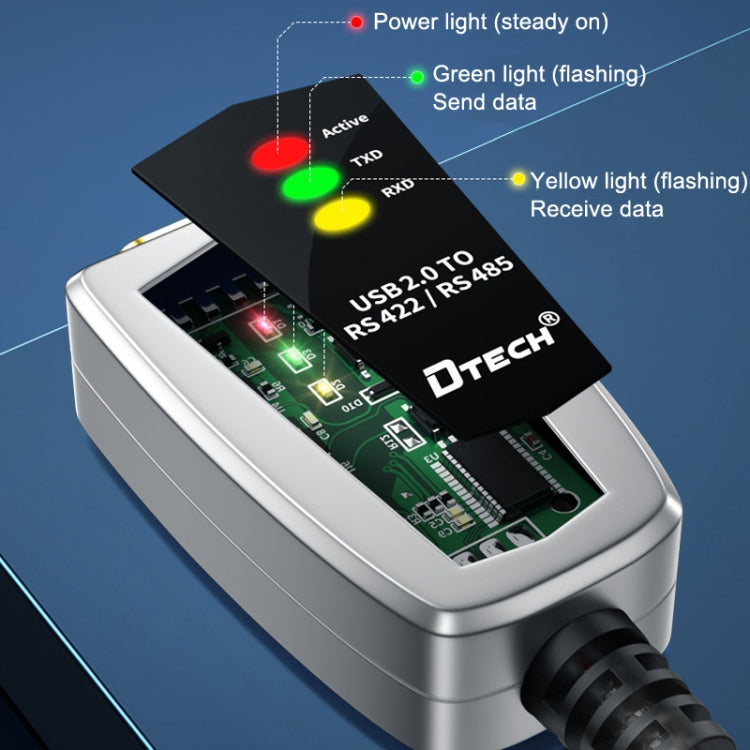

8. Signal Indicators: Red light indicates power, green light shows transmit signal, yellow light represents receive signal.
9. Communication Rate: Ranges from 300bps to 460800bps, with automatic detection of the serial port signal rate.
10. Communication Distance: Approximately 0-5 meters at the USB interface; around 0-1200 meters at the RS-485/RS-422 interface.
11. Number of Connectable Nodes: Accommodates up to 32 RS-485/RS-422 devices.
12. Communication Modes: RS-485 point-to-point half-duplex, RS-485 point-to-multipoint half-duplex, RS-422 point-to-point full-duplex, RS-422 point-to-multipoint full-duplex communication modes.
13. Protection Class: Approximately 15kV IEC1000-4-2 air discharge protection.
14. Surge and Overvoltage Protection: Offers 600W lightning protection.
15. Connection Method: Terminal devices can connect through twisted pairs or shielded cables.
16. Transmission Medium: Twisted pairs or shielded cables are used.

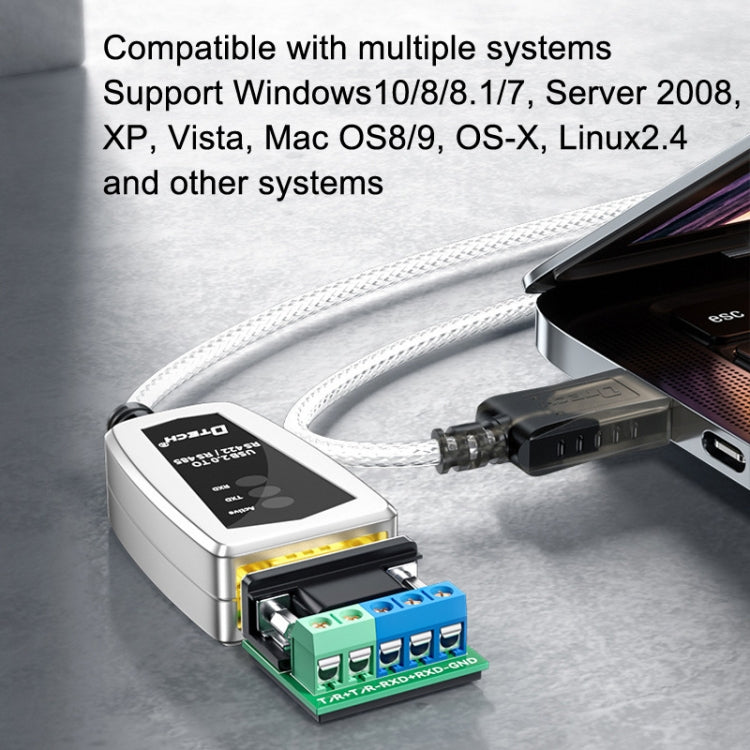

17. Supported Systems: Compatible with Windows 10/8/8.1/7, Server 2008, XP, Vista, Mac OS 8/9, OS-X, Linux 2.4, and several other systems.
18. Power Supply Mode: Powered via USB.
19. Voltage Range: Operates at 5V.
20. Operating Current: Consumes less than 300mA.
21. Application Scenarios: Ideal for industrial automation systems, access control systems, power control systems, parking systems, time attendance systems, industrial computers, PLC controllers, among others.
22. Weight: Weighs around 70g.

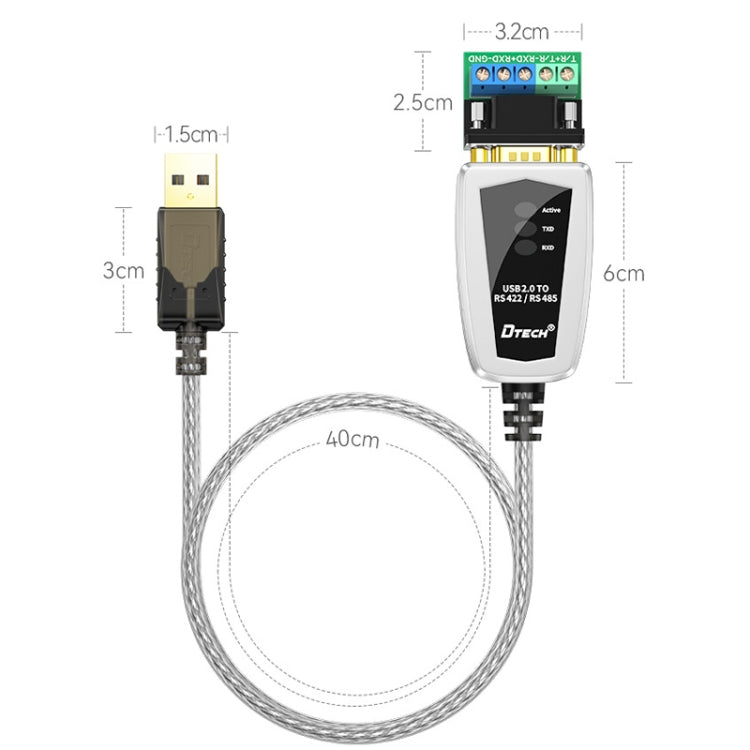

23. Length: Approximately 0.5m.
Features:

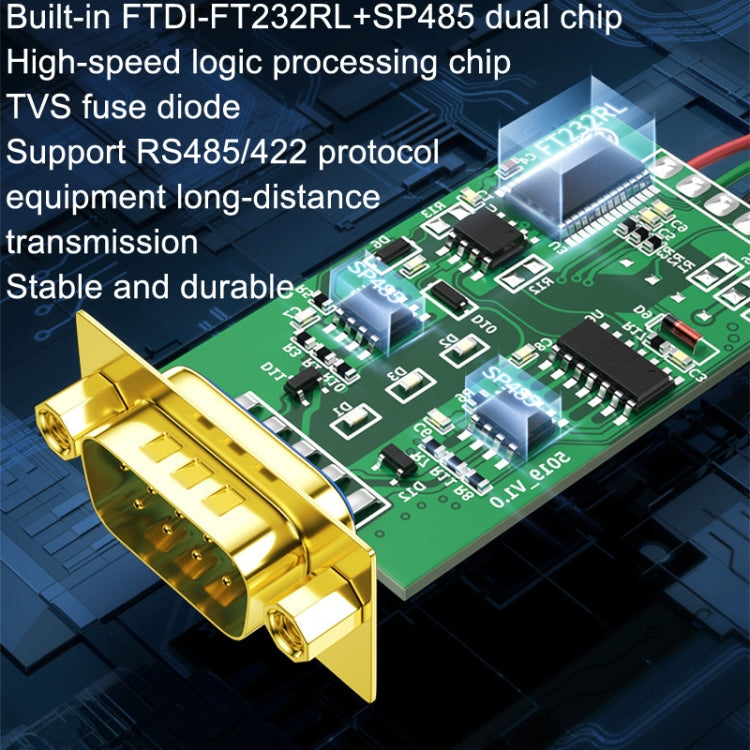

1. Integrated with FTDI-FT232RL and SP485 dual chip configuration for high-speed logic processing, including a TVS protection diode, designed for the long-distance transmission of RS485/422 protocol devices, ensuring reliability and endurance.

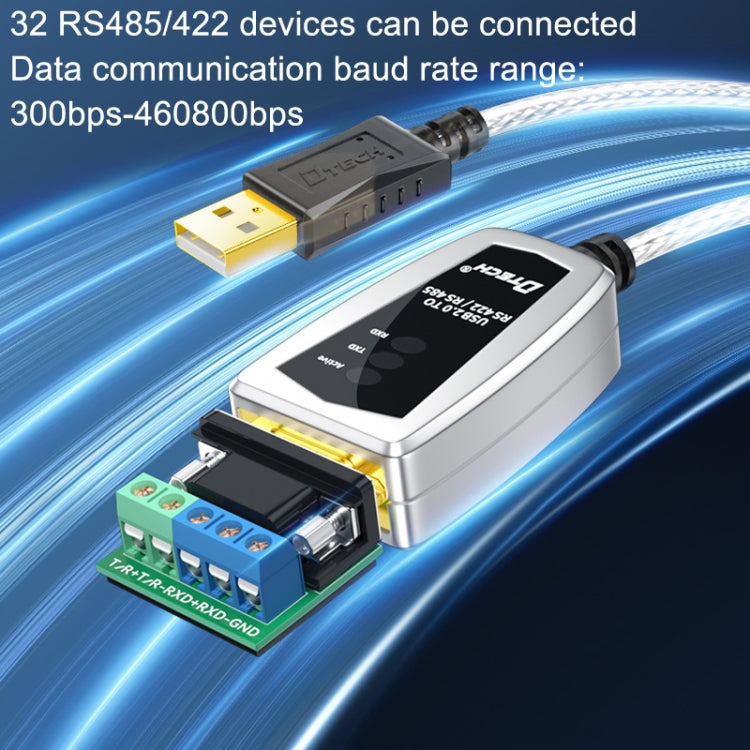

2. Capable of connecting up to 32 RS485/422 devices with a baud rate range facilitating data communication from about 300bps to 460800bps.
3. Broad application scope, suitable for connecting computers with various RS485/422 devices for bidirectional interactive data exchange.

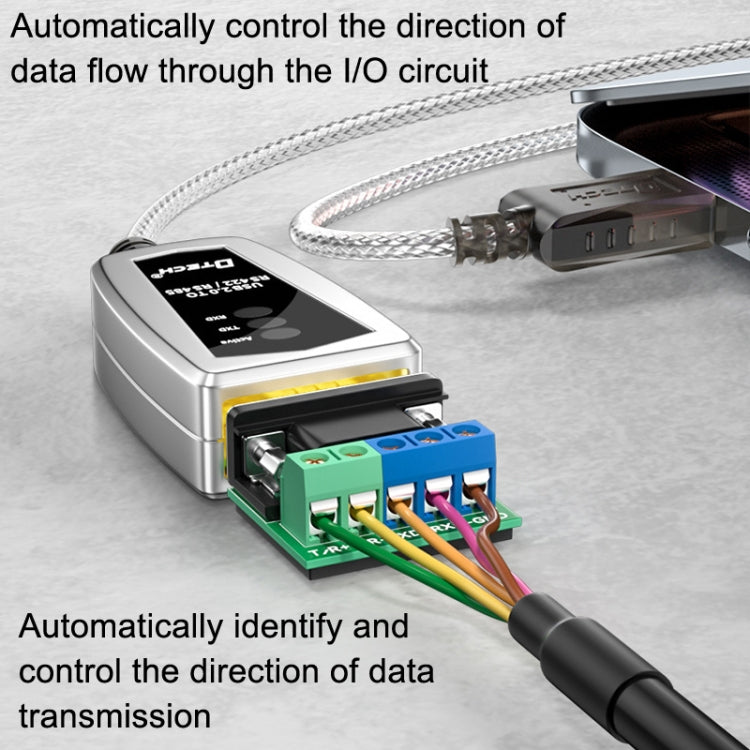

4. Automatic flow direction control of data through the I/O loop, independently determining and controlling the direction of data transmission.
5. Incorporates a zero-delay automatic sender-receiver converter, which detects the serial port signal rate automatically.
6. Supports various systems for enhanced compatibility, including Windows 10/8/8.1/7, Server 2008, XP, Vista, Mac OS 8/9, OS-X, Linux 2.4, and additional systems.
7. Equipped with safety features for lightning and overvoltage protection.
8. Features three types of data indicators for straightforward monitoring of operational status.
9. Utilizes 24AWG thick 80 braided tinned copper core, with tight shielding both internally and externally, to improve resistance to electromagnetic interference.
2. Material: Constructed from ABS.
3. Cable Structure: Features 24AWG wire, composed of 80 strands of braided tinned copper plus aluminum foil for dual shielding, alongside four pull wires, seven conductors, and an 8mm thick cable sheath, ensuring complete shielding.
4. Chip: Utilizes the FTDI-FT232RL and SP485 dual chip configuration.
5. Operating Mode: Supports asynchronous half-duplex communication and asynchronous full-duplex communication.
6. USB Signal: Includes VCC, DATA+, DATA-, GND.
7. RS-485/RS-422/DB9 Pin Signal: Contains T/R+, T/R-, GND.
8. Signal Indicators: Red light indicates power, green light shows transmit signal, yellow light represents receive signal.
9. Communication Rate: Ranges from 300bps to 460800bps, with automatic detection of the serial port signal rate.
10. Communication Distance: Approximately 0-5 meters at the USB interface; around 0-1200 meters at the RS-485/RS-422 interface.
11. Number of Connectable Nodes: Accommodates up to 32 RS-485/RS-422 devices.
12. Communication Modes: RS-485 point-to-point half-duplex, RS-485 point-to-multipoint half-duplex, RS-422 point-to-point full-duplex, RS-422 point-to-multipoint full-duplex communication modes.
13. Protection Class: Approximately 15kV IEC1000-4-2 air discharge protection.
14. Surge and Overvoltage Protection: Offers 600W lightning protection.
15. Connection Method: Terminal devices can connect through twisted pairs or shielded cables.
16. Transmission Medium: Twisted pairs or shielded cables are used.
17. Supported Systems: Compatible with Windows 10/8/8.1/7, Server 2008, XP, Vista, Mac OS 8/9, OS-X, Linux 2.4, and several other systems.
18. Power Supply Mode: Powered via USB.
19. Voltage Range: Operates at 5V.
20. Operating Current: Consumes less than 300mA.
21. Application Scenarios: Ideal for industrial automation systems, access control systems, power control systems, parking systems, time attendance systems, industrial computers, PLC controllers, among others.
22. Weight: Weighs around 70g.
23. Length: Approximately 0.5m.
Features:
1. Integrated with FTDI-FT232RL and SP485 dual chip configuration for high-speed logic processing, including a TVS protection diode, designed for the long-distance transmission of RS485/422 protocol devices, ensuring reliability and endurance.
2. Capable of connecting up to 32 RS485/422 devices with a baud rate range facilitating data communication from about 300bps to 460800bps.
3. Broad application scope, suitable for connecting computers with various RS485/422 devices for bidirectional interactive data exchange.
4. Automatic flow direction control of data through the I/O loop, independently determining and controlling the direction of data transmission.
5. Incorporates a zero-delay automatic sender-receiver converter, which detects the serial port signal rate automatically.
6. Supports various systems for enhanced compatibility, including Windows 10/8/8.1/7, Server 2008, XP, Vista, Mac OS 8/9, OS-X, Linux 2.4, and additional systems.
7. Equipped with safety features for lightning and overvoltage protection.
8. Features three types of data indicators for straightforward monitoring of operational status.
9. Utilizes 24AWG thick 80 braided tinned copper core, with tight shielding both internally and externally, to improve resistance to electromagnetic interference.
