Introduction:
The MINI HDMI to SDI converter enables the visualization of SD-SDI, HD-SDI, and 3G-SDI formats on an HDMI display, delivering an impressive data transfer rate of 2.970 Gbit/s, which allows for swift transmission of signals without degradation. For industry professionals, this advancement means that with the integrated HDMI converter, it is easier than ever to distribute and extend 3G SDI signals while presenting their projects on HDMI screens.
Feature:
1. Operating rates of 2.970 Gbit/s, 1.485 Gbit/s, and 270 Mbit/s
2. Compatible with SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Built-in loop output with audio de-embedding capabilities, providing synchronization and time feedback, catering to up to 8 channels of 48 KHz audio
4. Converts from SMPTE 425M Class B to Class A 1080p 50 / 59.94 / 60 4:2:2 10-Bit
5. Connects with other devices to prolong signal distance
Specification:
1. Input port: 1 x HDMI
2. Output port: 1 x BNC (SDI / HD-SDI / 3G-SDI)
3. SDI transmission rates: 2.970 Gbit/s and 2.970 / 1.001 Gbit/s
4. Input/Output resolutions: 480i, 576i, 720p @ 50 / 59.94, 60, 1080i @ 50 / 59.94 / 60, 1080p @ 23.97/24/25/29.97/30/50/59.94/60
5. Power supply: DC 5V -12V
6. ESD protection level for human contact: ?± 8kV (air discharge), ?± 4kV (contact discharge)
7. Dimensions: 80mm x 41mm x 22.5 mm
8. Weight: 105g
9. Operating temperature: 0 ?° C-40 ?° C
10. Storage temperature: -20 degrees Celsius to -60 degrees Celsius
11. Power consumption: maximum 5W

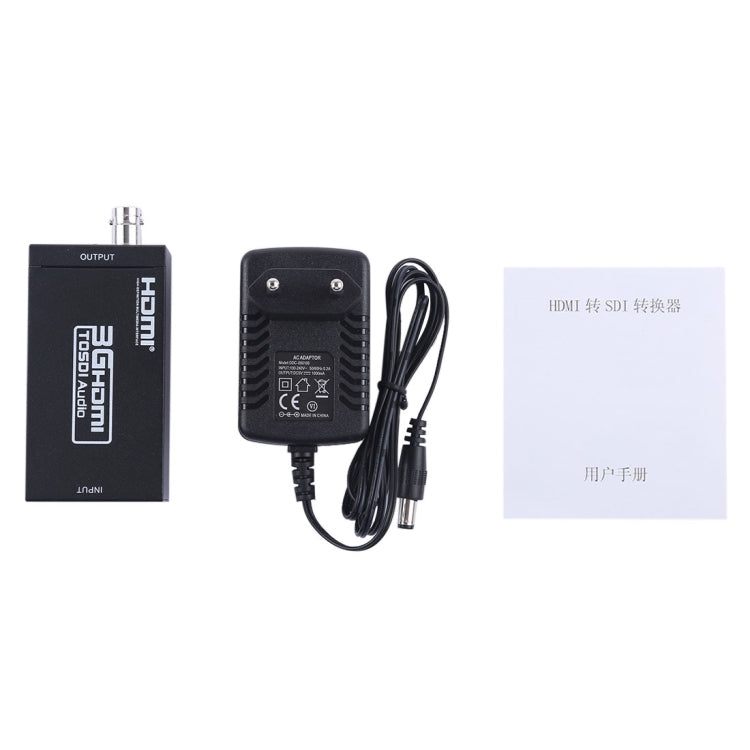

Packaging list:
3G HDMI to SDI Converter x 1
5V DC Power Adapter x 1
User Manual x 1
The MINI HDMI to SDI converter enables the visualization of SD-SDI, HD-SDI, and 3G-SDI formats on an HDMI display, delivering an impressive data transfer rate of 2.970 Gbit/s, which allows for swift transmission of signals without degradation. For industry professionals, this advancement means that with the integrated HDMI converter, it is easier than ever to distribute and extend 3G SDI signals while presenting their projects on HDMI screens.
Feature:
1. Operating rates of 2.970 Gbit/s, 1.485 Gbit/s, and 270 Mbit/s
2. Compatible with SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Built-in loop output with audio de-embedding capabilities, providing synchronization and time feedback, catering to up to 8 channels of 48 KHz audio
4. Converts from SMPTE 425M Class B to Class A 1080p 50 / 59.94 / 60 4:2:2 10-Bit
5. Connects with other devices to prolong signal distance
Specification:
1. Input port: 1 x HDMI
2. Output port: 1 x BNC (SDI / HD-SDI / 3G-SDI)
3. SDI transmission rates: 2.970 Gbit/s and 2.970 / 1.001 Gbit/s
4. Input/Output resolutions: 480i, 576i, 720p @ 50 / 59.94, 60, 1080i @ 50 / 59.94 / 60, 1080p @ 23.97/24/25/29.97/30/50/59.94/60
5. Power supply: DC 5V -12V
6. ESD protection level for human contact: ?± 8kV (air discharge), ?± 4kV (contact discharge)
7. Dimensions: 80mm x 41mm x 22.5 mm
8. Weight: 105g
9. Operating temperature: 0 ?° C-40 ?° C
10. Storage temperature: -20 degrees Celsius to -60 degrees Celsius
11. Power consumption: maximum 5W
Packaging list:
3G HDMI to SDI Converter x 1
5V DC Power Adapter x 1
User Manual x 1
