About this product:
The MINI SDI to HDMI converter enables you to project SD-SDI, HD-SDI, and 3G-SDI signals onto HDMI displays, offering a high data throughput of 2.970 Gbit/s for swift signal delivery with no degradation in quality. This functionality allows professionals to effortlessly distribute and extend 3G SDI signals through the built-in HDMI converter, making it simple to showcase their content on HDMI screens.
Features:
1. Data rates available: 2.970 Gbit/s, 1.485 Gbit/s, and 270 Mbit/s
2. Compliance with SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Built-in loop output with audio de-embedder that supports up to 8 channels and 48 kHz audio with equalization and retiming capabilities
4. Converts SMPTE 425M Class B signals to Class A 1080p 50/59.94/60 4:2:2 10-Bit
5. Facilitates connections to additional devices for extended signal transmission
Parameters:
1. Input connection: 1 x BNC (SDI / HD-SDI / 3G-SDI)
2. Output connection: 1 x HDMI
3. SDI transmission rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
4. Input/output resolutions supported: 480i, 576i, 720p @ 50/59.94, 60, 1080i @ 50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60
5. Power supply: DC 5V - 12V
6. ESD protection based on human model: ± 8kV (air discharge), ± 4kV (contact discharge)
7. Dimensions: 80 mm x 41 mm x 22.5 mm
8. Weight: 102 g
9. Operating temperature range: 0 °C - 40 °C / 32 °F - 104 °F
10. Storage temperature range: -20 °C - 60 °C / -4 °F - 140 °F
11. Power consumption: up to 5W

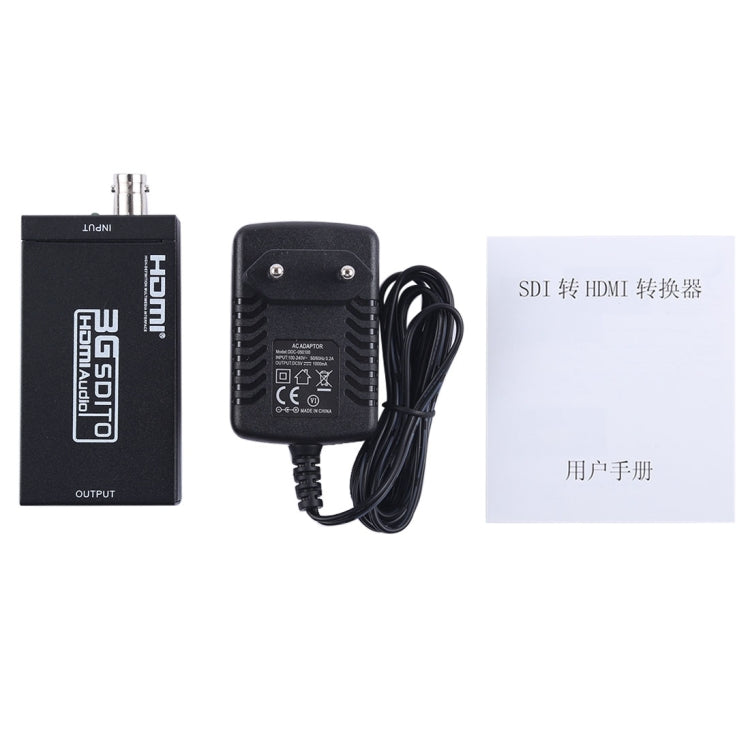

Package includes:
3G SDI to HDMI converter x 1
5V DC power adapter x 1
User manual x 1
The MINI SDI to HDMI converter enables you to project SD-SDI, HD-SDI, and 3G-SDI signals onto HDMI displays, offering a high data throughput of 2.970 Gbit/s for swift signal delivery with no degradation in quality. This functionality allows professionals to effortlessly distribute and extend 3G SDI signals through the built-in HDMI converter, making it simple to showcase their content on HDMI screens.
Features:
1. Data rates available: 2.970 Gbit/s, 1.485 Gbit/s, and 270 Mbit/s
2. Compliance with SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Built-in loop output with audio de-embedder that supports up to 8 channels and 48 kHz audio with equalization and retiming capabilities
4. Converts SMPTE 425M Class B signals to Class A 1080p 50/59.94/60 4:2:2 10-Bit
5. Facilitates connections to additional devices for extended signal transmission
Parameters:
1. Input connection: 1 x BNC (SDI / HD-SDI / 3G-SDI)
2. Output connection: 1 x HDMI
3. SDI transmission rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
4. Input/output resolutions supported: 480i, 576i, 720p @ 50/59.94, 60, 1080i @ 50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60
5. Power supply: DC 5V - 12V
6. ESD protection based on human model: ± 8kV (air discharge), ± 4kV (contact discharge)
7. Dimensions: 80 mm x 41 mm x 22.5 mm
8. Weight: 102 g
9. Operating temperature range: 0 °C - 40 °C / 32 °F - 104 °F
10. Storage temperature range: -20 °C - 60 °C / -4 °F - 140 °F
11. Power consumption: up to 5W
Package includes:
3G SDI to HDMI converter x 1
5V DC power adapter x 1
User manual x 1
