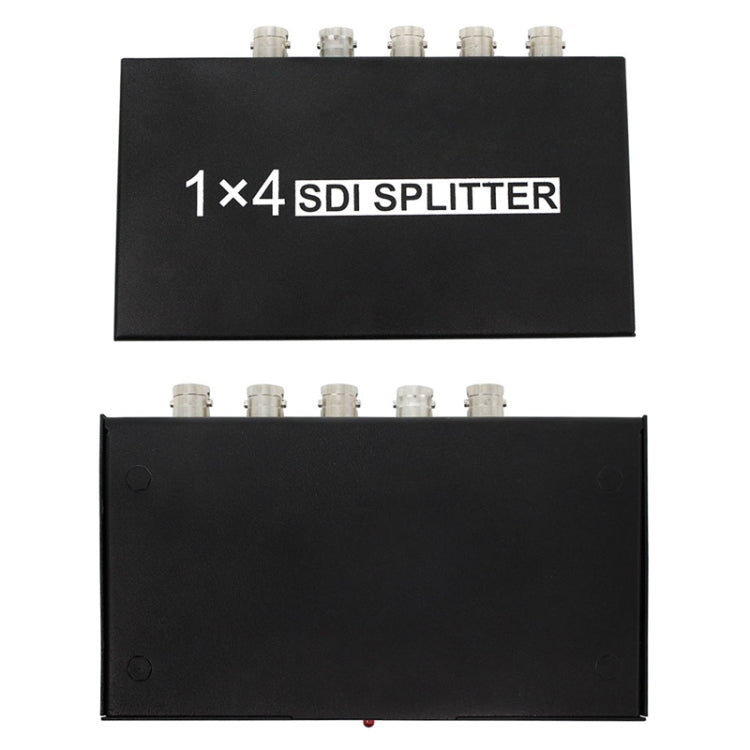

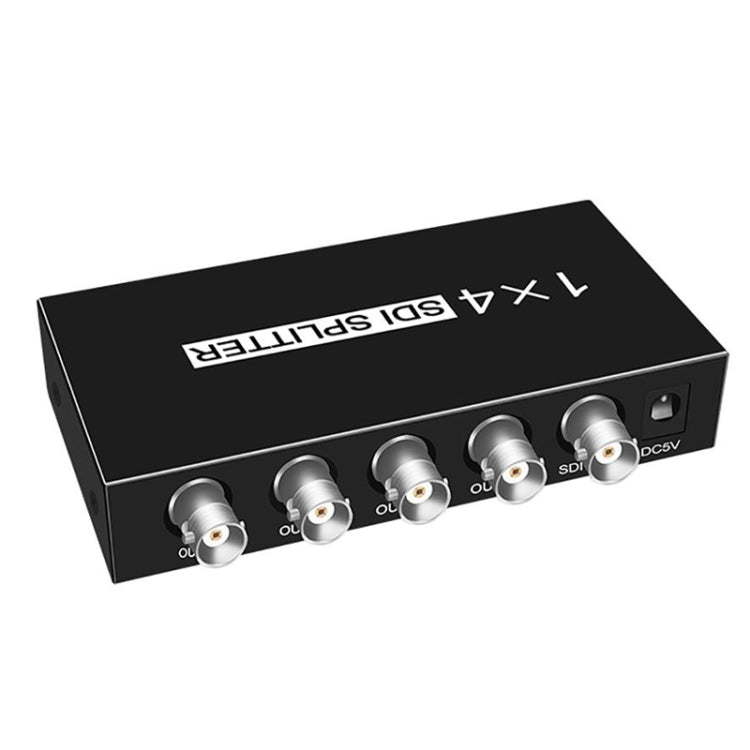

Lisslune | 1 In 4 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (UK Plug)
Regular price£130.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
1. SDI output connection: BNC SDI×2 SDI×4 SDI×8
2. Supported SDI standards: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. SDI signal types: SD-SDI HD-SDI 3G-SDI
4. Transmission rates for SDI: 143-2970MB/S
5. Impedance for SDI: 75 Ohm
6. Supported resolutions: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. Output signal amplitude for SDI: 800mVp-p

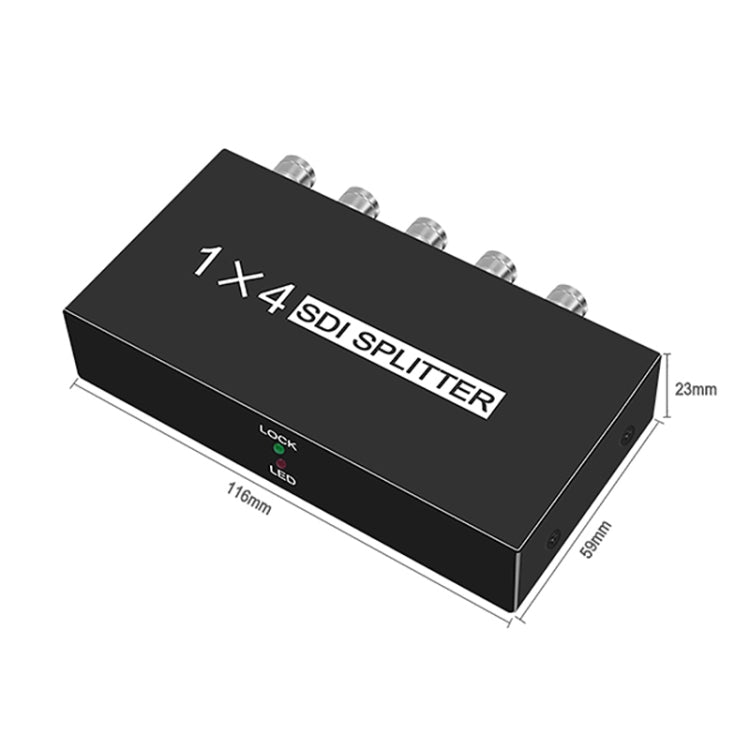

8. Product dimensions: 116 x 59 x 23mm
Installation instructions:

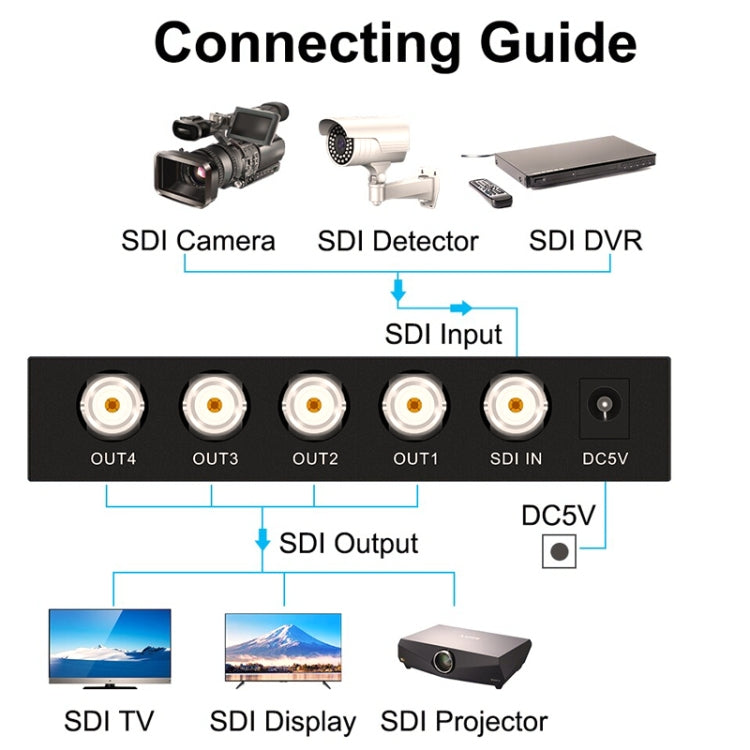

1. Connect the SDI input port to the SDI signal source using a coaxial cable
2. Link the SDI output to other display devices that take in SDI signal
3. Turn on the device, and it will start functioning
Functional overview:

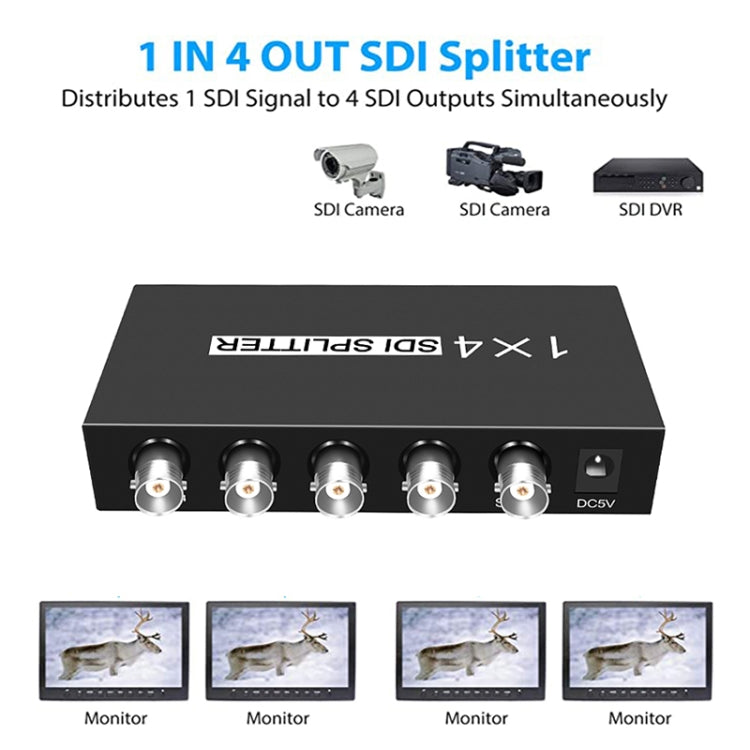

1. SDI distribution capability: Follow the three "Installation instructions," and the SDI splitter will operate normally. This splitter is designed to manage SD-SDI (270Mbps), high-definition HD-SDI (1.485Gbps), and full HD 3G-SDI (2.97 Gbps) video formats for efficient SDI video distribution

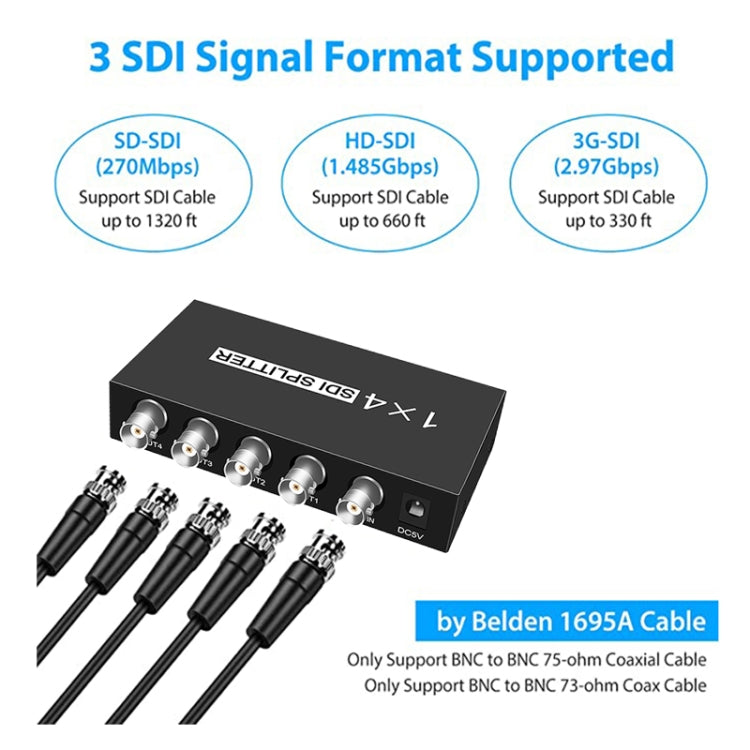

2. Extension capability: This device supports cable runs of up to (Belden-1694A); with SDI input and output specifications: SD can reach up to 400m, HD can reach 200m, and 3G can reach 100m (theoretical limits, actual distances may vary with cable quality)

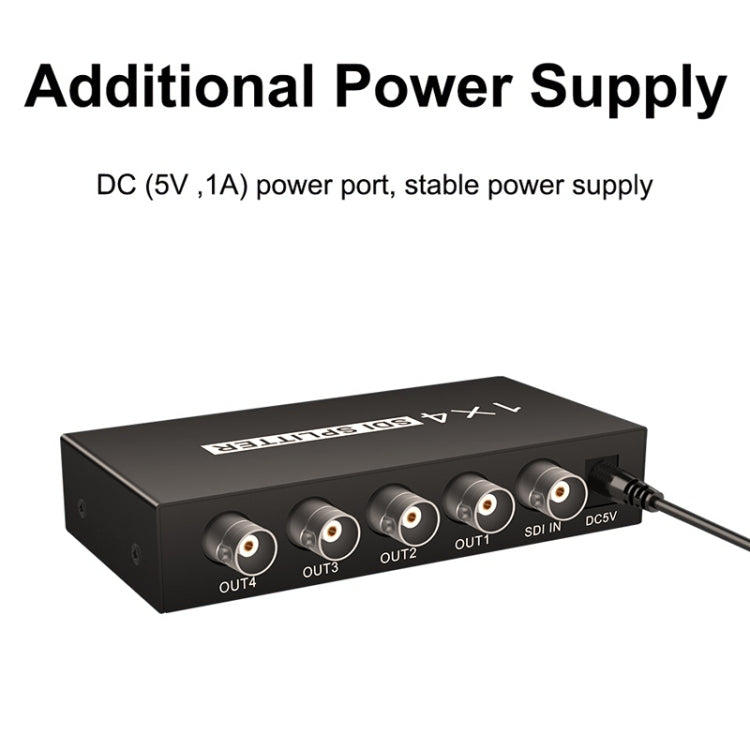

3. Wide voltage functionality: Features a wide voltage input range, accommodating DC5V~36V (with a maximum power of 2W)

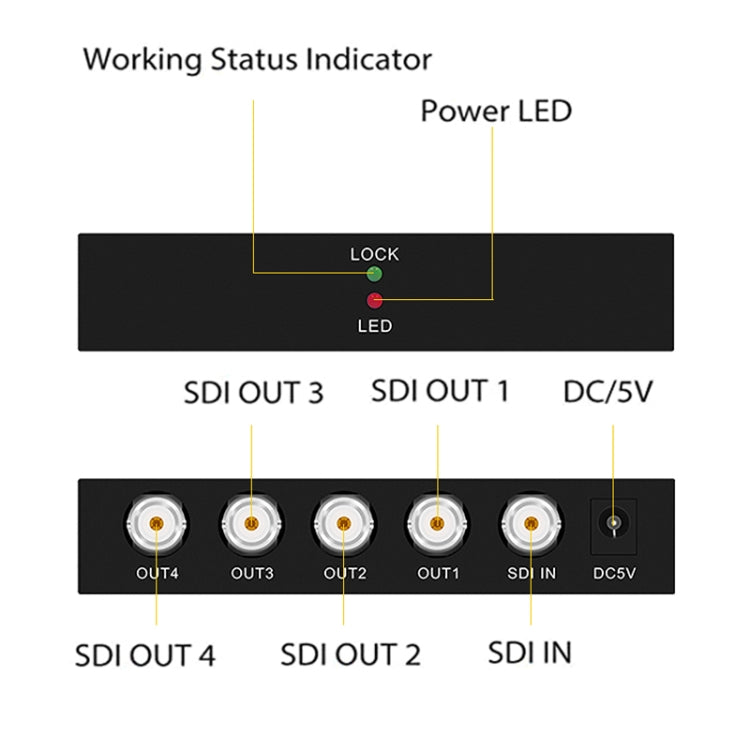

4. Intelligent features: Employs hardware processing for straightforward plug-and-play use, automatically recognizing various SDI signals. The LED indicator glows green in the presence of a valid SDI signal. If the signal is absent or not standard-compliant, the LED will turn off, aiding engineers in troubleshooting.
2. Supported SDI standards: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. SDI signal types: SD-SDI HD-SDI 3G-SDI
4. Transmission rates for SDI: 143-2970MB/S
5. Impedance for SDI: 75 Ohm
6. Supported resolutions: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. Output signal amplitude for SDI: 800mVp-p
8. Product dimensions: 116 x 59 x 23mm
Installation instructions:
1. Connect the SDI input port to the SDI signal source using a coaxial cable
2. Link the SDI output to other display devices that take in SDI signal
3. Turn on the device, and it will start functioning
Functional overview:
1. SDI distribution capability: Follow the three "Installation instructions," and the SDI splitter will operate normally. This splitter is designed to manage SD-SDI (270Mbps), high-definition HD-SDI (1.485Gbps), and full HD 3G-SDI (2.97 Gbps) video formats for efficient SDI video distribution
2. Extension capability: This device supports cable runs of up to (Belden-1694A); with SDI input and output specifications: SD can reach up to 400m, HD can reach 200m, and 3G can reach 100m (theoretical limits, actual distances may vary with cable quality)
3. Wide voltage functionality: Features a wide voltage input range, accommodating DC5V~36V (with a maximum power of 2W)
4. Intelligent features: Employs hardware processing for straightforward plug-and-play use, automatically recognizing various SDI signals. The LED indicator glows green in the presence of a valid SDI signal. If the signal is absent or not standard-compliant, the LED will turn off, aiding engineers in troubleshooting.
