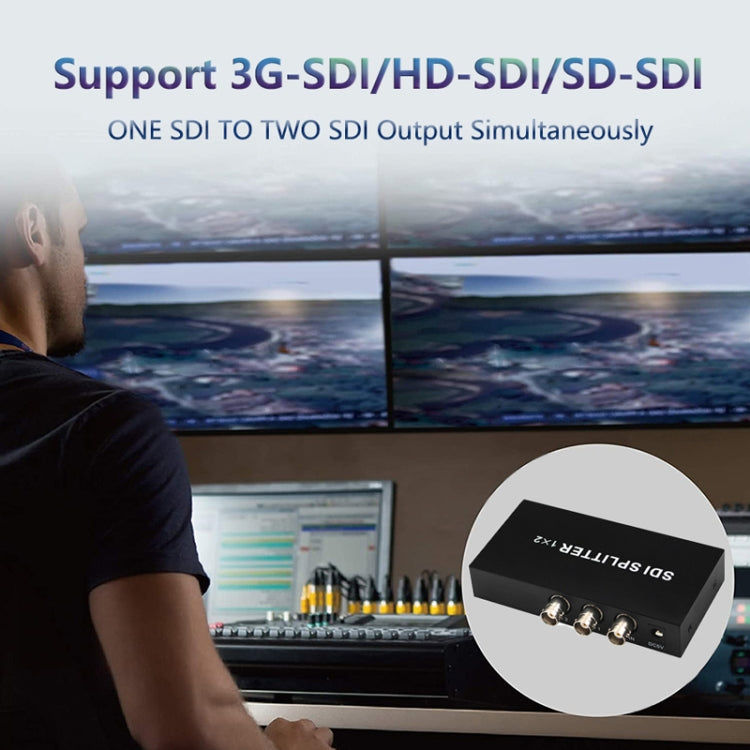

Lisslune | 1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (US Plug)
Regular price£130.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
1. SDI output connections: BNC SDI×2 SDI×4 SDI×8
2. Supported SDI specifications: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. SDI signal types: SD-SDI, HD-SDI, 3G-SDI
4. Supported SDI bandwidth: 143-2970MB/S
5. SDI impedance: 75 Ohm
6. Supported resolutions: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI output signal strength: 800mVp-p

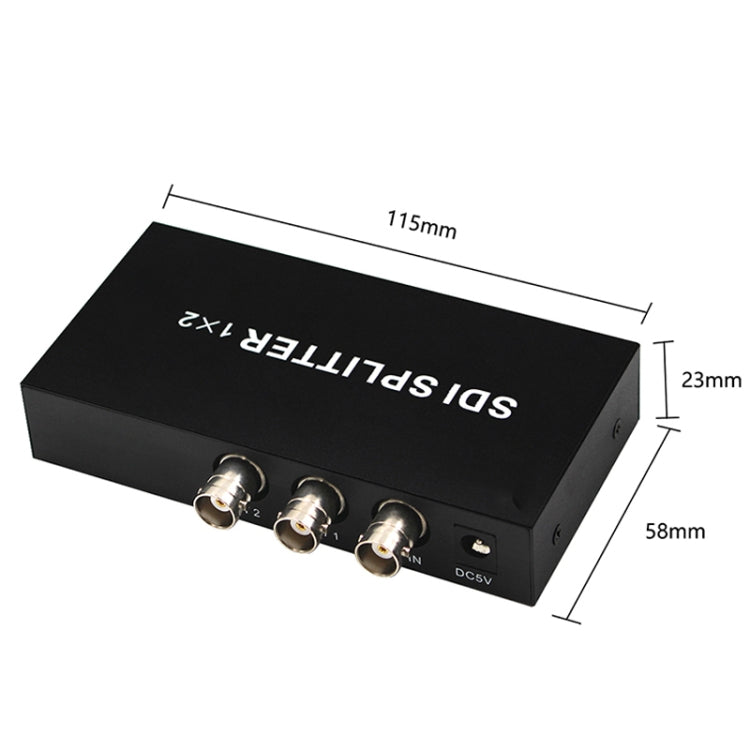

8. Dimensions: 115 x 58 x 23 mm
Installation instructions:

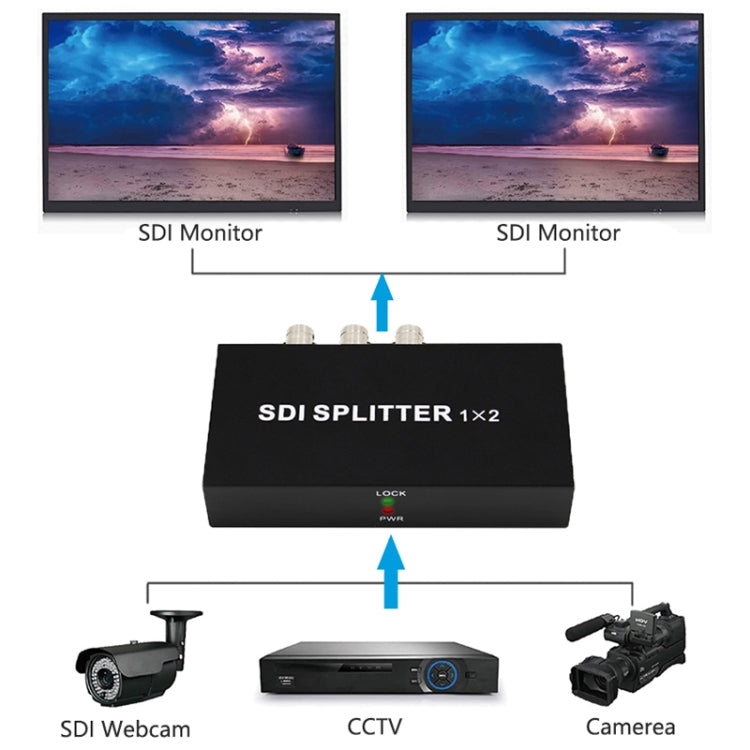

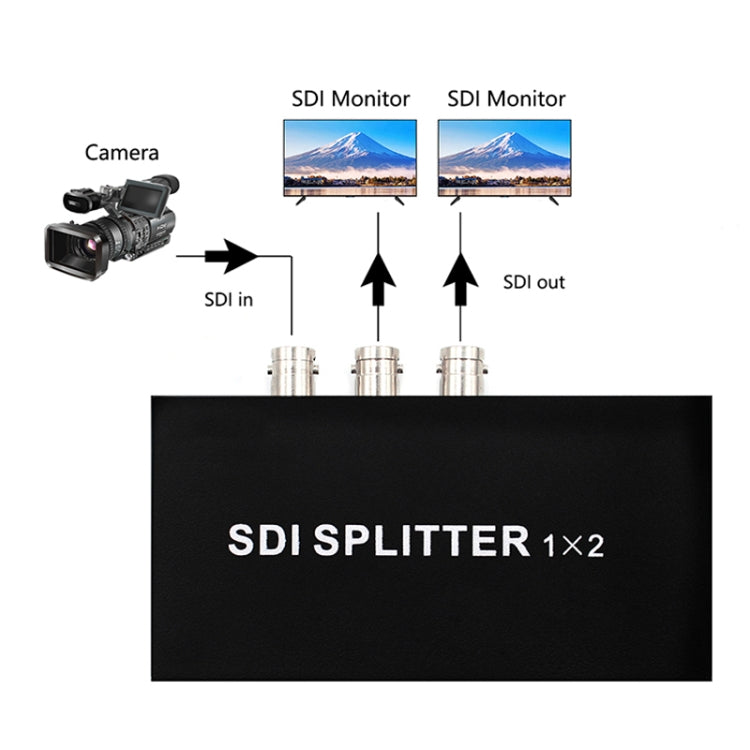

1. Connect the SDI input interface to the SDI signal source with a coaxial cable.
2. Link the SDI output to other display devices that support SDI signals.
3. Turn on the device to commence operation.
Functionality overview:
1. SDI distribution capability: Adhere to the three "Installation instructions" for hardware connectivity, and the SDI splitter will operate as intended. This splitter is compatible with SD-SDI (270Mbps), HD-SDI (1,485Gbps), and 3G-SDI (2.97 Gbps) video formats for efficient SDI video distribution.
2. Extension capability: This device supports cables up to (Belden-1694A); the distances for SDI input and output are: SD allows for 400m, HD allows for 200m, and 3G supports up to 100m (theoretical values; actual distances may vary based on cable quality).
3. Wide voltage support: Equipped with a wide voltage interface, accepting DC5V~36V input (maximum power capacity of 2W).

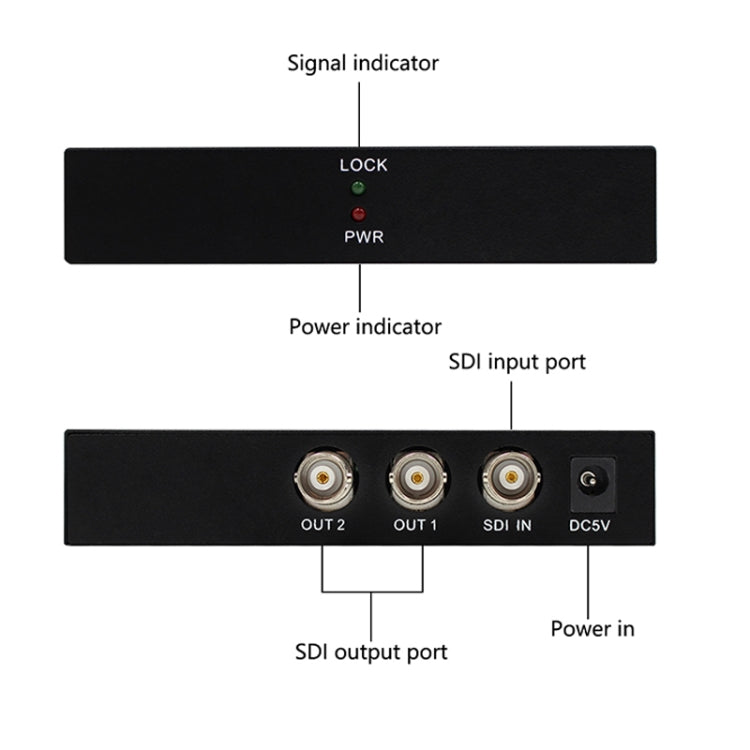

4. Smart design: Employs pure hardware processing for seamless plug-and-play functionality and can automatically recognize various SDI signals. When a valid SDI signal is detected, the LED indicator lights up green. If there is no signal or the signal fails to meet standards, the LED indicator will turn off, helping engineers easily diagnose problems.
2. Supported SDI specifications: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. SDI signal types: SD-SDI, HD-SDI, 3G-SDI
4. Supported SDI bandwidth: 143-2970MB/S
5. SDI impedance: 75 Ohm
6. Supported resolutions: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI output signal strength: 800mVp-p
8. Dimensions: 115 x 58 x 23 mm
Installation instructions:
1. Connect the SDI input interface to the SDI signal source with a coaxial cable.
2. Link the SDI output to other display devices that support SDI signals.
3. Turn on the device to commence operation.
Functionality overview:
1. SDI distribution capability: Adhere to the three "Installation instructions" for hardware connectivity, and the SDI splitter will operate as intended. This splitter is compatible with SD-SDI (270Mbps), HD-SDI (1,485Gbps), and 3G-SDI (2.97 Gbps) video formats for efficient SDI video distribution.
2. Extension capability: This device supports cables up to (Belden-1694A); the distances for SDI input and output are: SD allows for 400m, HD allows for 200m, and 3G supports up to 100m (theoretical values; actual distances may vary based on cable quality).
3. Wide voltage support: Equipped with a wide voltage interface, accepting DC5V~36V input (maximum power capacity of 2W).
4. Smart design: Employs pure hardware processing for seamless plug-and-play functionality and can automatically recognize various SDI signals. When a valid SDI signal is detected, the LED indicator lights up green. If there is no signal or the signal fails to meet standards, the LED indicator will turn off, helping engineers easily diagnose problems.
