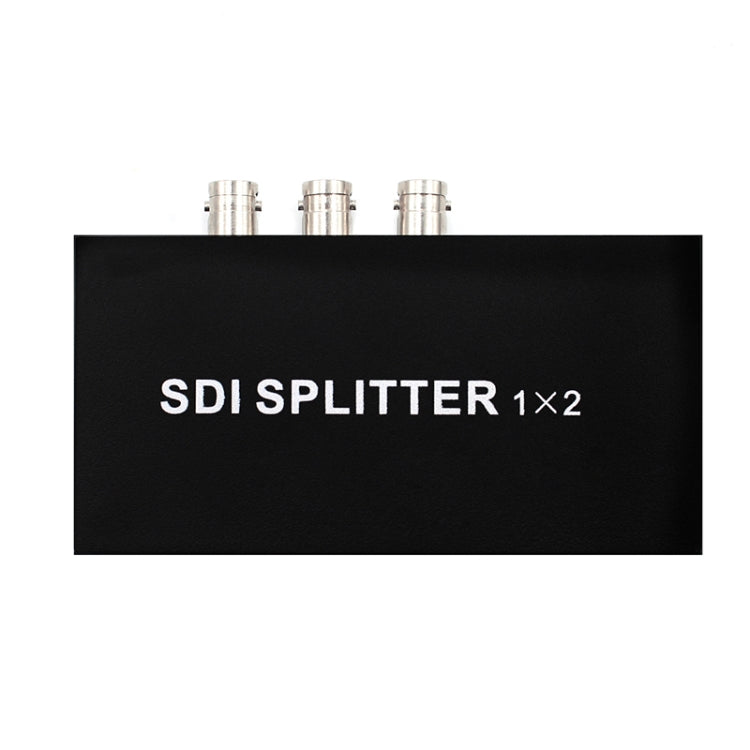

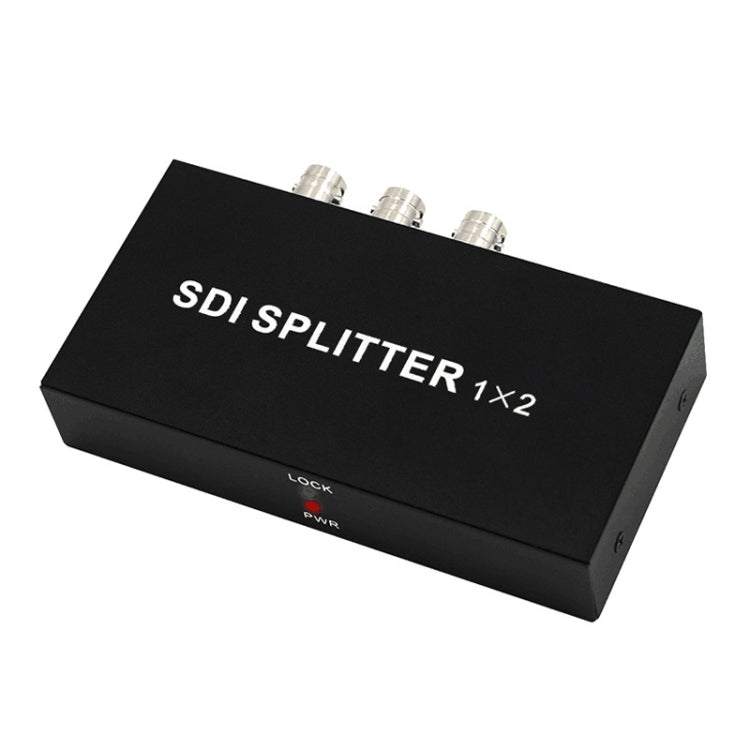

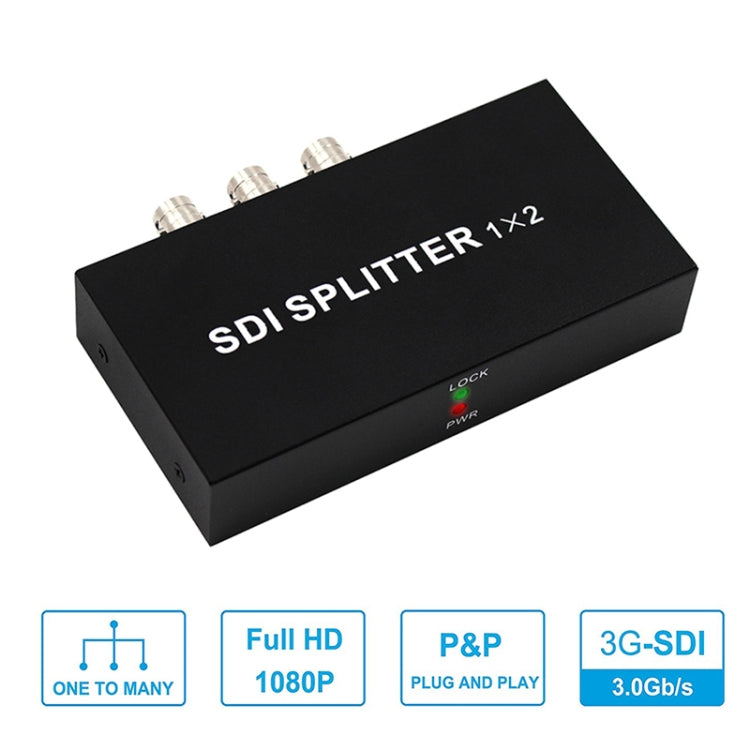

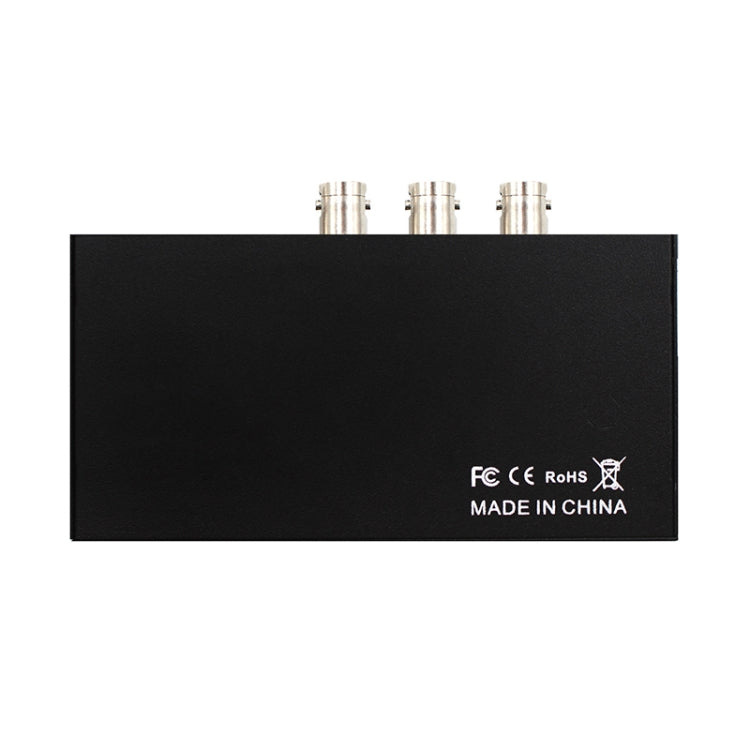

Lisslune | 1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (UK Plug)
Regular price£130.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
1. SDI output connections: BNC SDI×2, SDI×4, SDI×8
2. Compliance with SDI standards: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. Formats supported for SDI signals: SD-SDI, HD-SDI, and 3G-SDI
4. Transmission rates of SDI supported: 143-2970MB/S
5. Impedance for SDI: 75 Ohms
6. Supported resolutions: 480i at 60Hz / 576i at 50Hz / 720P at 50Hz / 720P at 60Hz / 1080i at 50Hz / 1080i at 60Hz / 1080P at 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
7. Amplitude of SDI signal output: 800mVp-p

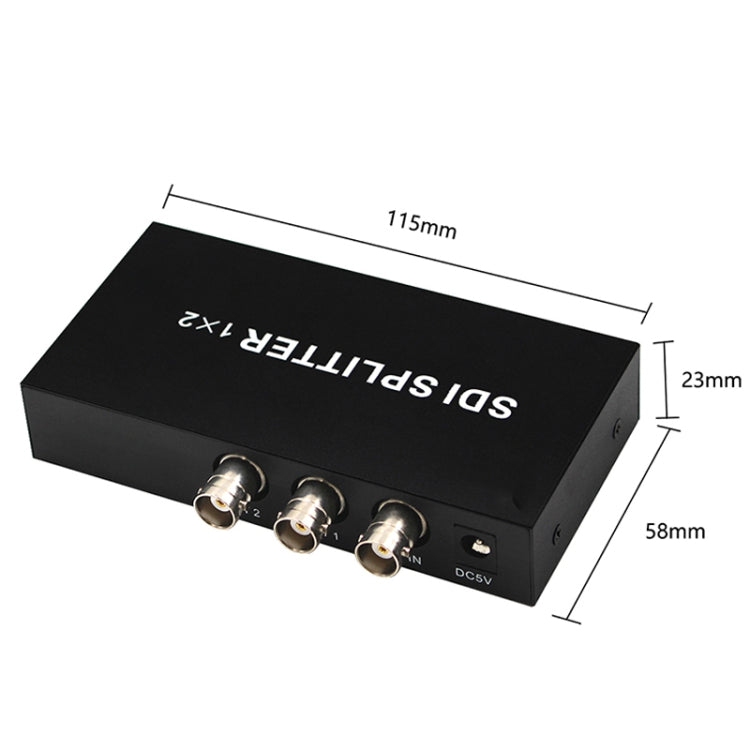

8. Measurements: 115 x 58 x 23mm

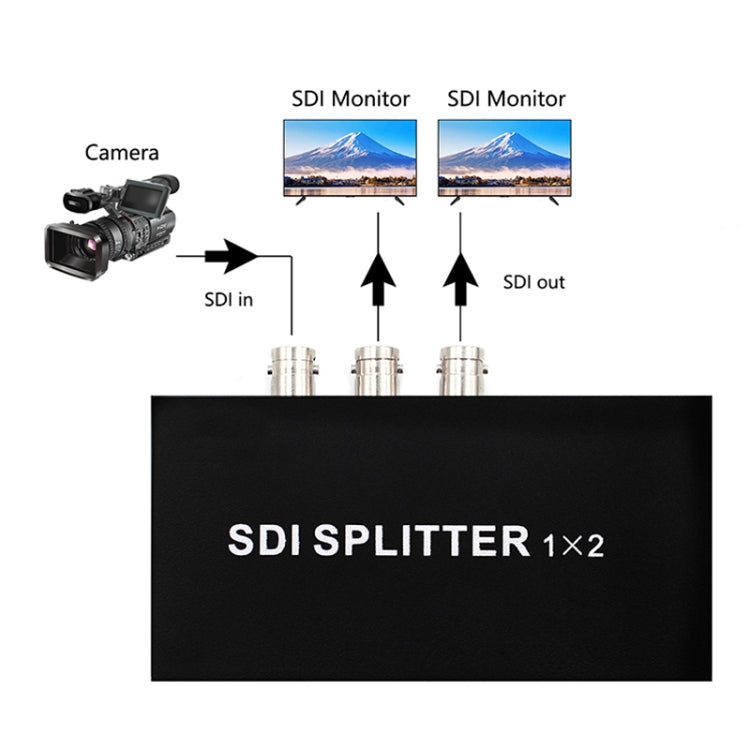

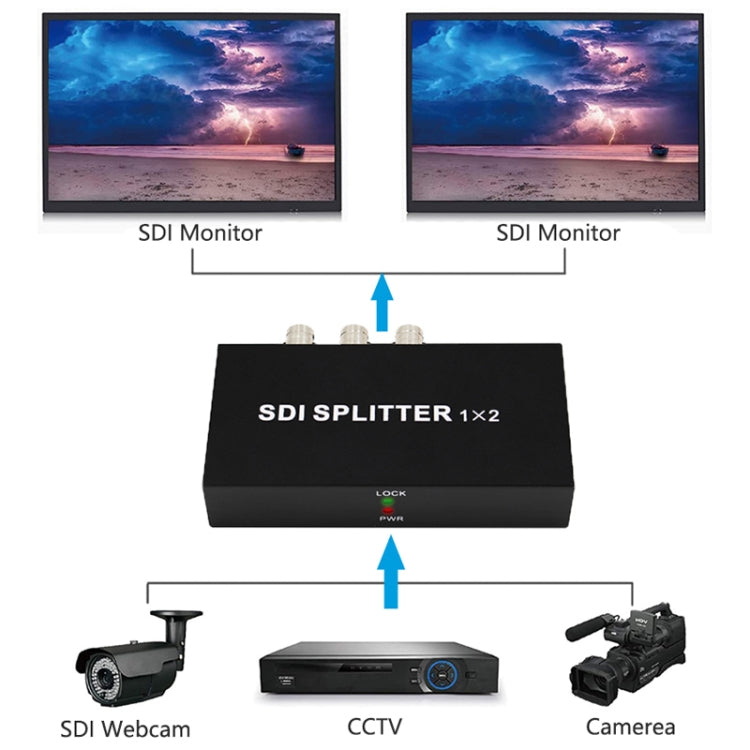

Steps for installation:
1. Connect the SDI input port to the SDI signal source with a coaxial cable
2. Link the SDI output to other display devices that accept SDI signal input
3. Turn on the host device, and the system will begin operation
Description of functions:
1. SDI distribution function: By following the three "Installation steps" outlined, connect the hardware, and the SDI splitter will operate as intended. This SDI splitter works with SD-SDI (270Mbps), HD-SDI (1.485Gbps), and full HD 3G-SDI (2.97 Gbps) video formats for distributing SDI video.
2. Expandability: This product supports cable lengths up to (Belden-1694A); for SDI input and output, the distances are: SD supports up to 400m, HD supports 200m, and 3G supports 100m (theoretical limits; actual lengths vary based on cable quality).
3. Wide voltage compatibility: Features an integrated wide voltage design, compatible with a power supply of DC5V~36V (with a maximum capacity of 2W).

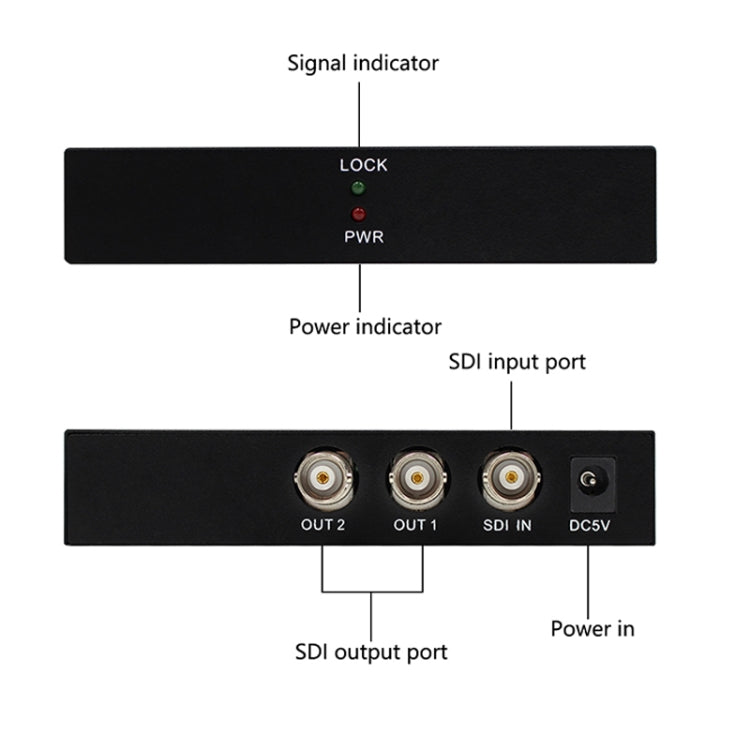

4. Smart design: Utilizes pure hardware processing for simple plug-and-play usage and can automatically recognize different SDI signals. When a valid SDI signal is detected, the LED indicator will illuminate in green. If there is no signal or if the signal fails to meet standards, the LED will turn off, making it easier for engineering customers to troubleshoot.
2. Compliance with SDI standards: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. Formats supported for SDI signals: SD-SDI, HD-SDI, and 3G-SDI
4. Transmission rates of SDI supported: 143-2970MB/S
5. Impedance for SDI: 75 Ohms
6. Supported resolutions: 480i at 60Hz / 576i at 50Hz / 720P at 50Hz / 720P at 60Hz / 1080i at 50Hz / 1080i at 60Hz / 1080P at 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
7. Amplitude of SDI signal output: 800mVp-p
8. Measurements: 115 x 58 x 23mm
Steps for installation:
1. Connect the SDI input port to the SDI signal source with a coaxial cable
2. Link the SDI output to other display devices that accept SDI signal input
3. Turn on the host device, and the system will begin operation
Description of functions:
1. SDI distribution function: By following the three "Installation steps" outlined, connect the hardware, and the SDI splitter will operate as intended. This SDI splitter works with SD-SDI (270Mbps), HD-SDI (1.485Gbps), and full HD 3G-SDI (2.97 Gbps) video formats for distributing SDI video.
2. Expandability: This product supports cable lengths up to (Belden-1694A); for SDI input and output, the distances are: SD supports up to 400m, HD supports 200m, and 3G supports 100m (theoretical limits; actual lengths vary based on cable quality).
3. Wide voltage compatibility: Features an integrated wide voltage design, compatible with a power supply of DC5V~36V (with a maximum capacity of 2W).
4. Smart design: Utilizes pure hardware processing for simple plug-and-play usage and can automatically recognize different SDI signals. When a valid SDI signal is detected, the LED indicator will illuminate in green. If there is no signal or if the signal fails to meet standards, the LED will turn off, making it easier for engineering customers to troubleshoot.
