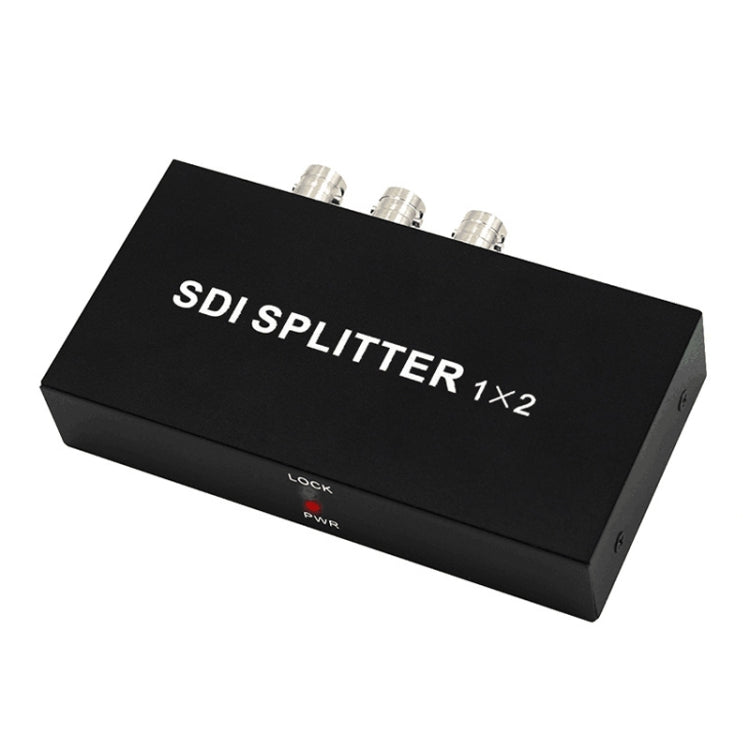

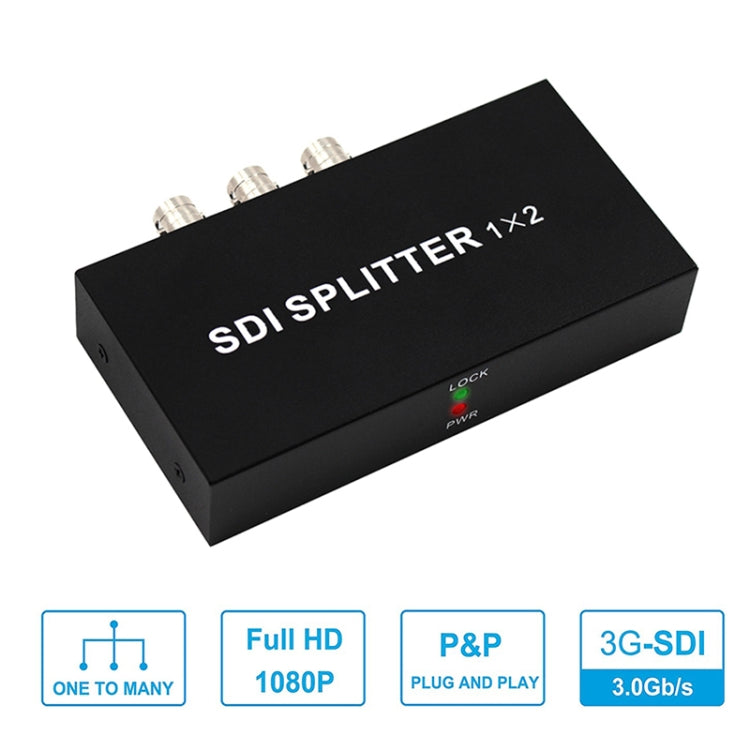

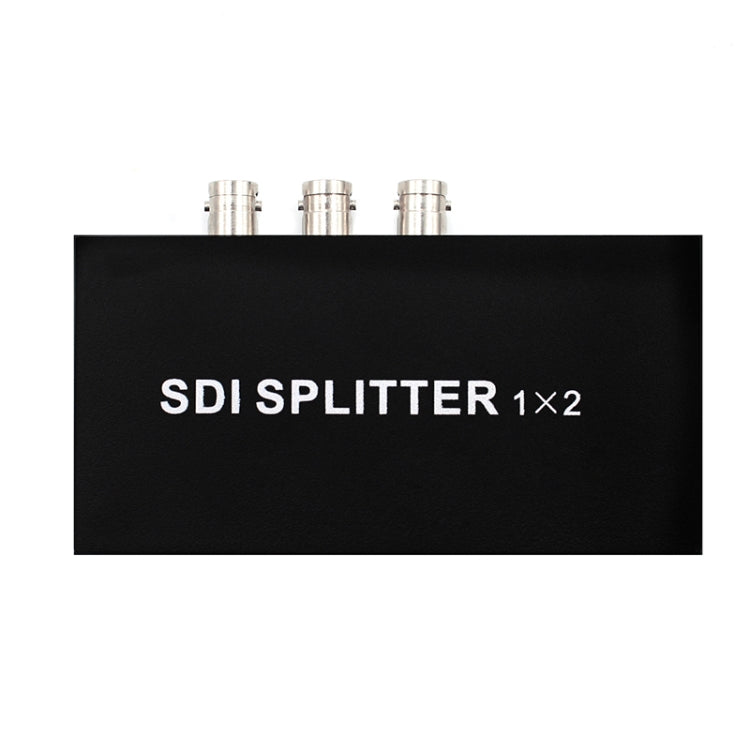

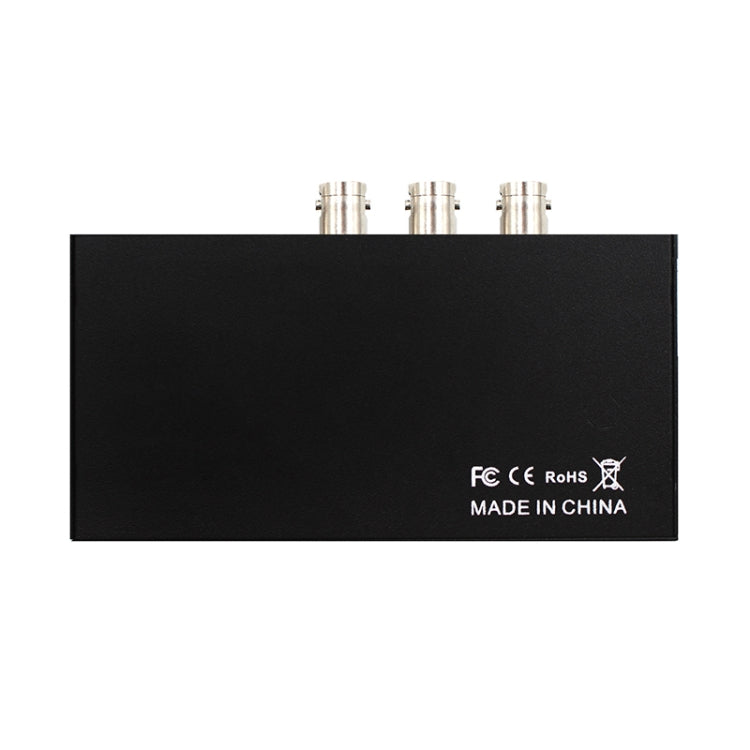

Lisslune | 1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (EU Plug)
Regular price£130.99
-
Free Shipping
-
30-Day Return Policy
-
50% OFF
Size chart
New Women's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Bust (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 32 | XXS | 4 | 75–80 | 56–61 | 81–86 | 36.5 |
| 34 | XS | 6 | 81–87 | 62–67 | 87–92 | 37.25 |
| 36 | S | 8 | 88–93 | 68–73 | 93–99 | 38 |
| 38 | M | 10 | 94–101 | 74–83 | 100–109 | 38.75 |
| 40 | L | 12 | 102–109 | 84–94 | 110–119 | 39.5 |
| 42 | XL | 14 | 110–119 | 95–105 | 120–129 | 40.3 |
| 44 | XXL | 16 | 120–129 | 106–117 | 130–139 | 42.5 |
| 46 | 3XL | 18 | 130–139 | 118–129 | 140–149 | 43 |
New Men's Body Measurements Size Chart
All measurements in cm.
| EU Size | Size (EU) | UK Size | Chest (cm) | Waist (cm) | Hips (cm) | Shoulder (cm) |
|---|---|---|---|---|---|---|
| 46 | S | 36 | 93–97 | 81–87 | 92–97 | 42.3 |
| 48 | M | 38 | 98–102 | 82–88 | 98–104 | 44.3 |
| 50 | L | 40 | 103–111 | 89–99 | 105–110 | 46.3 |
| 52 | XL | 42 | 112–121 | 100–110 | 111–116 | 47.3 |
| 54 | XXL | 44 | 122–131 | 111–121 | 117–124 | 48.3 |
| 56 | 3XL | 46 | 132–141 | 122–123 | 125–132 | 49.3 |
Size Fit
Small
True to size
Large
Shipped by Thu Apr 23
📦 Free UK Shipping
1. SDI Output Interface: BNC SDI×2 SDI×4 SDI×8
2. Supported SDI Standards: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. SDI Signal Format: SD-SDI HD-SDI 3G-SDI
4. SDI Rate Capabilities: 143-2970MB/S
5. SDI Impedance: 75 Ohm
6. Supported Resolutions: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. Output Signal Amplitude: 800mVp-p

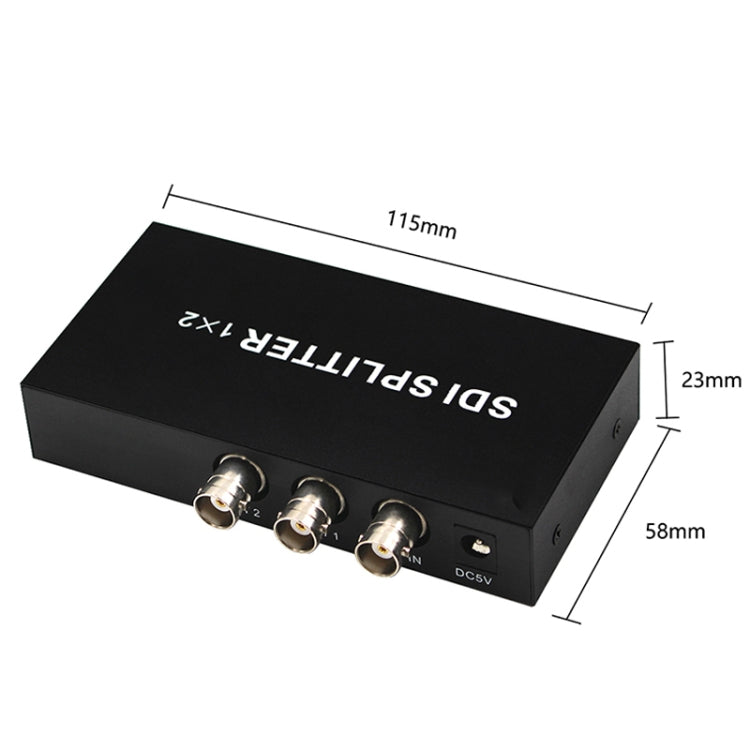

8. Dimensions: 115 x 58 x 23mm
Installation Instructions:

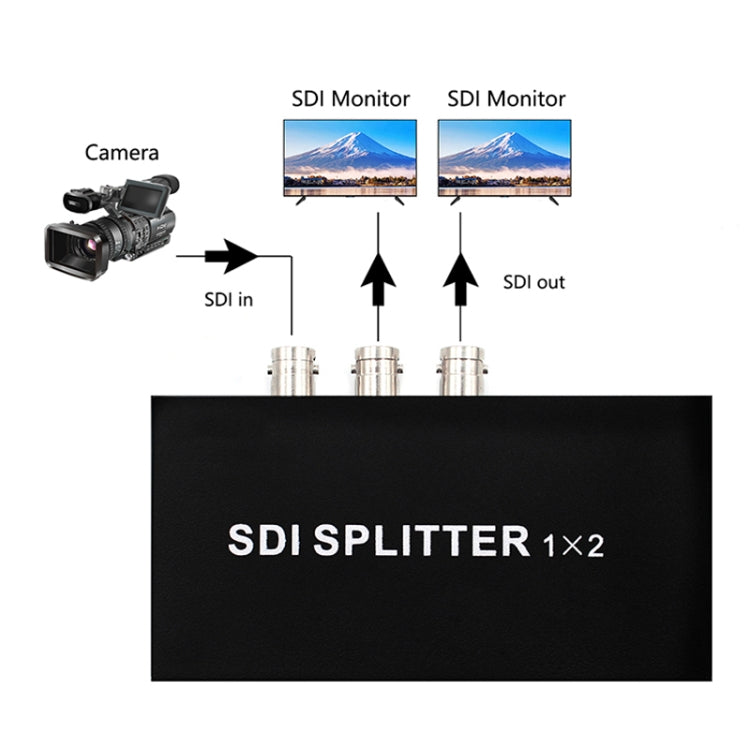

1. Link the SDI input interface to the SDI signal source using a coaxial cable.
2. Connect the SDI output to other devices that are compatible with SDI signal input.
3. Turn on the device to start its operation.
Functionality Overview:

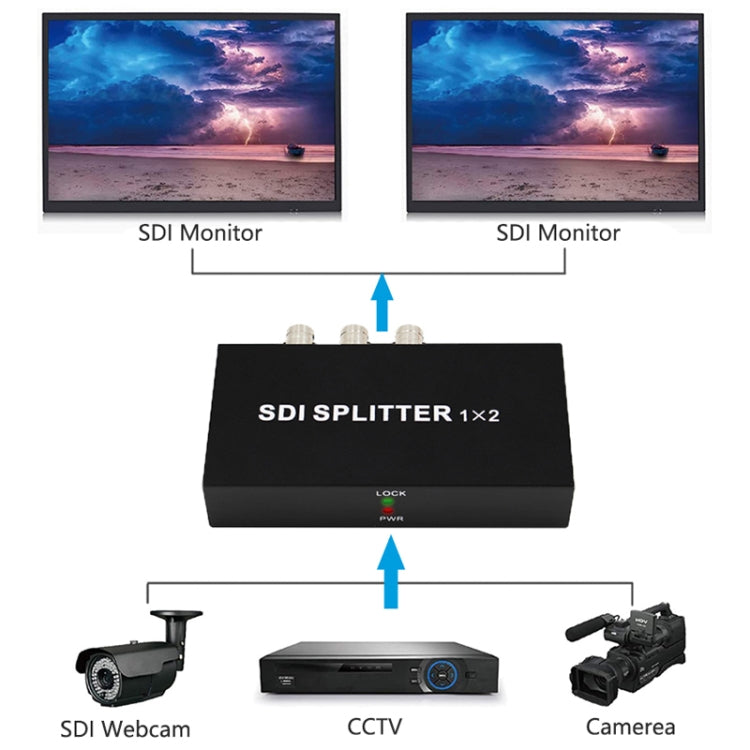

1. SDI Distribution Capability: Set up the hardware following the three "Installation Instructions," and the SDI splitter will function as intended. It is compatible with SD-SDI (270Mbps), HD-SDI (1.485Gbps), and full HD 3G-SDI (2.97 Gbps) video formats for distribution.
2. Extension Capability: This unit supports cable lengths up to (Belden-1694A); for SD, the input and output range reaches 400m, for HD it’s up to 200m, and for 3G it is 100m (these values are theoretical; actual distances may differ based on cable quality).
3. Wide Voltage Support: The integrated design accommodates a wide voltage range of DC5V~36V (with a maximum power of 2W).

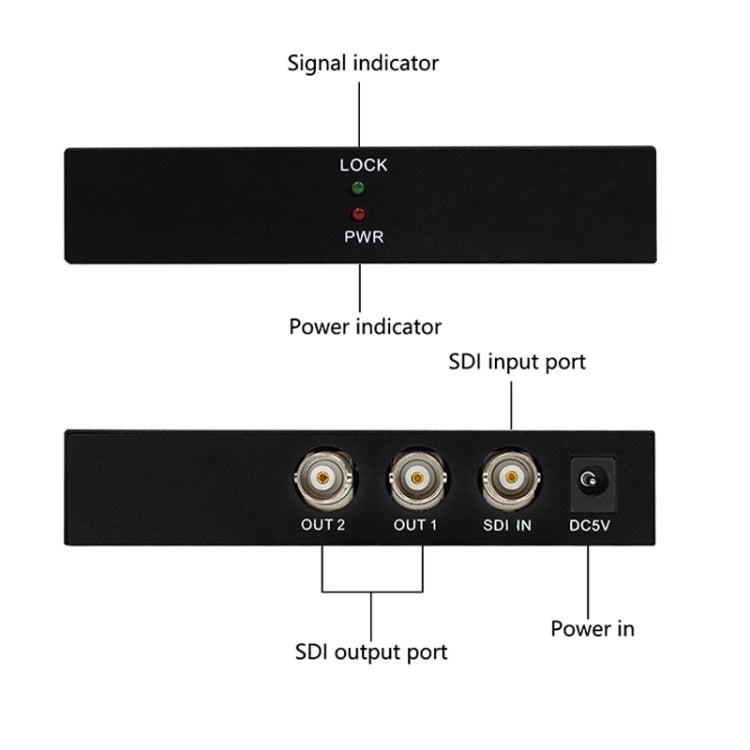

4. Smart Design: The device employs pure hardware processing for easy plug-and-play functionality and can auto-detect various SDI signals. When a usable SDI signal is detected, the LED indicator lights up green. Conversely, if there is no signal or if the signal is invalid, the LED will turn off, simplifying diagnostics for engineering users.
